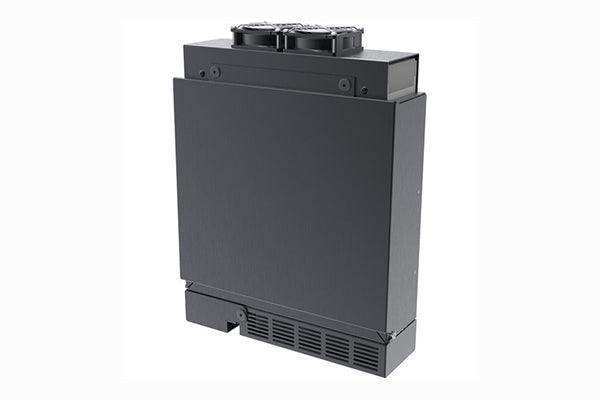

Peerless-AV XACE-01 – Xtreme Active Climate Enclosure (Small)

Product Overview

The Peerless-AV XACE-01 is a small Xtreme Active Climate Enclosure that protects media players, mini PCs, and other AV electronics deployed in harsh indoor or outdoor environments. This active climate enclosure uses a thermal electric system to both heat and cool the interior, keeping equipment dust-free, dry, and within the manufacturer's stated operating temperature range. With an IP66-rated design, it is suited to digital signage, smart city, and outdoor commercial deployments where exposed electronics would otherwise fail.

Product Description

Integrators deploying outdoor digital signage, kiosks, and remote AV systems need a way to keep sensitive electronics within their operating limits year-round. The XACE-01 addresses this with active thermal management rather than passive venting: an integrated thermal electric system engages cooling when the interior runs hot and heating when it runs cold, so the enclosed device stays protected through temperature swings. The IP66 rating seals out water, dust, moisture, and insects, making the enclosure appropriate for outdoor and washdown-prone locations. A removable internal mounting tray simplifies integration, letting the technician mount and wire the device on the bench before installing it in the enclosure, while dual internal electrical outlets supply power to the device and an accessory such as a media player or networking gear. The small XACE-01 accommodates devices up to 11.45" x 10.00" x 3.42" (291 x 253 x 87mm). For larger components, compare the rest of the Peerless-AV collection.

Key Features

• Active Thermal Management — A thermal electric system both heats and cools the interior to keep the enclosed electronics within the manufacturer's stated operating temperature range.
• IP66-Rated Sealed Design — The enclosure prevents the ingress of water, dust, moisture, and insects, protecting equipment in outdoor and exposed locations.
• Removable Internal Mounting Tray — The tray lifts out so the integrator can mount and cable the device on the bench before installing it, simplifying setup and service.
• Dual Internal Electrical Outlets — Two internal outlets power the primary device plus an accessory such as a media player or network appliance.
• VESA Mounting Compatibility — Accommodates 300 x 200 and 100 x 100mm VESA patterns for mounting compatible devices inside the enclosure.
• Indoor and Outdoor Rated — Built to protect electronics in both controlled and harsh environments where temperature and contaminants are a concern.

Typical Applications

• Outdoor digital signage and wayfinding
• Smart city and transportation deployments
• Retail exterior and drive-thru media players
• Hospitality outdoor AV installations
• Government and public space signage
• Stadium and entertainment venue electronics

Technical Specifications

Frequently Asked Questions

What is the maximum device size the XACE-01 holds?
The small XACE-01 accommodates electronic devices up to 11.45" x 10.00" x 3.42" (291 x 253 x 87mm). For larger devices, Peerless-AV offers a large model in the same line.

How does the enclosure manage temperature?
It uses a thermal electric system that actively cools the interior when it runs hot and heats it when it runs cold, keeping the enclosed device within its operating temperature range.

Can the XACE-01 be installed outdoors?
Yes. The IP66-rated sealed design protects against water, dust, moisture, and insects, making it suitable for outdoor and exposed installations.

How do I mount my device inside?
The enclosure includes a removable internal mounting tray and supports 300 x 200 and 100 x 100mm VESA patterns, so the device can be mounted and wired on the bench before installation.

Can it power more than one device?
Yes. Dual internal electrical outlets allow you to power the primary device plus an accessory such as a media player or network appliance.

What is it typically used for?
It is commonly used to protect media players, mini PCs, and networking equipment in outdoor digital signage, smart city, transportation, and other harsh-environment AV deployments.
