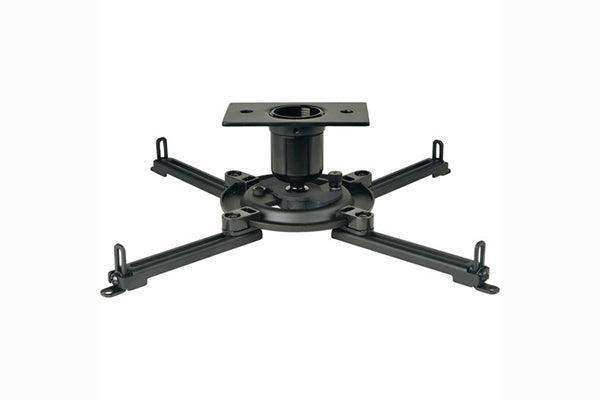

Peerless-AV PJF2-UNV – Universal Vector Pro II Projector Mount (Black)

PJF2-UNV – Universal Vector Pro II Projector Mount (Black)

The Peerless-AV PJF2-UNV is a universal ceiling projector mount with a Vector Pro II head offering full roll, pitch, and yaw adjustment, compatible with virtually any LCD projector whose mounting holes are spaced up to 15.63 inches apart.

Product Description

The PJF2-UNV pairs a structural ceiling plate with the Vector Pro II projector mount head and a Universal Spider Adapter Plate, providing a complete ceiling mounting solution for a wide range of commercial projectors. The universal adapter is specifically designed to handle mounting hole patterns up to 15.63 inches apart, covering the vast majority of LCD and DLP projectors used in conference rooms, classrooms, and auditoriums.

Three axes of adjustment—±15 degrees of roll, ±15 degrees of pitch, and ±180 degrees (full 360-degree) yaw—give the installer full control over image alignment without physically repositioning the ceiling plate. Once aligned, all axes lock securely. A cord access hole through the center of the mount routes signal and power cables neatly through the ceiling or NPT pipe column, reducing visible cable runs.

The mount connects via industry-standard 1.5-inch NPT pipe or 0.5-inch threaded rods for variable drop heights, and optional Armor Lock accessories provide theft deterrence in high-traffic or unsupervised spaces. The quick-release mechanism allows the projector to be detached for bulb replacement or service without disturbing the ceiling plate alignment. The silver variant is available as PJF2-UNV-S. Available from Creation Networks at creationnetworks.net.

Key Features

• Universal Spider Adapter Plate accommodates projectors with mounting holes spaced up to 15.63" (39.7 cm) apart.
• Vector Pro II mount head provides ±15° roll, ±15° pitch, and full 360° yaw adjustment for precise image alignment.
• Cord access hole through the mount center routes cables cleanly through the ceiling or NPT pipe.
• Spring-loaded quick-release mechanism allows projector removal for service while retaining registration.
• Connects via 1.5" NPT pipe or 0.5" threaded rod for flexible ceiling drop configurations.
• Optional Armor Lock Plus Security Cable accessories (sold separately) deter theft in unsupervised spaces.
• Structural ceiling plate included for secure flush mounting to the ceiling structure.
• Brass inserts and security screw covers protect mount hardware from tampering and stripping.

Technical Specifications
