Peerless-AV IM760PU – In-Wall Mount for 32-71 Inch Displays

Product Overview

The Peerless-AV IM760PU is a universal in-wall TV mount that recesses the mounting hardware between standard 16" wood studs so flat panel displays sit nearly flush to the wall. Built for residential and commercial AV installations alike, this articulating in-wall display mount supports 32" to 71" screens up to 200 lb and extends the arm over 19" for repositioning. Its concealed in-wall box and decorative trim ring deliver the clean, low-profile finish integrators specify for conference rooms, lobbies, and digital signage.

Product Description

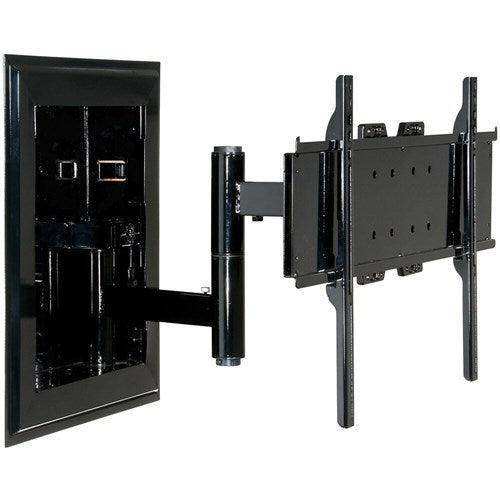

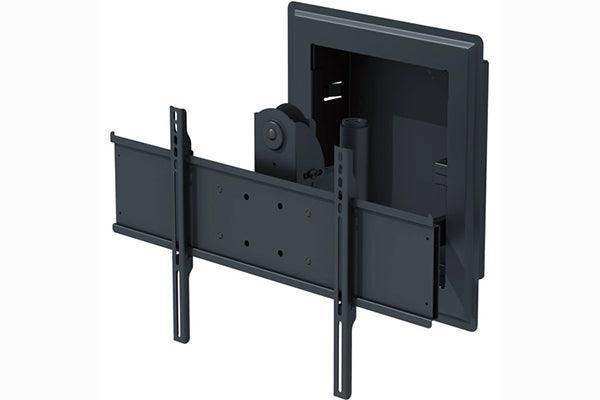

The IM760PU combines a recessed in-wall box with a dual-stud articulating arm, letting installers tuck the entire mechanism into the wall cavity for a virtually no-profile home position. Stud-locating tabs index the box to 16" stud centers, while removable gang box and cable management access plates simplify routing of power and signal cabling during a commercial fit-out. The included universal adaptor plate fits display mounting hole patterns up to 730 x 433mm (28.75" x 17.05"), and the assembly can be inverted to position the display to the right or left of the box to suit the room layout. With +/- 7° of roll and 45° of swivel in each direction, the mount allows post-installation leveling and angling for optimal sightlines. This makes the IM760PU a practical choice for AV system designers specifying in-wall display mounts for huddle rooms, executive offices, and retail environments. Compare it with other options in the Peerless-AV collection at Creation Networks to match the mount to your display and wall construction.

Key Features

• Recessed In-Wall Box — Houses the mount inside a standard wall cavity so the display sits nearly flush for a clean, low-profile appearance.
• Articulating Arm — Extends the display over 19" from the wall for repositioning and access to connections behind the screen.
• 200 lb Load Capacity — Supports flat panel displays from 32" to 71" weighing up to 200 lb for commercial-grade reliability.
• Universal Adaptor Plate — Fits mounting hole patterns up to 730 x 433mm (28.75" x 17.05"), covering common VESA patterns from 200 x 100 to 600 x 400.
• Stud-Locating Tabs — Index the in-wall box snugly between 16" wood stud centers for fast, accurate placement.
• Invertible Design — The assembly can be flipped to position the display to the right or left of the box to match the room.
• Integrated Cable Management — Removable gang box and cable access plates keep power and signal wiring organized and concealed.
• Decorative Trim Ring — Included trim ring finishes the opening for a clean, professional installation.
• Roll and Swivel Adjustment — Provides +/- 7° of roll and up to 45° swivel each direction for post-installation leveling and angling.

Typical Applications

• Conference rooms and boardrooms requiring a flush, low-profile display
• Executive offices and huddle rooms
• Retail and hospitality environments
• Lobbies and reception areas using digital signage
• Commercial meeting spaces and multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What size and weight of display does the IM760PU support?
It supports flat panel displays from 32" to 71" weighing up to 200 lb.

Will it fit my display's mounting holes?
The included universal adaptor plate fits mounting hole patterns up to 730 x 433mm (28.75" x 17.05"), covering common VESA patterns from 200 x 100 through 600 x 400.

What wall construction is required?
The in-wall box is designed to install between 16" wood stud centers, using stud-locating tabs for accurate placement.

How far does the display extend from the wall?
The articulating arm extends the display over 19" from the home position, allowing repositioning and access to rear connections.

How are cables managed?
Removable gang box and cable management access plates allow power and signal cabling to be routed and concealed within the wall cavity.

Is it TAA compliant for government projects?
Yes. The IM760PU is TAA compliant, RoHS compliant, and made in the United States.

What warranty is included?
Peerless-AV provides a 5-year limited warranty on the IM760PU.
