Peerless-AV SF680-HUB Universal Flat Wall Mount for Microsoft Surface Hub (Black)

SF680-HUB – Peerless-AV Universal Flat Wall Mount for Microsoft Surface Hub 55" and 84" (Black)

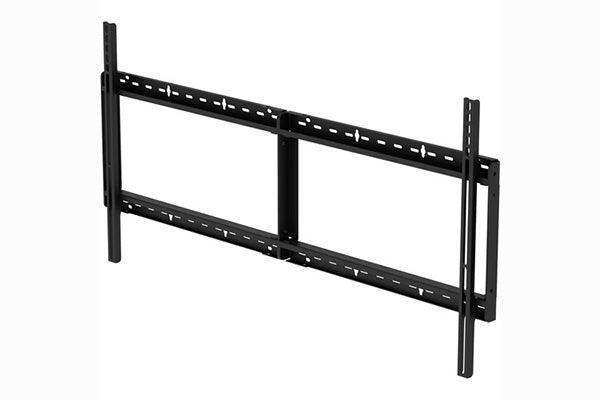

The Peerless-AV SF680-HUB is a purpose-designed flat wall mount for the Microsoft Surface Hub 55" and 84" interactive displays, combining a low-profile installation with an open wall plate that maximizes electrical and cable management access behind the display.

Product Description

The SF680-HUB addresses the specific mounting requirements of the Microsoft Surface Hub, an interactive display used in corporate collaboration environments that demands a secure, low-profile wall mount with practical installation features suited to busy commercial AV deployment schedules. The mount holds the display only 2.13" from the wall, providing a flat, professional appearance in conference rooms and collaborative spaces.

The open wall plate design is a significant practical advantage: it preserves nearly total access to the wall surface behind the display for electrical outlets, data ports, and cable management pathways. This is important for Surface Hub installations where power and data routing to the back of the display must be planned and executed cleanly, and where future access for maintenance or cable changes needs to remain possible without demounting the display.

Installation is simplified by the Hook-and-Hang system, which allows a single installer to complete the mounting process without requiring a second person to support the display during hanging. The Easy-Glide adapters hook onto the wall plate to further simplify the process. Anti-theft security hardware prevents unauthorized display removal once installed, meeting the security requirements of shared corporate spaces.

Key Features

• Specifically designed for Microsoft Surface Hub 55" and 84" interactive displays, with universal compatibility for displays up to 350 lb with patterns up to 1256 x 608mm.
• Low-profile design holds the display only 2.13" from the wall, maintaining the flat, integrated appearance appropriate for corporate collaboration environments.
• Anti-theft security hardware prevents unauthorized display removal, meeting the security requirements of shared corporate spaces.
• Open wall plate design provides nearly total wall access behind the display for electrical outlets, data ports, and cable routing without requiring display removal.
• Hook-and-Hang system allows a single installer to complete the mounting process, reducing labor requirements compared to conventional large-display mounting methods.
• Easy-Glide adapters hook onto the wall plate to further simplify installation alignment and reduce the risk of installation errors.
• Compatible with wood studs, concrete, cinder block, and metal studs (with separately sold metal stud accessory), covering the full range of commercial wall construction types.

Typical Applications

The SF680-HUB is designed specifically for corporate conference rooms, collaboration spaces, training rooms, and executive boardrooms where the Microsoft Surface Hub is used as the primary interactive collaboration display. Its security hardware, low profile, and cable management access features make it the standard mounting solution for Surface Hub deployments in professional commercial environments.

Technical Specifications

Frequently Asked Questions

Is the SF680-HUB compatible only with the Microsoft Surface Hub, or will it work with other large displays?

The SF680-HUB is specifically designed for the Microsoft Surface Hub 55" and 84", but its universal design supports any display up to 350 lb with mounting patterns up to 1256 x 608mm (non-standard) or 1200 x 600mm (standard VESA). Verify the display’s mounting pattern and weight before purchase.

Can one person install the SF680-HUB alone?

Yes. The Hook-and-Hang system and Easy-Glide adapters are designed to allow a single installer to mount the display without requiring a second person to support the display during the hanging process, which is particularly valuable given the size and weight of the Surface Hub.

What wall construction types does the SF680-HUB support?

The SF680-HUB can be installed into wood studs, concrete, and cinder block. Installation into metal studs is also supported with a separately sold metal stud accessory. This covers the full range of wall construction types found in commercial office and institutional buildings.
