Peerless-AV PLAV60-UNL – Universal Articulating Wall Arm for 37" to 95" Displays with Security

PLAV60-UNL – Peerless-AV Universal Articulating Wall Arm with Vertical Adjustment for 37" to 95" Displays

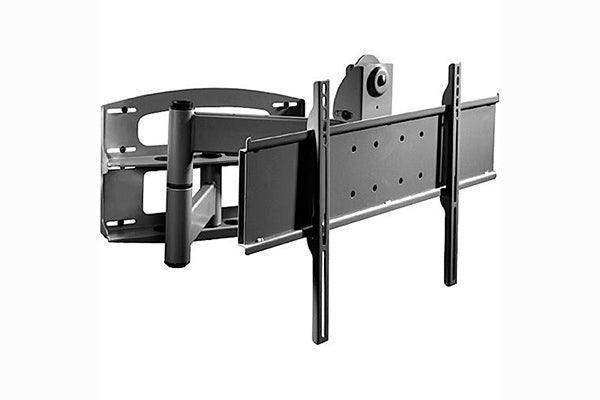

The Peerless-AV PLAV60-UNL is a universal articulating wall arm for 37" to 95" flat panel displays, extending up to 31.2" from the wall with three pivot points, 180-degree swivel, plus/minus 7-degree roll, and plus/minus 1-inch vertical adjustment for precise positioning in commercial AV installations.

Product Description

The Peerless-AV PLAV60-UNL Articulating Wall Arm with Vertical Adjustment is a full-featured mount designed for flat panel LCD and plasma displays in lobbies, hotel rooms, boardrooms, and home theaters where flexible display positioning is required. The arm extends up to 31.2" from the wall and provides three pivot points with up to 180 degrees of total swivel, allowing the display to be directed toward multiple seating positions or pulled out for rear-panel access.

Self-lubricating bushings at each pivot point provide smooth positioning and adjustment throughout the service life of the installation without requiring maintenance. The five horizontal arm positions at 2.6-inch centers give installers flexibility in lateral screen placement relative to the wall plate, which is useful when the wall plate cannot be positioned exactly where the screen needs to be centered. Vertical adjustment of plus or minus 1 inch, accessible from behind the screen, allows minor alignment corrections after the display is hung.

Tilt is adjustable from +10 to -5 degrees, and plus or minus 7 degrees of roll allows the display to be leveled horizontally if the wall structure is not perfectly plumb. The universal mount interface adapts to screens with mounting hole patterns up to 28.7" x 17", covering a broad range of commercial display models. An included mesh cord sheath and cable ties manage cables along the arm, while the mount is compatible with wood stud, concrete, and metal stud wall structures (with the optional metal stud accessory).

Key Features

• Arm extends up to 31.2" from the wall, providing clearance for rear-panel access and flexible viewing angle positioning in commercial spaces.
• Three pivot points with up to 180-degree total swivel allow the display to be directed toward a wide range of viewing positions from a single wall mount.
• Plus or minus 1-inch vertical adjustment accessible from behind the screen corrects minor alignment issues after the display is hung without requiring wall plate repositioning.
• Tilt adjustment of +10 to -5 degrees for vertical viewing angle optimization relative to seating or floor level.
• Plus or minus 7 degrees of roll for horizontal display leveling when the wall surface or structure has minor variations from plumb.
• Universal mount interface accommodates screens with mounting hole patterns up to 28.7" x 17", supporting a broad range of 37" to 95" commercial display models.
• Five horizontal arm positions at 2.6-inch centers provide flexible lateral screen placement options relative to the wall plate position.
• Included mesh cord sheath and cable ties manage and conceal cables along the arm; compatible with wood stud, concrete, and metal stud wall structures.
• Self-lubricating bushings at each pivot provide smooth, consistent operation throughout the service life of the installation without periodic maintenance.

Typical Applications

The PLAV60-UNL is appropriate for hotel guest rooms, corporate boardrooms, hospitality suites, and lobby display installations where a full-extension articulating arm is required to bring the display out from the wall for viewing or maintenance access. It is also used in educational settings, medical facilities, and retail environments where display repositioning is required to serve different audiences or purposes across the day.

Technical Specifications

Frequently Asked Questions

How far does the PLAV60-UNL arm extend from the wall?

The arm extends up to 31.2" from the wall when fully extended. This provides enough clearance for rear-panel access to display connections without unmounting the screen, and allows the display to be angled toward seating positions that are not directly in front of the wall plate.

What wall types is the PLAV60-UNL compatible with?

The mount installs on wood stud walls and concrete. It is also compatible with metal stud walls when used with the appropriate metal stud accessory, which is available separately.

What cable management is included with the PLAV60-UNL?

The mount includes a mesh cord sheath and cable ties that route and conceal cables along the arm structure. This keeps the installation looking organized whether the arm is extended or retracted against the wall.
