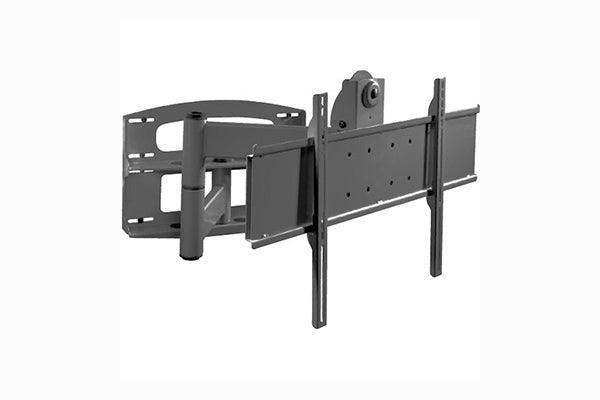

Peerless-AV PLAV70-UNLP – Articulating Dual Wall Arm Mount

Product Overview

The Peerless-AV PLAV70-UNLP is a heavy-duty articulating wall mount built for large-format displays in commercial AV environments. This dual-arm mount supports 42" to 95" screens up to 200 lb (91 kg) and combines full articulation with tilt, swivel, roll, and vertical adjustment for precise positioning. Engineered for integrators and facilities teams, it pulls displays away from the wall for service access while keeping cabling managed through the arms.

Product Description

The PLAV70-UNLP uses a dual articulating arm design that lets a single display swing, extend, tilt, and pivot to the ideal viewing angle, making it well suited to conference rooms, lobbies, and digital signage where viewing positions change throughout the day. Built-in vertical adjustment of up to 0.79" in each direction lets installers fine-tune screen height after the wall plate is set, and an integrated roll adjustment keeps the display level across the full range of arm travel. Cable management channels and mesh sleeves route signal and power cleanly along the arms, supporting a finished installation in client-facing spaces. The wall plate ships with hardware for wood stud, wood beam, solid concrete, and cinder block construction, giving integrators flexibility across building types. The "P" designation adds security adapter hardware to deter tampering and unauthorized removal in public and semi-public deployments. For other Peerless-AV mounting solutions, browse the Peerless-AV collection at Creation Networks.

Key Features

• Dual Articulating Arm — Extends, swivels, and tilts a single large-format display for flexible viewing angles in active commercial spaces.
• 200 lb Load Capacity — Supports 42" to 95" displays weighing up to 200 lb (91 kg) for use with heavy professional panels.
• Vertical Adjustment — Provides up to 0.79" of post-installation height adjustment in each direction for accurate alignment.
• Roll Adjustment — Allows the display to be leveled manually at any arm position to correct sideways lean.
• Integrated Cable Management — Mesh sleeves and channels route power and signal cabling along the arms for a clean finish.
• Security Adapter Hardware — The -P configuration includes security fasteners that deter tampering and theft in public-facing installations.
• Multi-Surface Mounting — Includes hardware rated for wood stud, wood beam, solid concrete, and cinder block walls.

Typical Applications

• Conference rooms and boardrooms
• Corporate lobbies and reception areas
• Retail and hospitality digital signage
• Training rooms and multi-purpose spaces
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What size and weight displays does the PLAV70-UNLP support?
It supports flat-panel displays from 42" to 95" weighing up to 200 lb (91 kg).

What adjustments does this mount offer?
The dual articulating arm provides extension, swivel, and tilt, plus roll adjustment to keep the display level and up to 0.79" of vertical adjustment in each direction.

What does the -P designation mean?
The -P configuration includes security adapter hardware that deters tampering and unauthorized removal, which is useful in public or semi-public installations.

What wall types can it be installed on?
The mount ships with hardware for wood stud, wood beam, solid concrete, and cinder block walls. Metal stud installations require a separate Peerless-AV accessory kit.

Is this mount rated for outdoor use?
No. The PLAV70-UNLP is designed for indoor use only.

What warranty is included?
Peerless-AV provides a limited 5-year warranty on this mount.
