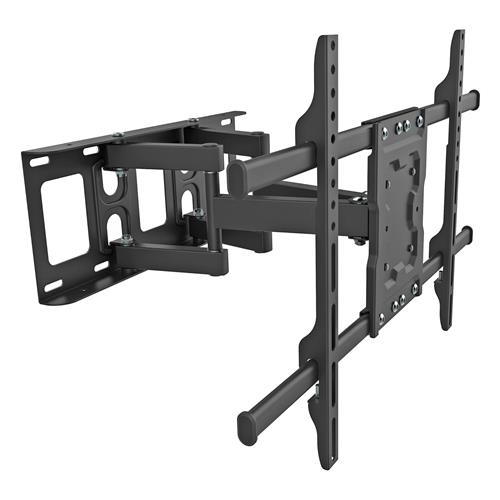

Peerless-AV TVA775 – TruVue Articulating Wall Mount 50-75"

What is the Peerless-AV TVA775?

The Peerless-AV TVA775 is a TruVue full-motion articulating wall mount built for 50" to 75" displays, giving integrators tilt and extension adjustment for commercial installs where the display needs to swing out from the wall for viewing angle or cable access. It carries a 99 lb weight capacity and VESA compliance up to 600 x 400mm, covering the standard range of commercial 50"-75" flat panel displays used in conference rooms and meeting spaces. As an articulating wall mount, the TVA775 is the right spec whenever a fixed or basic tilt mount doesn't give a room enough flexibility in extension or viewing angle.

What does the Peerless-AV TVA775 do?

The TVA775 extends a 50" to 75" display up to 14.40" from the wall, or retracts it to just 2.75" for a near-flush profile when full extension isn't needed. That range lets integrators position a display close to the wall for a clean look in day-to-day use, then pull it out when the room needs better cable access or a wider swivel angle for viewing from an angle rather than straight-on. Tilt adjustment of +12°/-3° is set using an included wrench, giving installers a simple, tool-based way to dial in the exact viewing angle once the display is hung, which matters in rooms where the display sits above eye level or is viewed from a lower seated position. At a 99 lb weight capacity and VESA compatibility up to 600 x 400mm, the TVA775 covers the great majority of commercial 50"-75" displays without needing a heavier-duty mount. The articulating arm design is a common upgrade over a fixed or simple tilt mount in conference rooms where the display needs to face different points around a table, or in retail and lobby digital signage where the panel benefits from being angled toward foot traffic rather than mounted flush and perpendicular to the wall. For AV integrators speccing a mid-size commercial display that needs real extension and tilt range rather than a fixed mount, the TVA775 delivers that flexibility in a single wall-mount SKU.

Key Features

• Extends up to 14.40" from the wall — pulls the display out for cable access and wider viewing angles, or retracts to 2.75" for a near-flush profile.
• +12°/-3° tilt adjustment — set with an included wrench for a precise, locked viewing angle.
• 99 lb weight capacity — rated for standard commercial 50"-75" flat panel displays.
• VESA compliant up to 600 x 400mm — covers the majority of commercial displays in this size range.
• Articulating arm design — lets the display angle toward different points in a room rather than sitting fixed and perpendicular to the wall.

Technical Specifications
