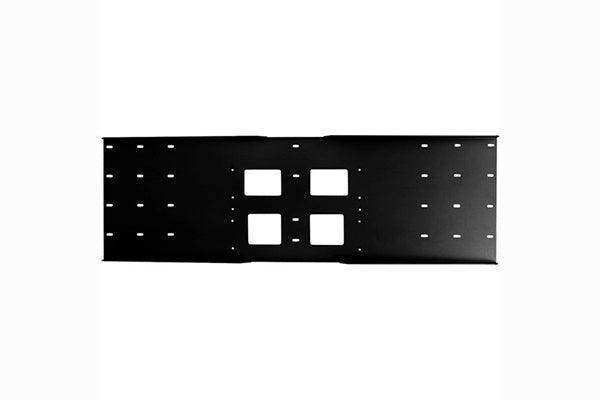

Peerless-AV WSP724 – Triple Metal Stud Wall Plate for PLA Series, 16/20/24 In Centers

WSP724 – Triple Metal Stud Wall Plate for PLA Series Mounts, 16/20/24 In Stud Centers

The Peerless-AV WSP724 is a triple metal stud wall plate constructed from 12-gauge cold-rolled steel that spans three metal stud centers at 16-, 20-, or 24-inch spacing, providing a high-strength attachment base for Peerless-AV PLA series flat panel wall mounts with integrated cable management ports.

Product Description

The WSP724 is engineered to solve one of the most common challenges in commercial flat panel installation: attaching a heavy display mount securely to a metal stud wall when stud spacing and display placement do not naturally align. By spanning three metal studs, the WSP724 provides a substantially larger and more rigid attachment footprint than a standard single-stud bracket, which is especially important for large displays where leverage and dynamic load — from adjustment or accidental impact — place higher demands on the wall attachment.

The plate uses special togglers designed specifically for metal stud wall attachment, along with 1/4-20 x 1/2-inch screws and washers to secure Peerless-AV PLA series TV wall mounts directly to the plate. The 12-gauge cold-rolled steel construction provides the rigidity and load distribution needed for confident installation in commercial environments, while the cable management ports built into the plate give installers dedicated pathways for routing HDMI, DisplayPort, and control cabling without additional wall penetrations.

With more than 40 years of experience in the mounting industry, Peerless-AV engineered the WSP724 to address both structural performance and installation practicality in equal measure. The result is a wall plate that professional AV integrators can specify confidently for large-format display installations on metal stud walls in offices, conference rooms, retail environments, and educational facilities.

Key Features

• Triple metal stud design spans three studs at 16-, 20-, or 24-inch centers for a wide, high-strength attachment footprint.
• 12-gauge cold-rolled steel construction provides the structural rigidity required for large display installations.
• Compatible with Peerless-AV PLA series TV wall mounts using included 1/4-20 x 1/2-inch screws and washers.
• Special togglers for metal stud attachment are included for a complete, hardware-ready installation.
• Integrated cable management ports provide organized routing for signal and control cabling through the wall.
• Covers all three standard commercial metal stud spacings: 16, 20, and 24 inches on center.
• Allows PLA series mounts to be positioned independently of stud layout for optimal display placement.
• Designed for commercial AV installations in offices, conference rooms, retail, and institutional settings.
