Peerless-AV DST660 – Tilt Wall Mount with Media Device Storage

DST660 – Peerless-AV Tilt Wall Mount with Media Device Storage

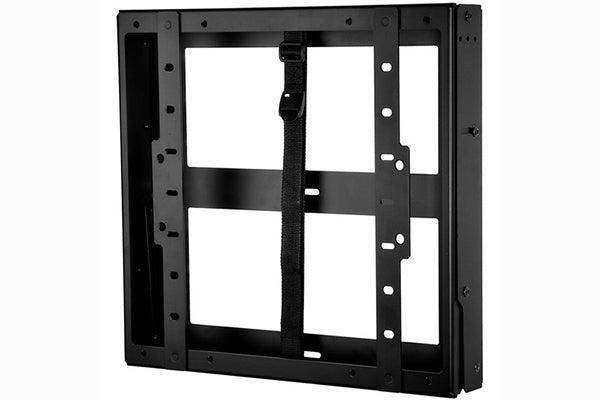

The Peerless-AV DST660 is a tilt wall mount designed for 40 to 60" displays that integrates a built-in media device storage compartment, making it a practical single-bracket solution for commercial AV installations where a dedicated player, computer, or controller must live behind the screen.

Product Description

The DST660 supports displays weighing up to 125 lb and accepts VESA mounting hole patterns from 200 x 100mm up to 400 x 400mm. The mount accommodates both portrait and landscape display orientations, giving installers flexibility when planning a signage layout.

Tilt adjustment is available as a continuous range from 0 to 10° or can be locked into fixed positions at 0°, 3.5°, and 7°, allowing the integrator to fine-tune the viewing angle during commissioning and lock it in place. A pair of integrated prop bars hold the display open while providing unobstructed access to the storage compartment, eliminating the need to remove or reposition the screen for routine media player maintenance.

The built-in storage area measures 12 x 13 x 2.4" and accepts slim media players, dedicated computers, and graphics drivers. Included security hardware deters tampering, making this mount appropriate for unsupervised public-facing environments. When a VESA pattern larger than 400 x 400mm is required, an optional adapter plate is available separately.

Key Features

• Integrated media device storage — Accepts computers, media controllers, and graphics drivers up to 12 x 13 x 2.4", keeping all components concealed behind the display.
• Prop bar access — Built-in prop bars hold the display open for access to the storage compartment without disconnecting or repositioning the screen.
• Continuous and fixed tilt — Provides a continuous tilt range of 0–10° as well as fixed positions at 0°, 3.5°, and 7° for precise angle control.
• Wide VESA compatibility — Supports mounting hole patterns from 200 x 100mm up to 400 x 400mm, covering the majority of commercial flat-panel displays in this size range.
• Portrait and landscape orientation — The mount accepts displays in either orientation, supporting standard digital signage layout requirements.
• Bottom-access media removal — The media player can be removed from the bottom of the mount for replacement or maintenance without disturbing the display.
• Security hardware included — Tamper-resistant fasteners are included in the package to deter unauthorized access in public installations.
• Up to 125 lb display capacity — The all-steel construction supports commercial-grade displays up to 125 lb in the 40–60" size class.

Typical Applications

The DST660 is well suited for digital signage deployments in retail environments, corporate lobbies, and transportation hubs where a media player must be co-located with the display but wall space for a separate enclosure is unavailable. It is equally appropriate for command-and-control rooms and education classrooms where a dedicated computer drives the screen and periodic maintenance access is required without disrupting the installation.

Technical Specifications

Frequently Asked Questions

What size media player fits in the DST660 storage compartment?

The compartment is designed for accessories up to 12 x 13 x 2.4", which covers most thin-profile media players, mini PCs, and graphics drivers used in commercial digital signage deployments.

Can I access the media player without removing the display?

Yes. The DST660 includes prop bars that hold the display in an open position, and the media player can also be removed from the bottom of the mount independently, so routine maintenance or replacements do not require uninstalling the display.

Does the DST660 work with displays larger than 400 x 400mm VESA patterns?

The standard mount supports patterns up to 400 x 400mm. For larger patterns, Peerless-AV offers an optional adapter plate sold separately. Contact Creation Networks for compatibility guidance on your specific display model.
