Peerless-AV STS650 – SmartMount Universal Scissor Wall Mount 39-85in+

What is the Peerless-AV STS650 SmartMount universal scissor wall mount?

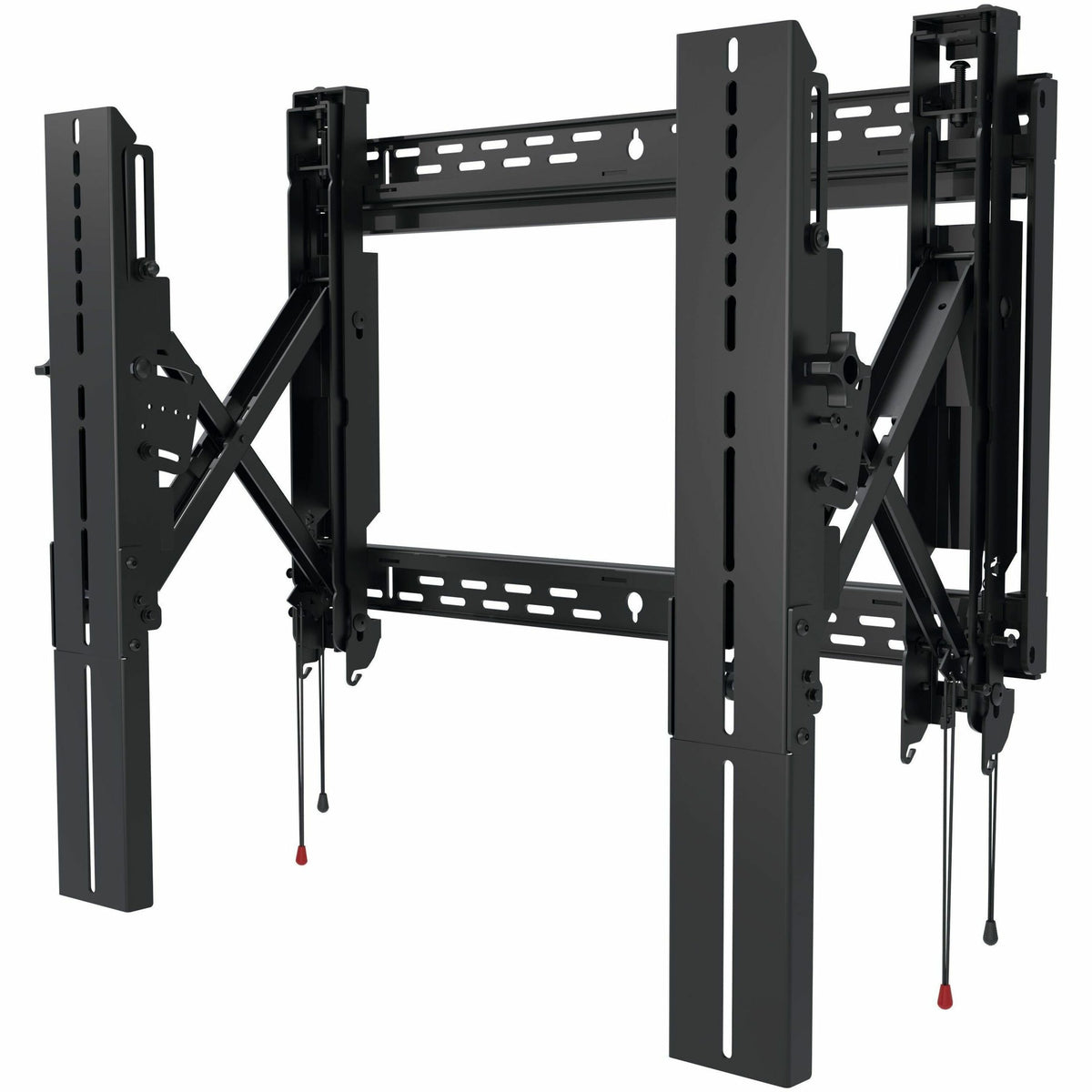

The Peerless-AV STS650 is a scissor-style pull-out wall mount for 39" to 85"+ commercial displays. Unlike a single-arm pull-out mount, the scissor mechanism extends the display straight out from the wall on parallel arms, giving a stable, level pull for a large-format panel while still allowing up to 12" of clearance for rear cabling and component access. It's the scissor wall mount integrators reach for when a large conference room or lobby display needs to pull away from the wall for service without the swing arc of a standard pivot mount. VESA compatibility runs from 200 x 100mm up to 600 x 600mm with the included bolt-on extenders, and the mount is rated to 200 lb.

What does the Peerless-AV STS650 do?

The STS650 extends a large-format display from 3.82" off the wall to 12" using a scissor-arm mechanism that keeps the panel parallel to the wall throughout its travel, rather than swinging it out on a pivot arc. That straight-line pull is useful in tighter rooms where a pivoting mount would swing the display into a walkway or adjacent furniture. Tilt runs up to 15° forward and 2° backward, with optional IncreLok fixed positions at -2°, 0°, 5°, 10°, and 15° for repeatable angle settings across multiple rooms on the same project. Post-installation leveling of up to 1/2" plus side-to-side adjustability lets installers fine-tune the display position after the mount is already on the wall. The 200 lb capacity and 600 x 600mm VESA support (with the included extenders) cover large-format LCD panels and many interactive displays in the 75"-85"+ range. Scratch-resistant fused epoxy semi-gloss black finish holds up to the wear of repeated pull-out and retract cycles in a working conference room. Installation surfaces include wood studs, concrete, and cinder block, and the mount carries a lifetime limited warranty — notable on a mechanical pull-out mount that sees regular movement.

Key Features

• Scissor-arm pull-out mechanism — extends the display straight out from the wall up to 12" without a pivot swing arc, ideal for tighter rooms.
• 200 lb weight capacity — rated for large-format 39"-85"+ displays including many interactive panels.
• 600 x 600mm VESA support — achievable with included bolt-on extenders for the largest commercial displays.
• IncreLok fixed tilt positions — repeatable angle settings at -2°, 0°, 5°, 10°, and 15° across multiple rooms.
• Post-installation leveling — up to 1/2" of leveling adjustment plus side-to-side fine-tuning after the mount is on the wall.
• Scratch-resistant fused epoxy finish — holds up under repeated pull-out and retract cycles.
• Lifetime limited warranty — backed by Peerless-AV for long-term commercial deployment.

Typical Applications

• Boardrooms
• Conference rooms
• Auditoriums
• Broadcast studios
• Multi-purpose rooms
• All-hands rooms

Technical Specifications

Frequently Asked Questions

How is a scissor mount different from a standard pivot pull-out mount?
A scissor mount extends the display straight out from the wall on parallel arms, keeping the panel level and facing the room throughout its travel. A pivot mount swings the display on an arc, which needs more lateral clearance and can angle the screen off-axis mid-travel.

What is the maximum VESA pattern the STS650 supports?
Up to 600 x 600mm when using the included bolt-on extenders, covering most large-format commercial displays.

How much weight can the STS650 hold?
Up to 200 lb, which covers large LCD panels and many interactive touch displays in the 75"-85"+ range.

Can the tilt angle be adjusted after installation?
Yes. The mount offers up to 15° of forward tilt and 2° of backward tilt, with IncreLok fixed positions at -2°, 0°, 5°, 10°, and 15° for repeatable settings.

What wall types is the STS650 rated for?
It installs to wood studs, concrete, and cinder block with the included hardware kit.

What is the warranty on the STS650?
Peerless-AV backs the STS650 with a lifetime limited warranty.
