ST632P – SmartMount Tilt Wall Mount for 22" to 43" Displays

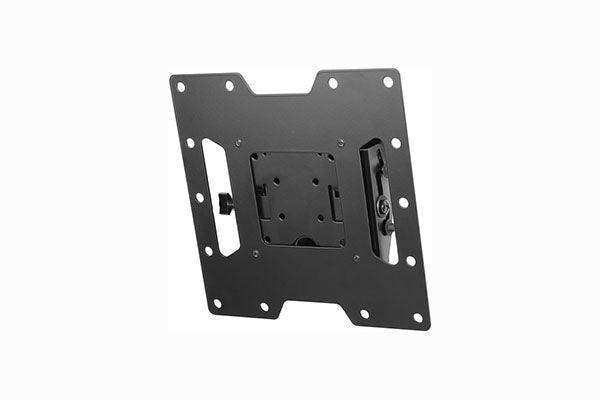

The Peerless-AV ST632P SmartMount Tilt Wall Mount supports 22 to 43-inch displays weighing up to 115 lb, providing -5 to +15 degrees of tilt adjustment with a thumbscrew lock for precise, stable viewing angle control.
Product Description
The ST632P SmartMount Tilt Wall Mount is the standard Phillips-screwdriver installation variant of the ST632 series, intended for installations where standard hardware — rather than security hardware — is appropriate. It is well suited to conference rooms, training spaces, corporate lobbies, and similar commercial environments where display positioning relative to audience eye level is a functional concern.
The mount provides a tilt range of -5 to +15 degrees, controlled and locked via a thumbscrew that does not require tools after initial installation. This allows minor viewing angle adjustments in the field without tools. The display adapter plate attaches to the display using standard hardware, then slides into the wall plate via Peerless-AV's Hook-and-Hang system for single-installer setup.
The ST632P holds the display 1.57 to 2.83 inches from the wall depending on tilt position, and mounts to wood studs, concrete, or cinder block walls. The mount is compatible with VESA mounting patterns of 75 x 75, 100 x 100, 200 x 100, and 200 x 200 mm. It is UL listed, cUL listed, and RoHS certified. Dimensions are 8.74" x 8.74" x 2.83" and the mount weighs 3.4 lb.
Key Features
- Supports 22 to 43" displays up to 115 lb (52.16 kg) for commercial and mid-size professional installations.
- Provides -5 to +15 degrees of tilt adjustment for precise viewing angle control.
- Tilt angle locks in place via a thumbscrew without requiring additional tools.
- Hook-and-Hang installation system allows single-person setup.
- Compatible with VESA patterns: 75 x 75, 100 x 100, 200 x 100, and 200 x 200 mm.
- Mounts to wood studs, concrete, and cinder block wall surfaces.
- Standard Phillips screwdriver hardware (for security hardware, select ST632).
- UL listed, cUL listed, and RoHS certified. Wall plate size: 6.57" x 6.1".
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | ST632P |
| Supported Screen Sizes | 22" to 43" (55.9 to 109.2 cm) |
| Weight Capacity | 115 lb (52.16 kg) |
| VESA Patterns | 75x75, 100x100, 200x100, 200x200 mm |
| Tilt Adjustment | -5 to +15° |
| Orientation | Landscape |
| Distance from Wall | 1.57" to 2.83" (4.0 to 7.2 cm) |
| Wall Plate Size | 6.57" x 6.1" (16.7 x 15.5 cm) |
| Dimensions | 8.74" x 8.74" x 2.83" (222 x 222 x 72 mm) |
| Weight | 3.4 lb (1.54 kg) |
| Certifications | UL, cUL, RoHS |
| Wall Compatibility | Wood studs, concrete, cinder block |
