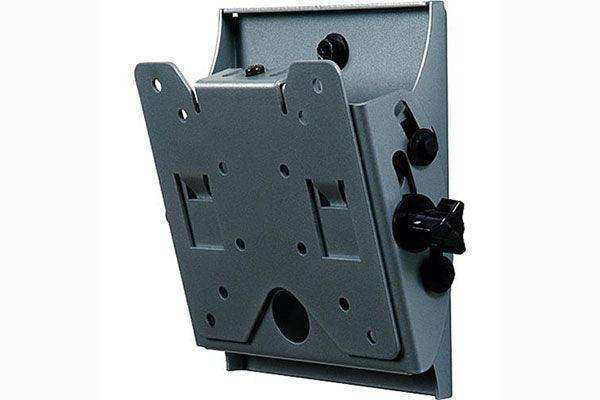

ST630 – Peerless-AV SmartMount Tilt Wall Mount for 10" to 29" Displays
The Peerless-AV ST630 SmartMount Tilt Wall Mount is an ultra-slim, tool-free tilt mounting solution for flat panel displays from 10" to 29", designed to sit virtually flush against the wall for minimal visual intrusion in any installation.
Product Description
The ST630 shares the same core engineering platform as the ST630P, designed for applications where a slim, low-profile wall installation is required for small to mid-size displays. The screen adapter plate hooks directly onto the wall plate for quick, efficient installation, reducing time on-site for integrators managing multi-display deployments.
Tool-free one-touch tilt delivers +15° to -5° of angle adjustment after installation, allowing viewing angles to be optimized without revisiting the wall plate or disassembling the mount. Additional screen adapter plates are available separately for extended display compatibility beyond the standard VESA 75mm and 100mm patterns.
The ST630 supports installation on wood stud, concrete, cinder block, and metal stud walls (metal stud accessory required), and carries a UL Listing for verified structural safety. All hardware needed for standard wall types is included in the package.
Key Features
- Ultra-slim profile mounts displays virtually flush to the wall for a clean, space-efficient installation.
- Compatible with displays from 10" to 29" using VESA 75mm and 100mm mounting hole patterns.
- One-touch tilt adjustment from +15° to -5° requires no tools and can be performed post-installation.
- Screen adapter plate hooks onto the wall plate for fast, straightforward installation.
- Additional screen adapter plates available separately to expand display compatibility.
- Mounts to wood stud, concrete, cinder block, and metal stud surfaces (metal stud accessory sold separately).
- UL Listed for verified structural integrity and safety compliance.
- All hardware for supported wall types included in the box.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | ST630 |
| Compatible Display Size | 10" to 29" |
| Tilt Range | +15° / -5° |
| VESA Compatibility | 75mm, 100mm |
| Wall Compatibility | Wood stud, concrete, cinder block, metal stud (accessory required) |
| UL Listed | Yes |
| Additional Adapter Plates | Available separately |
| Hardware Included | Yes |
| Series | SmartMount |
| Brand | Peerless-AV |
