Peerless-AV SP740P – SmartMount Pivoting Wall Mount for 22" to 40" Displays

SP740P – Peerless-AV SmartMount Pivoting Wall Mount for 22" to 40" Displays

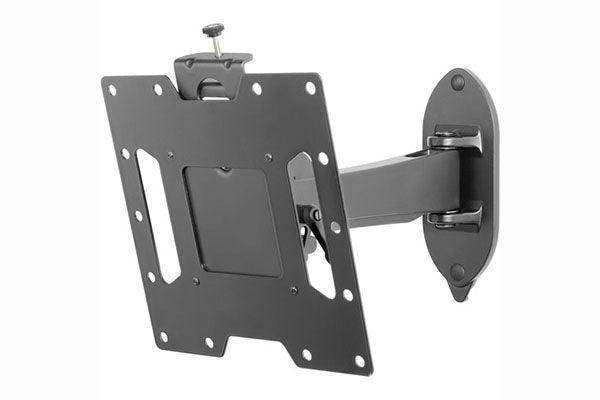

The Peerless-AV SP740P SmartMount is a full-motion pivoting wall mount supporting 22" to 43" displays, offering tilt, swivel, and extension adjustment to provide flexible viewing angle control in a wide range of commercial and professional AV environments.

Product Description

Many display installations require more than a fixed or tilt-only mount. Conference rooms, reception areas, control rooms, and similar environments often demand that screens can be repositioned to address different viewing areas depending on occupancy or use. The SP740P provides this flexibility through a full range of articulation: -5° to +15° of tilt, ±90° of swivel, and a wall extension range of 3.03" to 12.4" that allows the display to be pulled forward for visibility or pushed back toward the wall when not in active use.

The mount carries displays with VESA patterns from 100 x 100mm to 200 x 200mm and supports a maximum load capacity of 80 lb — sufficient for most 22" to 43" commercial displays. The Hook-and-Hang installation system allows a single installer to set the wall plate and then hang the display without a second person to stabilize the assembly, which reduces installation labor on multi-unit projects.

The SP740P accommodates both landscape and portrait display orientations, extending its usefulness across menu boards, wayfinding systems, and informational kiosk-style installations in addition to standard horizontal viewing applications. Integrated cable management routes cables within the mount arm to maintain a clean appearance. Available from Creation Networks at creationnetworks.net.

Key Features

• Supports 22" to 43" displays with VESA patterns from 100 x 100mm to 200 x 200mm and a maximum load capacity of 80 lb.
• -5° to +15° tilt adjustment allows the screen to be angled toward the viewing audience for optimal image quality.
• ±90° swivel adjustment enables the display to pivot left or right to address different areas of a room.
• 3.03" to 12.4" wall extension range allows the display to be pulled forward for active use or positioned closer to the wall when not in use.
• Hook-and-Hang installation system supports single-person installation, reducing labor requirements on multi-unit projects.
• Landscape and portrait mounting orientations supported, adding versatility for menu boards, wayfinding, and informational displays.
• Compatible with wood stud, concrete, cinder block, and breeze block wall surfaces for installation in a range of commercial environments.
• Integrated cable management keeps signal and power cables routed within the mount arm for a finished appearance.

Technical Specifications
