SA730P – Peerless-AV SmartMount Articulating Wall Mount for 10–29" Displays

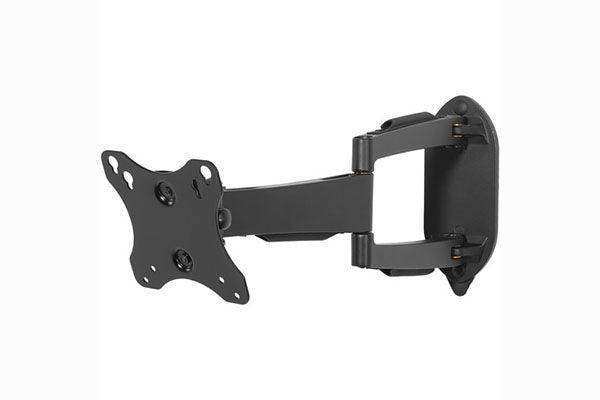

The Peerless-AV SA730P SmartMount is an articulating wall mount designed for 10 to 29-inch displays, providing full arm extension, pivot adjustment, and integrated cable management in a compact form factor suited to smaller commercial displays and digital signage panels.
Product Description
The SA730P is engineered for installations where display positioning flexibility is a priority. The articulating arm extends the display up to 17.01 inches from the wall surface, providing reach for angled viewing in narrow corridors, kiosks, point-of-sale stations, and small meeting rooms. When not in use or for a lower-profile appearance, the arm retracts to hold the display as close as 2.76 inches from the wall.
A ±90° pivot adjustment range allows the display to be repositioned horizontally to direct the viewing angle toward the intended audience without relocating the wall plate. An additional ±5° of post-installation leveling adjustment compensates for minor wall irregularities or plumb variations encountered during installation.
Integrated cable management routes cables through the mount structure, protecting wiring from exposure and maintaining a professional finished appearance. The SA730P supports displays from 75 x 75 mm to 100 x 100 mm VESA mounting patterns and accommodates displays weighing up to 25 lb.
Key Features
- Supports 10–29" displays weighing up to 25 lb with 75 x 75 mm to 100 x 100 mm VESA patterns.
- Articulating arm extends up to 17.01" from the wall for flexible display positioning.
- Retracts to hold the display as close as 2.76" from the wall when fully folded.
- Pivot adjustment of ±90° for horizontal repositioning of the display without moving the wall plate.
- Post-installation leveling of ±5° to correct for wall or mounting surface variations.
- Integrated cable management conceals and protects wiring through the mount structure.
- Compact design suited for kiosks, point-of-sale stations, corridors, and small meeting rooms.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | SA730P |
| Compatible Display Sizes | 10" – 29" |
| Maximum Display Weight | 25 lb |
| VESA Pattern Range | 75 x 75 mm – 100 x 100 mm |
| Maximum Extension from Wall | 17.01" |
| Minimum Distance from Wall (retracted) | 2.76" |
| Pivot Adjustment | ±90° |
| Post-Installation Leveling | ±5° |
| Cable Management | Integrated |
