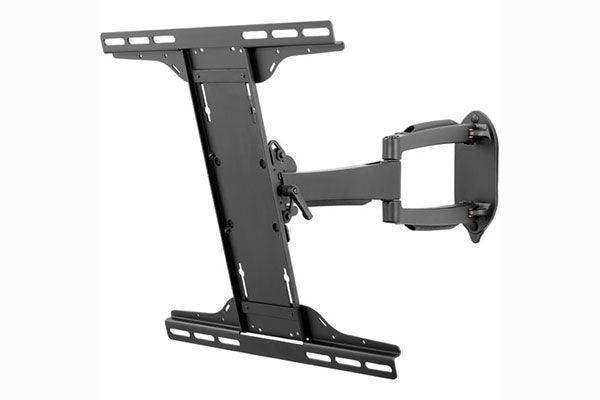

Peerless-AV SA746PU – SmartMount Articulating Wall Mount for 32"–50" Displays

SA746PU – Peerless-AV SmartMount Articulating Wall Mount for 32"–50" Displays

The Peerless-AV SA746PU SmartMount Articulating Wall Mount supports 32"–50" displays up to 80 lb, extending the panel up to 22.2" from the wall with integrated cable management and ±90° pivot for broad display positioning flexibility.

Product Description

The SA746PU is a mid-range articulating wall mount from Peerless-AV's SmartMount line, designed for 32"–50" commercial and professional displays in conference rooms, offices, classrooms, and hospitality environments. The arm extends up to 22.2" from the wall, pulling the display well into the room for better sightlines from multiple seating positions, then retracts to hold the screen as close as 3.46" to the wall when the extended position is not needed.

A ±90° pivot adjustment allows the display to be directed across a wide arc from a single wall mount point, covering split viewing zones or accommodating changing room configurations. Post-installation leveling of ±5° allows roll correction after the display is mounted, addressing minor installation imperfections without requiring re-installation. Integrated cable management routes cables through the arm assembly, keeping them protected and visually contained for a professional installation finish.

The SA746PU supports display mounting patterns from 200 x 100mm to 400 x 400mm, covering a broad range of commercial panels in its size category. All necessary mounting hardware is included. Browse the full SmartMount articulating series at Creation Networks.

Key Features

• Extends up to 22.2" from the wall: Full extension pulls the display substantially into the room for improved sightlines from multiple seating positions in conference and classroom environments.
• Retracts to 3.46" from the wall: Compact retracted profile keeps the display close to the wall surface when the articulating position is not in use.
• ±90° pivot adjustment: Rotates the display across a wide arc from a single mounting point, covering split viewing zones or directing the screen toward specific areas.
• ±5° post-installation leveling: Roll correction after the display is mounted allows compensation for minor installation imperfections without re-drilling the wall plate.
• Integrated cable management: Cables are routed through the arm assembly for a clean, protected installation appearance appropriate for professional AV environments.
• VESA 200 x 100mm to 400 x 400mm compatible: Broad VESA compatibility covers the majority of commercial and professional displays in the 32"–50" size range.
• Supports displays up to 80 lb: Adequate weight capacity for commercial-grade panels in the supported size range, including heavier commercial signage displays.

Technical Specifications
