Peerless-AV SA740P – SmartMount Articulating Wall Mount for 22"-40"

SA740P – Peerless-AV SmartMount Articulating Wall Mount for 22" to 40" Displays

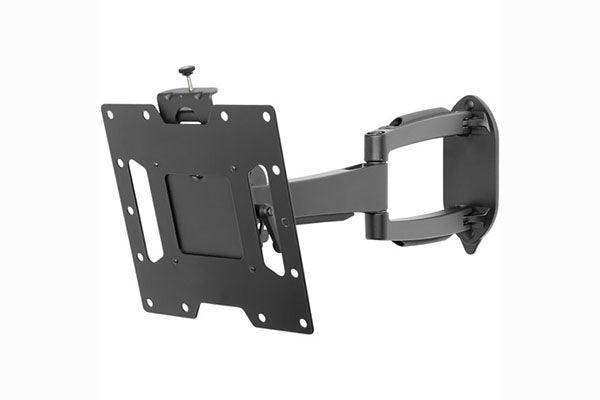

The Peerless-AV SA740P is a full-motion articulating wall mount from the SmartMount series, built for 22"–43" displays weighing up to 80 lb, with an arm that extends 21.81" from the wall and retracts to as close as 3.03" for a near-flush profile.

Product Description

The SA740P is designed for mid-size displays in environments where viewing flexibility is a priority. Its full-motion arm provides the full range of extension and retraction needed to position a display at the optimal distance for close viewing, swing it aside for maintenance access, or retract it flat against the wall when not in active use. The mount is particularly well-suited for conference rooms, digital signage deployments, and AV furniture integration where a small-to-mid-size display must serve multiple positions.

The articulating arm extends to 21.81" (554 mm) from the wall, giving adequate clearance for most rear-panel connection access scenarios. It retracts to 3.03" (77 mm) for a low-profile resting position. The pivot adjustment range of ±90° allows the display to face left or right to cover multiple seating positions, while post-installation roll leveling of ±5° compensates for minor wall surface irregularities after the display is installed.

VESA compatibility covers 100×100 mm to 200×200 mm hole patterns, which spans the majority of 22"–40" commercial displays. Integrated cable management is built into the arm to route and protect signal and power cables along the mount, keeping the installation tidy without additional cable hardware. The SA740P includes all wall and display attachment hardware required for a complete installation.

Key Features

• Articulating arm extends to 21.81" (554 mm) from the wall for optimal viewing distance and maintenance access.
• Retracts to 3.03" (77 mm) for a low-profile, near-flush resting position when not in use.
• Pivot adjustment range of ±90° allows the display to face multiple viewing zones from a fixed wall position.
• Post-installation roll leveling of ±5° corrects for uneven wall surfaces after the display is hung.
• Supports displays from 22" to 43" weighing up to 80 lb on 100×100 mm to 200×200 mm VESA patterns.
• Integrated cable management built into the arm keeps signal and power cables organized and protected.
• All wall and display attachment hardware included in the box for a complete installation.
• SmartMount series design optimized for professional AV installation environments.

Technical Specifications
