Peerless-AV SP850P SmartMount Pull-Out Swivel Wall Mount for 32"-80" Flat Panel Displays

SP850P – Peerless-AV SmartMount Pull-Out Swivel Wall Mount

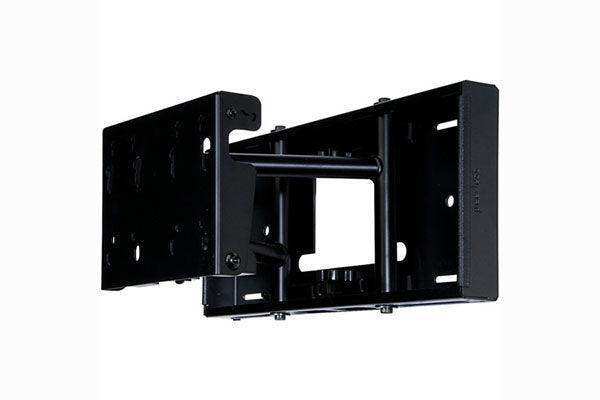

The Peerless-AV SP850P SmartMount Pull-Out Swivel Wall Mount combines the low-profile convenience of a flat wall mount with the repositioning flexibility of a pivot arm, supporting 32" to 80" flat panel displays in commercial AV environments where both maintenance access and display adjustability are required.

Product Description

In its closed position, the SP850P rests just 2.3" from the wall, presenting a near-flat profile that suits installations where a low wall depth is required — including cubby recesses, custom millwork frames, and video wall alignments. The enclosed wall plate design hides the mount hardware and routes cabling out of sight, producing a finished appearance comparable to a fixed flat mount.

When the arm is extended, it pulls the display out up to 10.75" from the wall and allows up to 45° of pivot rotation. This range of motion is sufficient to reorient the display toward a secondary viewing area or provide a technician with clear access to the rear ports and panel connections without unmounting the screen. The IncreLok tilt system provides stepped tilt positions at 0°, 5°, and 10° for downward viewing angle correction.

The SP850P mounts to 16" wood studs as well as concrete and cinder block surfaces, accommodating the structural variety found in commercial construction. A lock-out screw prevents unintentional extension, and a locking tab restricts swivel to one side when the installation requires directional control of display movement.

Key Features

• Pull-Out and Swivel Arm — Extends the display up to 10.75" from the wall and pivots up to 45°, providing both repositioning flexibility and full rear access for AV connections and maintenance.
• 2.3" Closed Profile — In the retracted position the mount depth is only 2.3", making it suitable for recessed installations in millwork, cubby holes, and custom AV furniture.
• IncreLok Tilt System — Stepped tilt positions at 0°, 5°, and 10° allow consistent downward viewing angle correction across multi-display installations without continuous adjustment.
• ±1° Roll Adjustment — Horizontal leveling correction is built into the mount for fine-tuning display alignment during commissioning.
• Lock-Out Screw — Prevents unintentional extension of the arm in environments where the display must remain in a fixed position, such as lobbies or high-traffic corridors.
• Built-In Cable Management — Cables are hidden within the enclosed wall plate assembly, eliminating visible wiring at the wall and throughout the arm’s travel range.
• VESA 100 and 200 x 100 Compatible — Works with standard VESA hole patterns; a PLP or LC adapter plate (sold separately) is required for non-VESA displays.
• Multiple Mounting Surface Support — Installs into 16" wood studs, concrete, and cinder block for broad applicability across commercial construction types.

Typical Applications

The SP850P is the appropriate choice for commercial AV installations where a display must occasionally be repositioned for viewing angle changes or rear-panel access, but must otherwise sit flush to a wall or recess. Common deployment scenarios include training rooms and collaboration spaces requiring flexible screen positioning, custom millwork or built-in AV furniture where the mount must fit a defined depth envelope, and video wall or tiled display arrangements where alignment to adjacent panels is required during installation. Service technicians also benefit from the pull-out arm when performing display maintenance without a full dismount.

Technical Specifications

Frequently Asked Questions

Can the SP850P be used in a recessed or cubby-hole installation?

Yes. At 2.3" closed depth, the SP850P is designed for exactly this type of installation. When mounted inside a custom AV frame or millwork enclosure, the pull-out function allows the display to be extended clear of the recess for rear access without uninstalling the mount or the display.

What adapter plate is needed for non-VESA displays?

Peerless-AV PLP or LC series adapter plates are required for displays that do not have standard VESA mounting holes. These are sold separately. Consult the Peerless-AV adapter plate selector or contact Creation Networks at creationnetworks.net for a compatibility recommendation.

Does the lock-out screw prevent all arm movement, or just extension?

The lock-out screw prevents unintentional extension of the pivot arm, keeping the display in the retracted wall-flush position. The separate locking swivel tab restricts lateral pivot to one direction. Both mechanisms are independent and can be used together or separately based on installation requirements.
