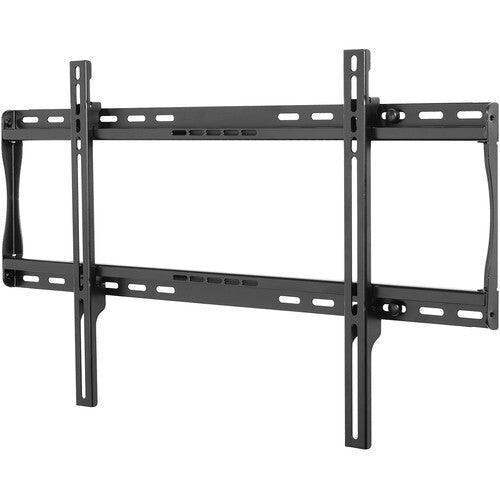

SF660P – Universal Flat Wall Mount for 39–80" Displays
The Peerless-AV SF660P is a low-profile universal flat wall mount designed for commercial and institutional installations, supporting flat panel displays from 39" to 80" with a maximum load capacity of 200 lb.
Product Description
The SF660P holds displays just 1.3" from the wall, delivering a clean, flush appearance suitable for lobbies, conference rooms, classrooms, and retail environments where aesthetics matter as much as function. Its VESA-compliant design pairs with standard display mounting hole patterns across a wide range of commercial panels.
Post-installation adjustment is built into the mount: up to 0.25" of vertical adjustment and up to 8" of horizontal shift allow the installer to fine-tune display position after the mount is secured to the wall. The mount attaches to wood studs, concrete, cinder block, or metal studs (with the required metal stud accessory), giving integrators flexibility across different building construction types.
The SF660P carries UL listing, VESA compliance, RoHS approval, and OSHPD approval, satisfying the documentation requirements common in healthcare, education, and government projects. Integrated security options are available to deter unauthorized removal in public-facing installations.
Key Features
- Supports flat panel displays from 39" to 80" with a maximum load capacity of 200 lb.
- Ultra-low profile holds the display only 1.3" from the wall for a clean, finished appearance.
- Up to 8" of post-installation horizontal adjustment for precise display centering.
- Up to 0.25" of vertical adjustment for level fine-tuning after mounting.
- Compatible with wood studs, concrete, cinder block, and metal studs (metal stud accessory required).
- Integrated security options available to deter tampering or unauthorized removal.
- UL Listed, VESA compliant, RoHS approved, and OSHPD approved.
- Provides post-installation lateral shift based on display VESA hole spacing.
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Display Sizes | 39" to 80" |
| Maximum Load Capacity | 200 lb |
| Profile Depth (Display to Wall) | 1.3" |
| Horizontal Adjustment | Up to 8" |
| Vertical Adjustment | Up to 0.25" |
| Wall Compatibility | Wood stud, concrete, cinder block, metal stud (accessory required) |
| Certifications | UL Listed, VESA Compliant, RoHS Approved, OSHPD Approved |
