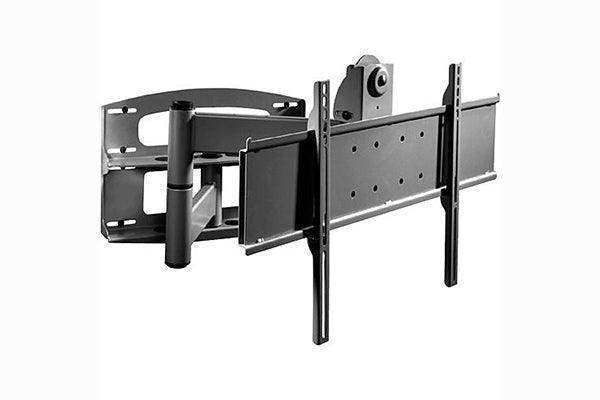

Peerless-AV PLA60-UNL – Security Universal Articulating Arm Wall Mount for 37"–65" Flat Panel

PLA60-UNL – Peerless-AV Security Universal Articulating Arm Wall Mount for 37–65" Flat Panel Displays

The Peerless-AV PLA60-UNL is a security-enhanced universal articulating wall arm for 37 to 65" plasma and LCD flat-panel displays, offering swivel, tilt, and roll adjustment on an all-steel arm construction that mounts to wood studs, concrete, and metal stud walls for installation flexibility across virtually any building type.

Product Description

The PLA60-UNL arm extends up to 31.2" from the wall, providing enough reach to position a display away from the mounting surface for comfortable viewing in rooms where the wall-to-seating distance would otherwise create an unfavorable viewing angle. Three pivot points with up to 180° of swivel allow the display to face virtually any direction in the room.

Tilt adjustment of +10°/-5° covers the typical range needed to eliminate glare from overhead lighting in commercial spaces, and the ±7° roll adjustment allows the installer to level the screen horizontally without repositioning the wall plate. Five horizontal arm positions at 2.6" centers provide lateral flexibility for centering the display on a wall or aligning it with a specific architectural feature.

A mesh cord sheath and cable ties are included for integrated cable management, keeping signal and power cables routed along the arm and out of sight. Universal models adapt to screens with mounting holes up to 28.7 x 17", and the mount is compatible with wood stud, concrete, and metal stud walls (with the optional metal stud accessory).

Key Features

• Extends up to 31.2" from the wall — Provides substantial reach to position displays away from the wall surface for improved viewing angles in deeper rooms.
• Three pivot points with 180° swivel — Multiple pivot joints and a wide swivel range allow the display to be directed toward any viewing position in the room.
• +10°/-5° tilt — Covers the standard tilt range required to eliminate glare from ceiling-mounted lighting in commercial environments.
• ±7° roll for horizontal leveling — Allows the installer to level the display horizontally after mounting without adjusting the wall plate position.
• Five horizontal arm positions — Arms lock at five positions at 2.6" centers, providing lateral flexibility for display placement on the wall.
• Universal VESA compatibility — Adapts to screens with mounting holes up to 28.7 x 17" to support a wide range of commercial flat-panel models.
• Mesh cord sheath and cable ties included — Integrated cable management routes and conceals all signal and power cables along the arm.
• Mounts to wood stud, concrete, and metal stud — Broad wall-type compatibility makes this arm appropriate for new construction and retrofit installations in any building type.
• Self-lubricating bushings — Smooth arm motion is maintained throughout the product’s service life without requiring any lubrication maintenance.

Typical Applications

The PLA60-UNL is suitable for conference rooms, hotel guestrooms, boardrooms, and public lobby installations where displays need to be repositioned for varying audience configurations. Its security features make it appropriate for installations in semi-public environments such as waiting rooms, healthcare facilities, and educational spaces where the display position must be set by the administrator and not changed by general users.

Technical Specifications

Frequently Asked Questions

What security features does the PLA60-UNL include?

The PLA60-UNL includes security hardware that allows the arm’s swivel, tilt, and pivot joints to be locked, preventing unauthorized repositioning of the display. This is particularly useful in waiting rooms, retail environments, and educational facilities where display position needs to be administrator-controlled.

Can the PLA60-UNL be installed on a concrete wall?

Yes. The mount is designed for installation on wood stud, concrete, and cinder block walls. Metal stud installations require the optional metal stud accessory. Contact Creation Networks to confirm the correct hardware for your wall type.

How many horizontal positions does the arm offer?

The PLA60-UNL provides five discrete horizontal arm positions at 2.6" centers, allowing the installer to offset the display laterally from the wall plate center to align it with a window, artwork, or room centerline without moving the wall plate anchor points.
