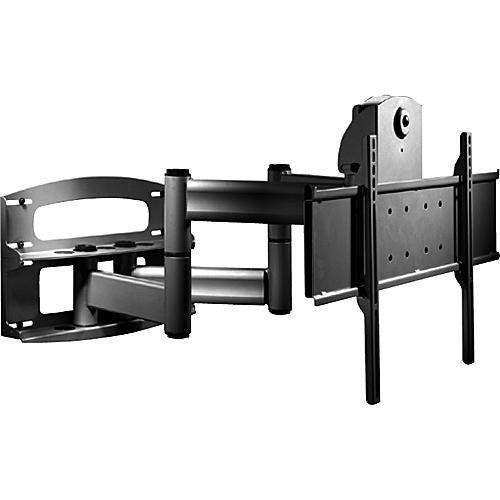

Peerless-AV PLAV70-UNL – Articulating Dual-Arm Wall Mount 42-95"

Product Overview

The Peerless-AV PLAV70-UNL is a universal articulating wall mount with dual arms and vertical adjustment for large 42" to 95" flat panel displays. This full-motion display wall mount uses all-steel dual-arm construction to support panels up to 200 lb while extending more than 32" from the wall for service access and flexible viewing. With up to 180° of swivel, tilt, roll leveling, and post-installation vertical adjustment, it gives AV integrators precise control over display position in conference rooms, digital signage, and commercial meeting spaces.

Product Description

The PLAV70-UNL is built around a dual-arm articulating mechanism that lets a large display swing, swivel, and tilt to suit the room, then lock into a leveled position. Self-lubricating bushings allow the arms to articulate smoothly under load, while adjustable tilt and pivot set the optimal viewing angle for seated or standing audiences. The universal design accommodates mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H), and three horizontal arm positions at 2.6" (66mm) centers give the installer lateral placement options to center the display on the wall. A mesh cord sheath and cable ties keep power and signal cabling organized as the arm extends and retracts, and the ±1" (24mm) vertical adjustment located behind the display allows fine leveling after the mount is fixed to the wall. This combination of reach, capacity, and adjustment makes the PLAV70-UNL a strong choice for integrators specifying articulating wall mounts for large-format commercial displays. Browse comparable mounts in the Peerless-AV collection at Creation Networks.

Key Features

• Dual-Arm Articulating Design — All-steel dual arms swing the display out from the wall for full-motion positioning and rear access.
• 200 lb Load Capacity — Supports large 42" to 95" flat panel displays weighing up to 200 lb.
• Extends Over 32" From Wall — The arm reaches up to 32.52" (826mm) for flexible viewing and service access.
• Up to 180° Swivel — Wide swivel range lets the display angle toward different parts of the room.
• Tilt and Roll Adjustment — Provides +10°/-5° of tilt and ±7° of roll for post-installation display leveling.
• Vertical Adjustment — ±1" (24mm) of vertical adjustment located within reach behind the display for fine leveling.
• Universal Compatibility — Fits mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H).
• Three Arm Positions — Horizontal arm positions at 2.6" (66mm) centers allow lateral display placement.
• Cable Management — Mesh cord sheath and cable ties keep wiring tidy through the full range of motion.
• Self-Lubricating Bushings — Allow the arms to articulate smoothly under the weight of large displays.

Typical Applications

• Conference rooms and boardrooms with large-format displays
• Training rooms and all-hands meeting spaces
• Commercial digital signage requiring angled viewing
• House of worship and auditorium displays
• Government and corporate meeting spaces

Technical Specifications

Frequently Asked Questions

What display sizes and weight does the PLAV70-UNL support?
It supports 42" to 95" flat panel displays weighing up to 200 lb.

Will it fit my display's mounting holes?
The universal design accommodates mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H).

How far does the display extend from the wall?
The dual arms extend the display up to 32.52" (826mm) from the wall.

What positioning adjustments are available?
It offers up to 180° swivel, +10°/-5° tilt, ±7° roll for leveling, and ±1" (24mm) of vertical adjustment behind the display.

Can I shift the display left or right on the wall?
Yes. Three horizontal arm positions at 2.6" (66mm) centers allow lateral placement.

How are cables managed?
A mesh cord sheath and cable ties route and conceal cabling through the full range of arm motion.

Is the mount strong enough for heavy commercial displays?
Yes. Its all-steel dual-arm construction and self-lubricating bushings are designed to articulate smoothly while supporting displays up to 200 lb.
