Peerless-AV SA752PU – SmartMount Articulating Wall Mount 43-65in

What is the Peerless-AV SA752PU SmartMount articulating wall mount?

The Peerless-AV SA752PU is a full-motion articulating wall mount for 43" to 65"+ commercial displays. It's a standard spec for conference rooms and huddle rooms where the display needs to extend, pivot, and tilt to serve seating positions that aren't directly in front of the wall. The SA752PU extends up to 30.1" from the wall and pivots ±90°, giving installers a wide range of positioning without switching to a specialty ceiling or corner mount. It supports VESA patterns from 200 x 100mm to 600 x 400mm and up to 90 lb, and carries a lifetime limited warranty.

What does the Peerless-AV SA752PU do?

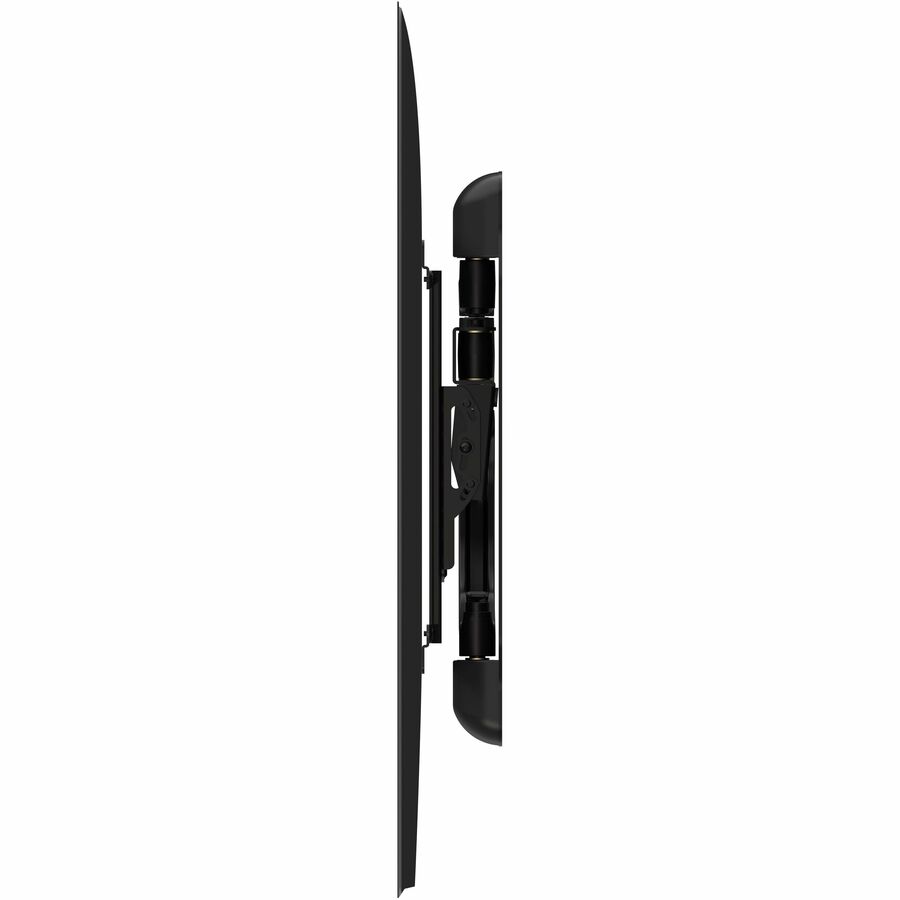

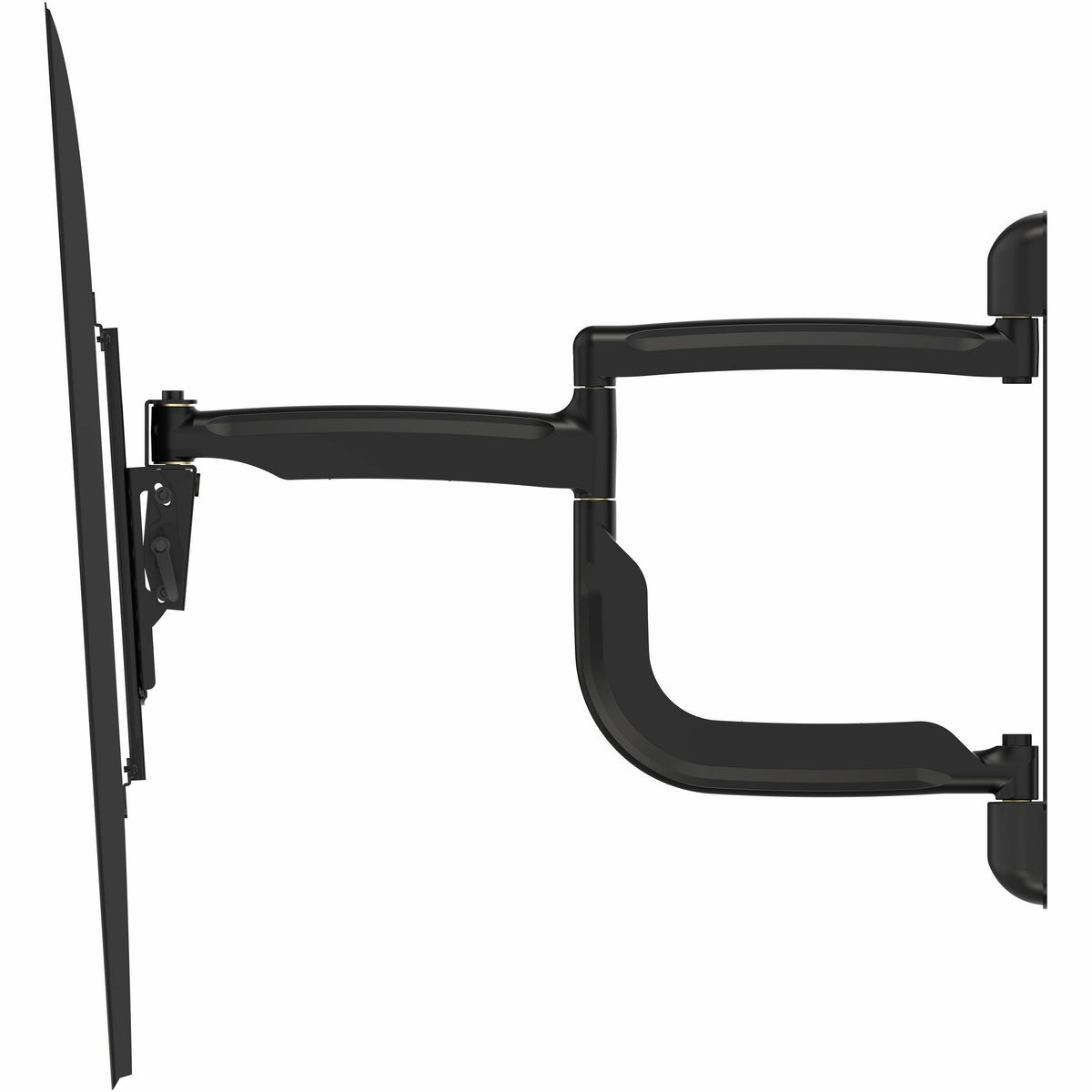

The SA752PU's articulating arm extends up to 30.1" from the wall and retracts to 3.0", with ±90° of pivot so the display can be angled toward seating that isn't centered on the wall — a common layout in irregular conference rooms or corner-mounted huddle room displays. Tilt runs 15° forward and 5° backward, with ±5° of roll adjustment after installation to correct for an out-of-level wall condition. The Hook-and-Hang installation feature lets a single technician lift the display onto the wall plate and engage it before making final adjustments, speeding up install time on a full-motion wall mount that would otherwise require two people to hold and align. An I-shaped adaptor plate design avoids covering the display's rear inputs, so HDMI and power connections stay accessible even with the mount installed, and integrated cable management routes cabling along the arm for a clean finish. The semi-gloss black fused epoxy finish resists scratching from repeated arm movement. Installation works on wood stud, concrete, cinder, or breeze block walls, and the mount is UL Listed, RoHS compliant, TAA compliant, and VESA certified — covering the certifications most corporate and government procurement specs require.

Key Features

• 30.1" maximum extension with ±90° pivot — positions the display for seating angles that aren't centered on the wall.
• Full tilt and roll adjustment — 15° forward / 5° backward tilt plus ±5° roll for post-installation leveling.
• Hook-and-Hang installation — a single technician can lift and engage the display before final adjustment.

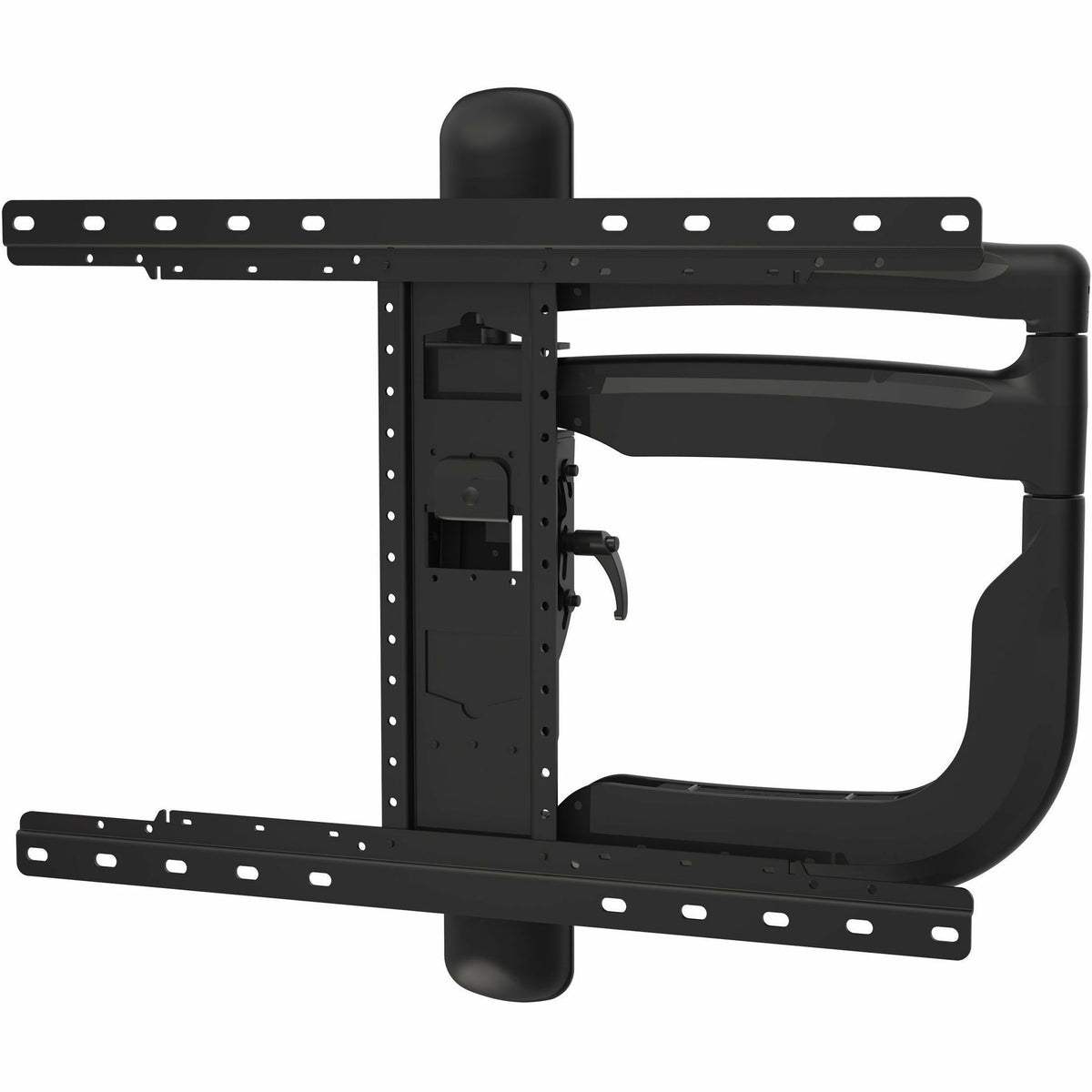

• I-shaped adaptor plate — keeps rear display inputs accessible instead of covering them.
• 90 lb weight capacity — rated for commercial displays from 43" to 65"+.

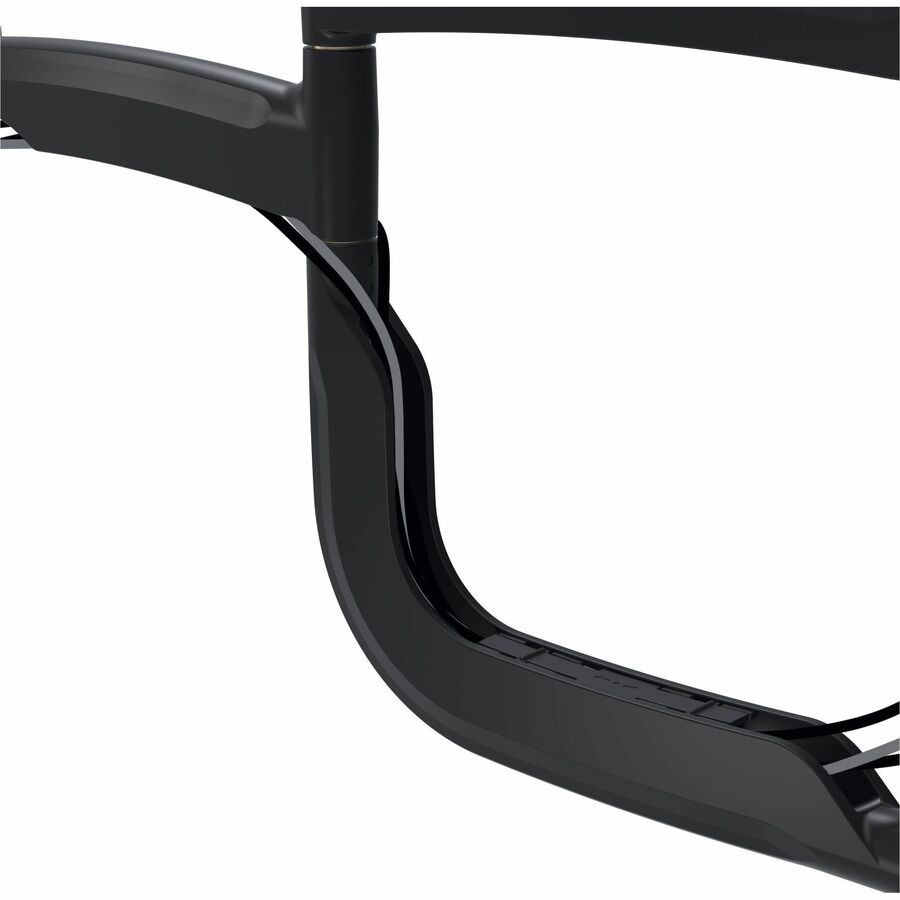

• Integrated cable management — routes HDMI, network, and power cabling along the arm.
• Multi-surface installation — mounts to wood stud, concrete, cinder, or breeze block.
• Lifetime limited warranty — with UL Listing, RoHS, and TAA compliance.

Typical Applications

• Conference rooms and huddle rooms
• Boardrooms
• Commercial meeting spaces
• Training rooms
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What display sizes and weights does the SA752PU support?
43" to 65"+ commercial displays up to 90 lb, with VESA compatibility from 200 x 100mm to 600 x 400mm.

How far does the SA752PU extend from the wall?
Up to 30.1" from the retracted 3.0" position, with ±90° of pivot for angling the display toward off-center seating.

Can one installer mount this without a second person?
Yes, the Hook-and-Hang feature is designed to let a single technician lift the display onto the wall plate and engage it before making final tilt and roll adjustments.

Does the mount block access to the display's rear inputs?
No. The I-shaped adaptor plate is designed specifically to keep HDMI, power, and control connections accessible after installation.

What wall surfaces can the SA752PU be installed on?
Wood stud, concrete, cinder, or breeze block walls, with hardware included for each.

What is the warranty on the SA752PU?
Peerless-AV backs the SA752PU with a lifetime limited warranty, and it is UL Listed, RoHS, TAA, and VESA certified.

Does Creation Networks offer installation for full-motion mounts like this?
Yes, Creation Networks provides nationwide AV installation services and can scope mount installation as part of a complete conference room deployment. See the PA775 for a larger-format articulating mount option.
