Peerless-AV SP850-UNLP – Pull-Out Pivot Wall Mount for 32" to 80" Displays

SP850-UNLP – Peerless-AV Pull-Out Pivot Wall Mount for 32" to 80" Flat Panel Displays

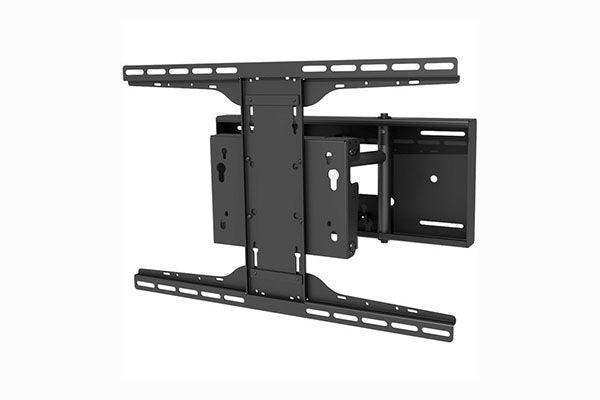

The Peerless-AV SP850-UNLP is a pull-out pivot wall mount for 32" to 80" flat panel displays, extending up to 10.68" from the wall with 90-degree pivot travel and IncreLok tilt settings at 0°, 5°, and 10° for precise viewing angle adjustment.

Product Description

The SP850-UNLP Pull-Out Pivot Wall Mount combines a low-profile wall footprint with practical on-demand access, making it a dependable choice for commercial and institutional AV installations where displays need to remain accessible for maintenance while keeping a clean appearance when in regular use. When fully retracted, the mount profile is just 2.31" deep, keeping the display close to the wall and minimizing visual intrusion in the space.

When access is needed, the arms extend to a full 10.68" from the wall and pivot up to 45° in each direction for a total of 90° of swivel travel. This makes it practical to reposition the display for different seating configurations, or to allow technician access to rear-panel connections without unmounting the display. The IncreLok tilt system provides three defined tilt positions (0°, 5°, and 10°), which gives installers repeatable, stable settings rather than relying on freeform friction adjustment.

The SP850-UNLP incorporates an enclosed wall plate design that conceals wiring and mount hardware for a professional finish. Additional security is provided by a lock-out screw that prevents unauthorized or accidental extension of the arms. The mount installs to 16" wood studs, concrete, and cinder block, and a Lock Key installation tool is included to secure the arms during display attachment.

Key Features

• Pull-out pivot arms extend up to 10.68" from the wall and retract to a 2.31" profile, providing on-demand access while maintaining a low-profile appearance during normal use.
• 90-degree total pivot travel (45° in each direction) allows the display to be angled toward different viewing positions without repositioning the mount base.
• IncreLok tilt system provides defined tilt positions at 0°, 5°, and 10° for repeatable, stable angle settings without relying on friction-only adjustment.
• Adapts to displays with VESA mounting hole patterns up to 28.75" x 17.05", covering a broad range of 32" to 80" flat panel models.
• Enclosed wall plate design conceals wiring and mount hardware, resulting in a clean installation appearance from the front of the display.
• Lock-out screw prevents unwanted extension of the pivot arms, adding a security layer in public-access or semi-supervised environments.
• Plus or minus 1° of roll adjustment allows the display to be leveled horizontally during installation without repositioning the wall plate.
• Installs to 16" wood studs, concrete, and cinder block; Lock Key installation tool included for securing arms during display attachment.

Typical Applications

The SP850-UNLP is appropriate for corporate meeting rooms, hotel rooms, digital signage positions in retail environments, and educational classrooms where a display needs to be wall-mounted with the ability to reposition for different audiences or provide maintenance access. The lock-out screw and security hardware also make it suitable for semi-public installations in lobbies and waiting areas.

Technical Specifications

Frequently Asked Questions

How far does the SP850-UNLP extend from the wall?

The pivot arms extend up to 10.68" from the wall when fully extended. When retracted, the mount is only 2.31" deep, keeping the display close to the wall surface during normal use.

What tilt options does the IncreLok system provide?

IncreLok provides three defined tilt positions: 0°, 5°, and 10° downward tilt. These are fixed-increment positions rather than continuously variable settings, which ensures the tilt stays in place reliably after adjustment.

Can this mount be used on concrete walls?

Yes. The SP850-UNLP is rated for installation on 16" wood studs, concrete, and cinder block. Installers should follow the hardware specifications in the installation guide for concrete and masonry applications.
