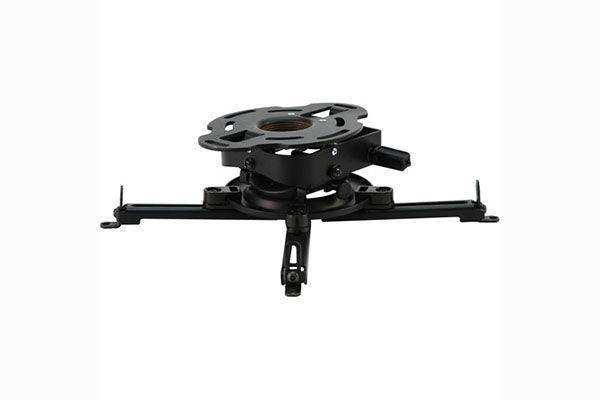

Peerless-AV PRGS-UNV – Universal Projector Ceiling Mount, Black

PRGS-UNV – Peerless-AV PRGS Series Universal Projector Ceiling Mount (Black)

The Peerless-AV PRGS-UNV is a universal projector ceiling mount rated for projectors up to 50 lb, featuring tool-optional pitch and roll adjustment knobs and a quick-release mechanism for simplified projector servicing without removing the full mount assembly.

Product Description

The PRGS-UNV is designed to reduce the time and effort required for both initial projector alignment and ongoing maintenance. Two dedicated adjustment knobs control pitch and roll independently — each can be turned with a standard Phillips screwdriver or, via quick-release extension, adjusted by hand without tools. This dual-mode approach allows for precise, repeatable image alignment during installation and fast repositioning when projector lens shift or display surface conditions change over time.

The open-frame assembly structure provides clear pathways for cable routing directly through the mount body, avoiding the need for external cable management hardware at the ceiling. Pre-installed security screws on the tilt and roll axes can be engaged to lock the image position after alignment, preventing unintentional adjustment by building occupants or service personnel. The low-profile design keeps the projector close to the ceiling surface, minimizing the visual footprint of the installation.

The PRGS-UNV supports projectors weighing up to 50 lb and accommodates adjustable projector sizes to cover a wide range of commercial short-throw and standard-throw units. Swivel rotation of 360° during installation allows the mount to be oriented correctly regardless of ceiling structure orientation. Pitch adjustment spans +15° to -20° and roll covers ±5°, providing adequate range for most non-standard installation geometries.

Key Features

• Quick-release mechanism allows the projector body to be lowered for service access without dismantling the ceiling mount.
• Dual-mode adjustment knobs control pitch and roll via Phillips screwdriver or by hand (tool-less quick-release extension).
• Open-frame assembly provides direct cable routing pathways through the mount, reducing external cable management requirements.
• Pre-installed security screws lock tilt and roll positions after alignment to prevent unintentional adjustment.
• Low-profile design keeps the projector close to the ceiling for a minimal visual footprint.
• 360° swivel during installation accommodates any ceiling structural orientation.
• Supports projectors weighing up to 50 lb across an adjustable frame that fits multiple projector body sizes.
• Pitch: +15° / -20°; Roll: ±5° for flexible image positioning in non-standard room geometries.

Technical Specifications
