Peerless-AV PP740 – Paramount Pivot Wall Mount 22-40"

What is the Peerless-AV PP740 pivot wall mount?

The Peerless-AV PP740 is a pull-out pivot wall mount for 22" to 40" commercial displays, rated for up to 80 lb. It's built for installations where the display needs to swing outward and pivot rather than stay fixed flat to the wall — common in corner installations, hallway signage, and huddle rooms where the display has to be visible from multiple angles. Integrators specify the PP740 as a pivot wall mount for commercial displays when the viewing position isn't directly in front of the screen, such as a display mounted at the end of a room or near an entryway. It supports the common 100x100 to 200x200mm VESA range used by most displays in this size class.

What does the Peerless-AV PP740 do?

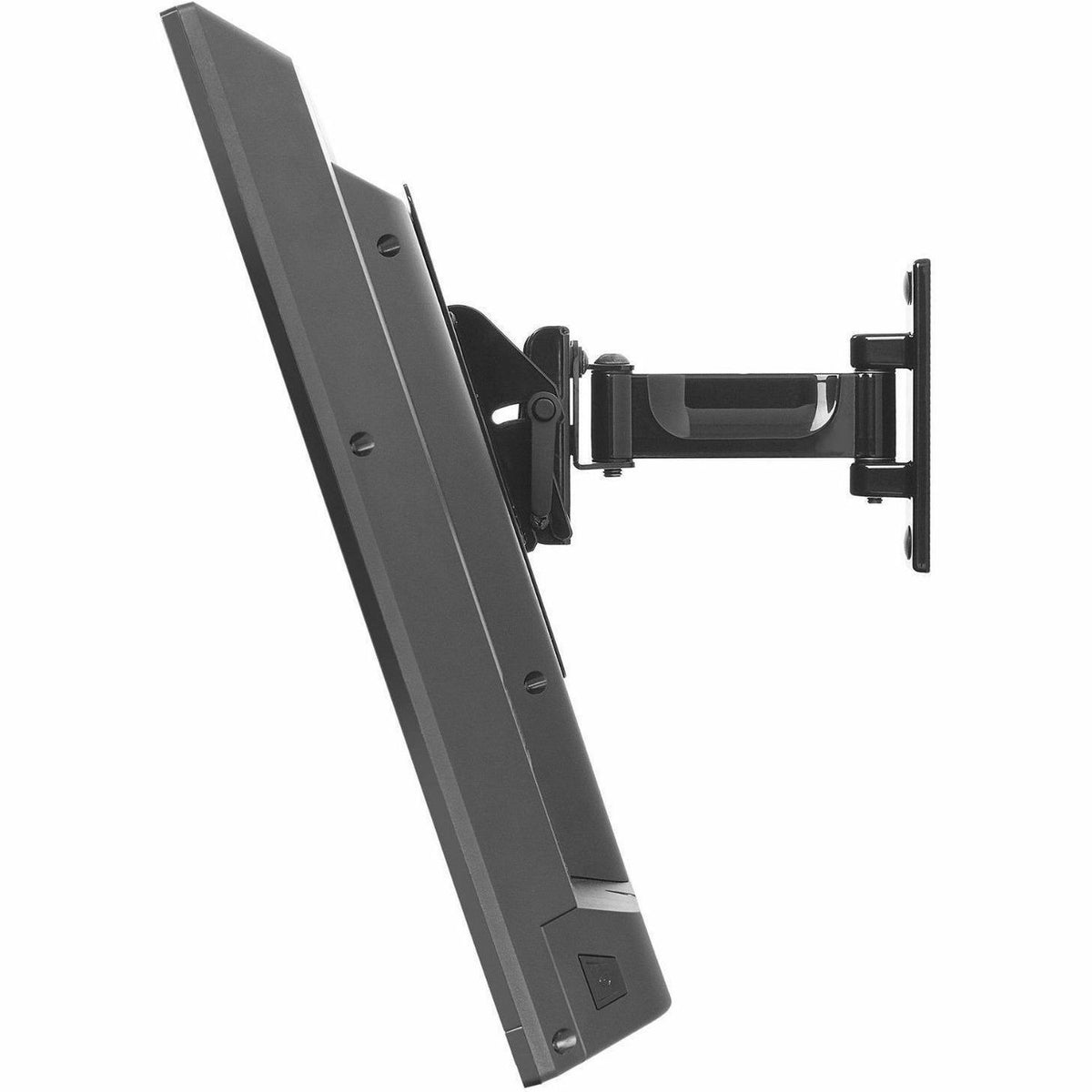

The PP740 pulls the display out from the wall up to 7.43" and retracts to 2.78" for a low-profile position, then pivots up to ±90° so the screen can be angled toward viewers approaching from the side rather than only straight on. Tilt adjusts +15° to -5° for glare and eye-line correction after the display is positioned, and roll adjusts ±5° for post-install leveling. This combination of pull-out and pivot motion is useful in hallway digital signage, corner-mounted huddle room displays, and reception-area screens where foot traffic approaches from an angle rather than head-on. An optional 400x400mm adapter plate (ACC4X4) extends VESA compatibility beyond the mount's native 200x200mm pattern for displays with a wider mounting pattern. The mount is rated for wood stud, concrete, cinder block, and breeze block wall surfaces, and like the rest of the Paramount line, it's UL listed and tested to four times its stated load capacity. Because it's a pivot-style mount rather than a full articulating arm, it's a lighter-weight, lower-cost option when the room only needs angled viewing rather than full extension and swivel range.

What are the key features of the Peerless-AV PP740?

• Pull-out and pivot motion — extends from the wall and pivots up to ±90° for angled viewing positions.
• 80 lb load capacity — supports the full 22"-40" display range, UL tested to four times rated load.
• VESA compatibility — native 100x100 to 200x200mm support, with an optional 400x400mm adapter plate available.
• Tilt and roll adjustment — +15°/-5° tilt and ±5° roll for glare correction and post-install leveling.
• Multi-surface mounting — rated for wood stud, concrete, cinder block, and breeze block walls.
• 5-year limited warranty — backed by Peerless-AV's standard commercial mount warranty.

Technical Specifications
