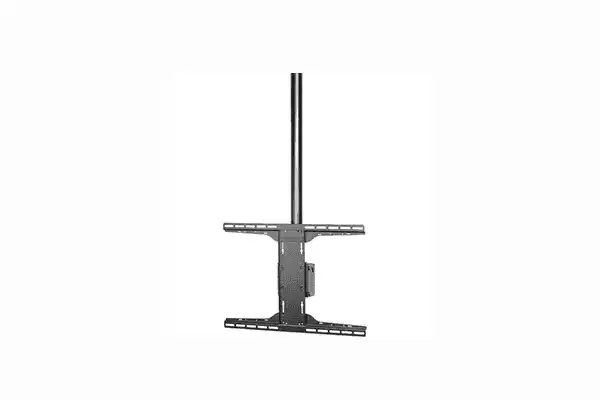

Peerless-AV PLCM-UNL Solid-Point Ceiling Mount with Universal Adapter Plate and Tilt Box

PLCM-UNL – Peerless-AV Solid-Point Flat Panel Straight Column Ceiling Mount with Universal Adapter Plate and Tilt Box

The Peerless-AV PLCM-UNL is a complete ceiling mount kit for flat panel displays up to 90", combining the PLP-UNL universal adapter plate, PLCM-2 tilt box, and a fixed-length 1.5" NPT column to deliver a 30" drop with 360° swivel and 20° tilt for commercial display installations in airports, lobbies, sports facilities, and retail environments.

Product Description

The PLCM-UNL delivers a complete, out-of-the-box ceiling mount solution for flat panel displays in the Peerless-AV Solid-Point system. By combining the universal adapter plate, tilt box, and fixed 33" support pipe in a single kit, it eliminates the component selection complexity that can slow down commercial display projects and ensures all hardware is properly matched before it arrives on site.

The 1.5" NPT pipe system is a key design feature: the standard pipe thread format makes it straightforward to add extension sections when greater drop distance is required, and to connect to the wide range of Peerless-AV ceiling plates designed for different ceiling construction types. This modularity supports the varied structural conditions found in airports, sports venues, hotel lobbies, and retail spaces where ceiling construction varies significantly from location to location.

The included PLCM-2 tilt box provides up to 20° of tilt adjustment and 360° swivel, allowing the display to be aimed at the intended audience after the mount is secured to the ceiling. Theft-resistant security fasteners are included to prevent display removal in unattended public display environments. The display can be mounted in both vertical and horizontal orientations to suit the content and installation requirements of each deployment.

Key Features

• Complete ceiling mount kit includes the PLP-UNL universal adapter plate, PLCM-2 tilt box, and 33" (30" drop) fixed support pipe — all components matched and ready for installation.
• 1.5" NPT pipe thread system allows extension sections to be added for greater drop distances and connects to the full range of Peerless-AV ceiling plates for different construction types.
• Supports display mounting patterns up to 730 x 405mm with a maximum load capacity of 225 lb, covering displays up to 90" in the most common commercial flat panel sizes.
• 360° swivel and up to 20° tilt allow the display to be aimed at the intended audience after the ceiling mount is secured.
• Display can be mounted vertically or horizontally, accommodating portrait and landscape digital signage orientations.
• Theft-resistant security fasteners prevent display removal in unattended public space installations.
• Compatible with standard 1.5" NPT schedule 40 pipe for field customization of drop height.

Typical Applications

The PLCM-UNL is designed for commercial flat panel ceiling mounting in high-traffic public environments including sports facilities, airports, hotel lobbies, retail spaces, and corporate common areas where displays must be suspended from the ceiling at a height appropriate for visibility across the space. Its load capacity, security features, and NPT pipe system make it a standard platform for large-format digital signage installations requiring field-adjustable drop height.

Technical Specifications

Frequently Asked Questions

Can the drop distance be increased beyond the 30" included with the PLCM-UNL?

Yes. The PLCM-UNL uses standard 1.5" NPT Schedule 40 pipe, which allows additional pipe sections to be added to increase the drop distance for installations with higher ceilings. The system is compatible with the full range of Peerless-AV ceiling plates and extensions.

What is the maximum display size the PLCM-UNL can support?

The PLCM-UNL is rated for displays from 32" to 60" with mounting patterns up to 730 x 405mm and a maximum load capacity of 225 lb. Displays up to 90" are noted as compatible where the display’s mounting pattern and weight fall within these limits.

Are security fasteners included, and what do they prevent?

Yes. Theft-resistant penta-pin security fasteners are included with the PLCM-UNL. They prevent display removal by unauthorized individuals in public space installations such as airports, lobbies, and retail environments where unattended displays require tamper protection.
