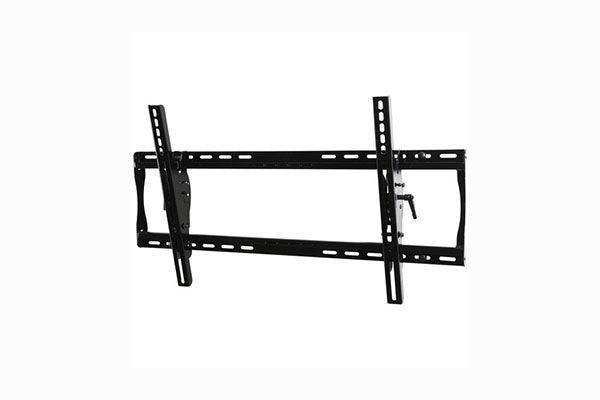

PT650 – Paramount Universal Tilt Wall Mount for 39" to 75" Displays

The Peerless-AV PT650 Paramount Universal Tilt Wall Mount holds flat panel displays from 39" to 75" at 2.5" from the wall, with a tilt range of -5° to +15° and 8" of horizontal adjustment for precise positioning in corporate, education, and commercial AV environments.

Product Description

The PT650 is a practical solution for environments where displays need to be angled for optimal viewing — classrooms, training rooms, conference rooms, and retail spaces where ceiling height or seating arrangements require downward or upward tilt adjustment. The mount positions the display 2.5" from the wall and supports tilt from -5° to +15°, giving installers the range needed to address most viewing angle challenges without resorting to articulating arms or more complex hardware.

Eight inches of horizontal screen adjustment is built into the design, allowing precise left-right positioning during installation to center the display on a wall or align it with architectural features without re-drilling mounting points. The open wall plate design provides access to the wall surface for cable routing and management, keeping signal and power cables organized behind the display rather than running exposed along the wall.

The PT650 is compatible with multiple wall construction types — wood stud, concrete, cinder block, and metal stud (with the appropriate accessory) — making it a versatile choice for large-scale deployments across building types. An optional locking kit allows tilt to be fixed at 5° increments, useful when consistent angles must be maintained across multiple displays in a single facility.

Key Features

• Tilts from -5° to +15°, providing a total 20° tilt range to address viewing angle requirements in rooms with elevated or off-center display placement.
• Holds displays 2.5" from the wall, maintaining a low profile while leaving adequate clearance for cable connections at the rear of the display.
• Provides 8" of horizontal adjustment for accurate left-right centering without requiring additional anchor points.
• Open wall plate design facilitates cable management, keeping wiring routed behind the wall plate and out of sight.
• Compatible with wood stud, concrete, cinder block, and metal stud wall construction (metal stud accessory sold separately).
• Optional locking kit available for fixing tilt at 5° increments, ideal for maintaining consistent display angles across multi-screen deployments.
• Universal design supports a wide range of 39" to 75" flat panel displays with standard VESA mounting patterns.
