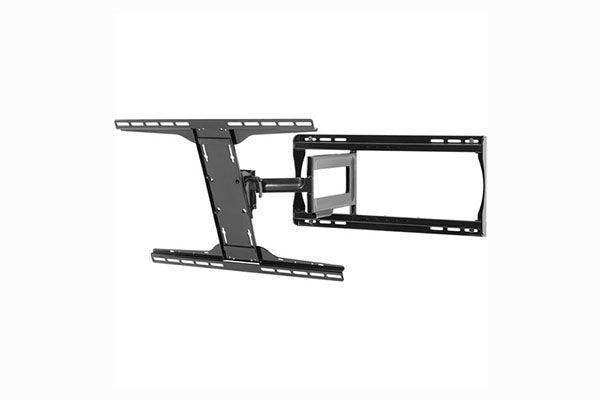

Peerless-AV PA750 – Paramount Articulating Wall Mount for 39"-75"

PA750 – Peerless-AV Paramount Articulating Wall Mount for 39" to 75" Displays

The Peerless-AV PA750 is a full-motion articulating wall mount from the Paramount series, designed to support 39"–75" displays with an extension arm that reaches up to 21.35" from the wall and retracts to just 3.00" when space is at a premium.

Product Description

The PA750 is built around Peerless-AV’s Hook-and-Hang system, which allows a single installer to safely hang a large display without additional assistance. The display connects to a receiver plate, then lifts and locks onto wall-mounted hooks — simplifying what is otherwise a two-person operation with large-format panels.

Once installed, the PA750 provides comprehensive positioning adjustability. The articulating arm extends to 21.35" (542 mm) for close viewing or maintenance access, and retracts fully to 3.00" (76 mm) against the wall for a low-profile presentation. A ratcheting handle controls tilt from +15° to -5°, locking at any point in the range to hold the screen angle precisely and reduce glare from ambient light sources. Left-right pivot reaches ±90° and post-installation roll leveling of ±5° ensures a plumb display even on uneven wall surfaces.

The PA750 accepts VESA mounting patterns from 200×100 mm to 600×400 mm via an I-shaped adaptor plate designed to avoid blocking rear display connections. Integrated cable management channels route and conceal cables along the arm for a finished appearance. The mount is UL Listed and load-tested to four times its stated capacity, providing confidence in long-term structural performance for demanding commercial environments.

Key Features

• Extends up to 21.35" (542 mm) from the wall for flexible viewing distance and maintenance access.
• Retracts to 3.00" (76 mm) for a low-profile, space-saving profile when the arm is folded.
• Hook-and-Hang system enables single-person installation of large-format displays without additional labor.
• Ratcheting tilt handle provides +15°/-5° tilt adjustment with locking capability to hold angle precisely.
• Left-right pivot of ±90° allows the display to face multiple zones from a single mounting point.
• Post-installation roll leveling of ±5° corrects for uneven wall surfaces after the display is hung.
• I-shaped VESA adaptor plate spans 200×100 mm to 600×400 mm patterns without blocking rear panel connections.
• UL Listed and tested to four times stated load capacity; integrated cable management included.
