Peerless-AV PA746 – Paramount Articulating Wall Mount 32-50"

What is the Peerless-AV PA746 articulating wall mount?

The Peerless-AV PA746 is a full-motion articulating TV wall mount built for 32" to 50" commercial displays, supporting up to 80 lb. It is a common specification for conference room and huddle room TV mounts where the display needs to pull off the wall, swivel toward seating, and tilt for glare control. Integrators use the PA746 in commercial articulating display mount projects that call for flexible viewing angles rather than a fixed flat mount, including collaboration spaces, reception areas, and training rooms. The mount is VESA compatible across a wide range of patterns, making it a practical universal wall mount for mid-size commercial displays.

What does the Peerless-AV PA746 do?

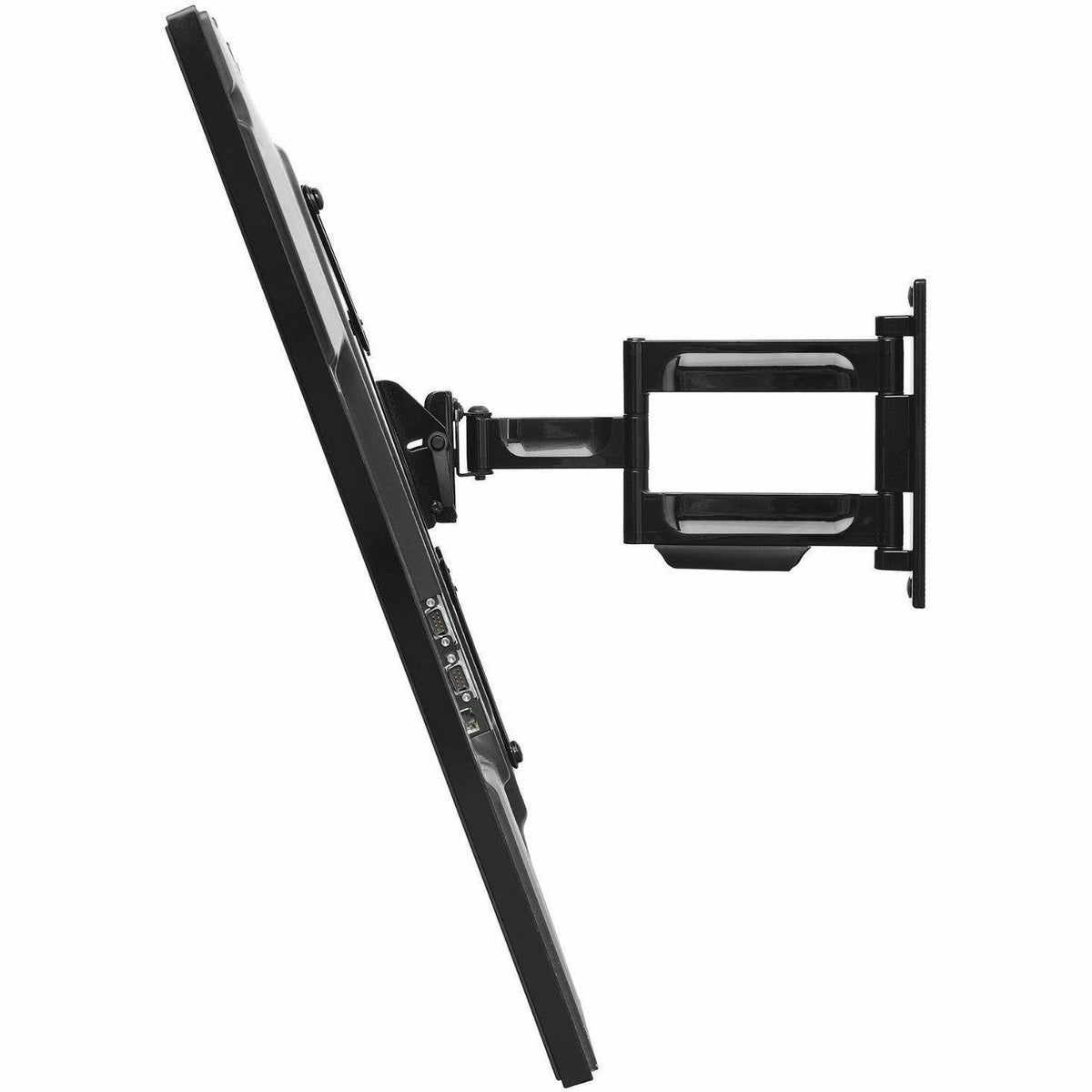

The PA746 extends the display up to 15.08" from the wall and retracts to 2.81" for a low-profile flush position, giving the installer a single mount that handles both close-to-wall viewing and pulled-out, angled viewing for a conference table or huddle room seating arrangement. Tilt adjusts from +15° to -5° for glare and eye-line correction, roll adjusts ±5° for post-install leveling, and the arm pivots up to ±90° so the display can be angled toward either side of the room. VESA compatibility spans 100x100 up to 400x400mm, covering the majority of 32"-50" commercial displays without an adapter plate. Hook-and-Hang installation lets a single installer set the display bracket on the wall plate without a second set of hands holding the screen, which speeds up rack-and-stack style commercial rollouts. Integrated cable management routes HDMI, power, and control cabling behind the arm rather than leaving it exposed, which matters for conference rooms and public-facing spaces where cosmetics count. A ratcheting handle locks the tilt angle once it's set, so the display doesn't drift out of position after commissioning. The mount is rated for wood stud, concrete, cinder block, and breeze block wall surfaces, covering most commercial construction types an integrator will encounter, and it's UL listed and tested to four times its stated load capacity for commercial-grade reliability.

What are the key features of the Peerless-AV PA746?

• Full articulation — extends, tilts, rolls, and pivots so the display can be positioned for the exact sightline needed in a conference or huddle room.
• 80 lb load capacity — supports the full 32"-50" commercial display range with UL testing to four times the rated load.
• Wide VESA compatibility — covers 100x100mm through 400x400mm patterns without requiring a separate adapter plate.
• Hook-and-Hang installation — a single installer can hang the display on the wall plate without extra hands.

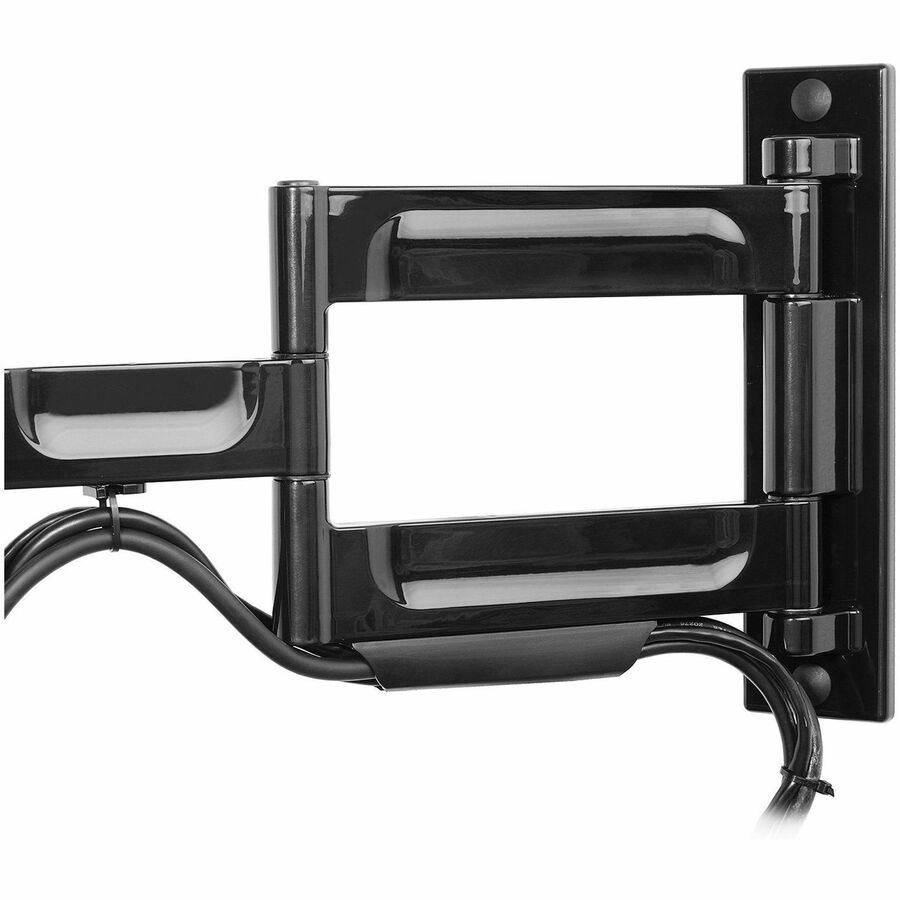

• Integrated cable management — routes AV and power cabling behind the arm for a cleaner finished installation.
• Ratcheting tilt lock — secures the tilt angle after adjustment so the display holds position over time.
• Multi-surface mounting — rated for wood stud, concrete, cinder block, and breeze block walls.

Technical Specifications
