Peerless-AV PA740 – Paramount Articulating Wall Mount 22-43"
Peerless-AV PA740 – Paramount Articulating Wall Mount 22-43" is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
What is the Peerless-AV PA740 articulating wall mount?
The Peerless-AV PA740 is a full-motion articulating TV wall mount for 22" to 43" commercial displays, rated for up to 80 lb. It's a frequent spec for huddle room and small conference room TV mounts where the display needs to extend off the wall, swivel toward the table, and tilt for glare correction rather than sit in a fixed flat position. Integrators use the PA740 on commercial articulating display mount projects in small meeting spaces, reception areas, and training rooms where flexible sightlines matter more than a minimal wall profile. It covers the common 100x100 to 200x200mm VESA range used by most 22"-43" commercial displays.

What does the Peerless-AV PA740 do?

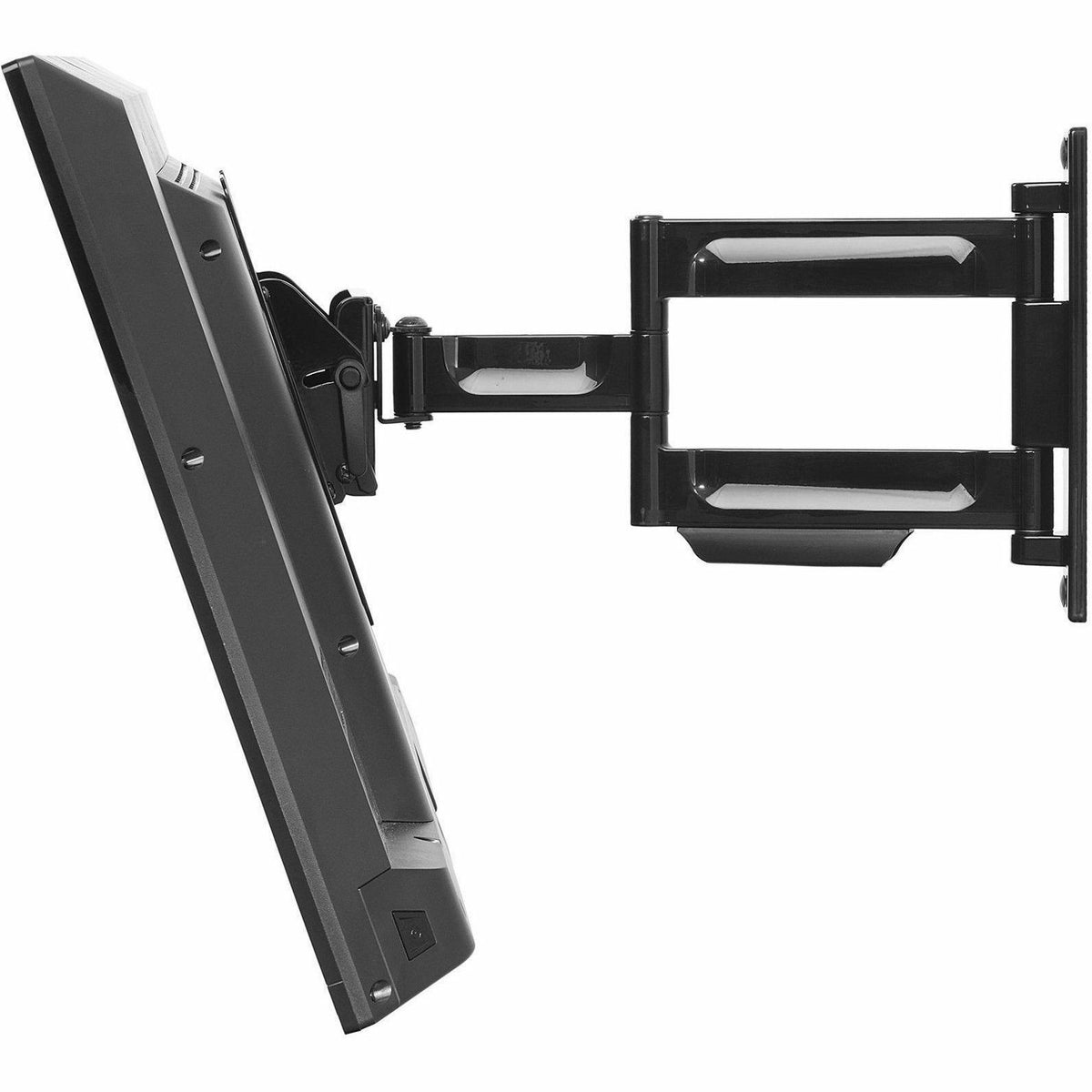

The PA740 extends the display up to 14.90" from the wall and retracts to 2.80" for a low-profile flush position, letting one mount handle both a close-to-wall installation and a pulled-out, angled position for a small conference table or huddle room seating cluster. Tilt runs +15° to -5° for glare and eye-line correction, roll adjusts ±5° for leveling after install, and the arm pivots up to ±90° so the display can swing toward either side of the room. Hook-and-Hang installation lets a single technician hang the display bracket onto the wall plate without a second person supporting the screen, which speeds up install time on multi-room huddle space rollouts. Integrated cable management keeps HDMI, network, and power cabling routed behind the arm instead of hanging loose, which matters in small meeting rooms where the display and mount are highly visible. A ratcheting handle locks the tilt angle in place once it's set, so the display holds its position through normal use rather than drifting over time. The mount is rated for wood stud, concrete, cinder block, and breeze block walls, covering the wall types most commonly encountered on commercial huddle room and small conference room builds, and it's UL listed and tested to four times its stated load rating.

What are the key features of the Peerless-AV PA740?
- Full articulation — extends, tilts, rolls, and pivots to dial in the exact sightline for a huddle room or small conference room.
- 80 lb load capacity — supports the full 22"-43" commercial display range, UL tested to four times rated load.
- VESA compatibility — covers 100x100 through 200x200mm patterns common on small and mid-size commercial displays.
- Hook-and-Hang installation — a single installer can hang the display without extra hands supporting the screen.

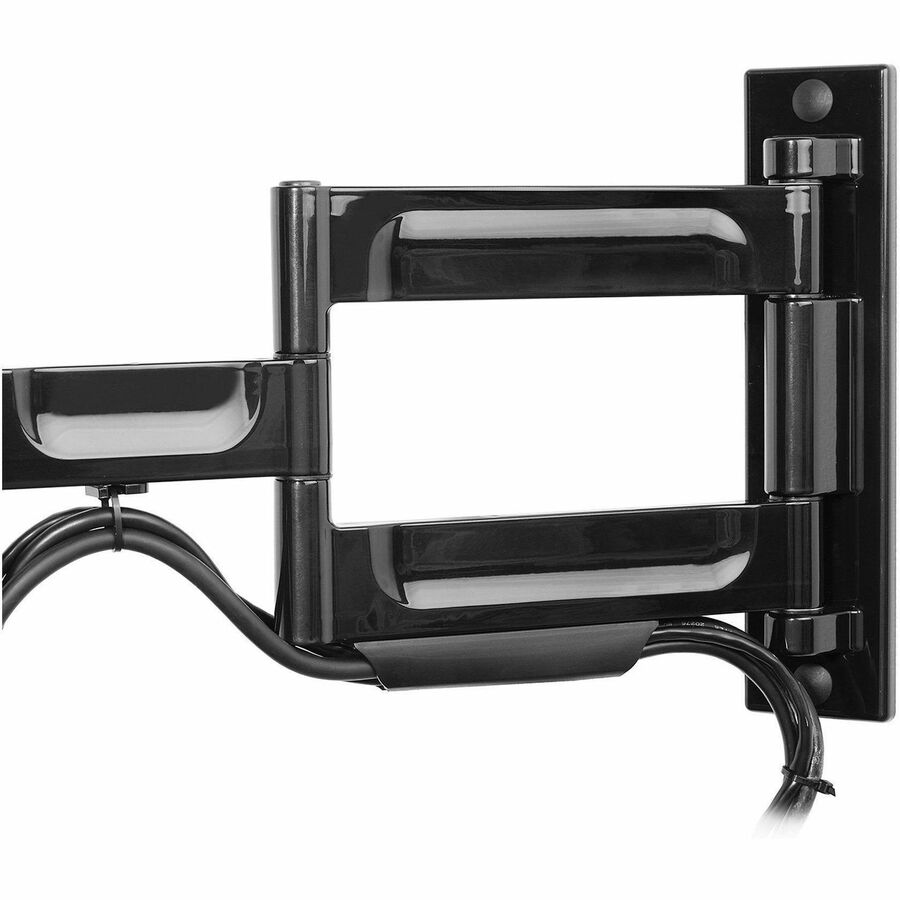

- Integrated cable management — keeps AV and power cabling routed behind the arm for a clean finished install.
- Ratcheting tilt lock — holds the set tilt angle in place after commissioning.
- Multi-surface mounting — rated for wood stud, concrete, cinder block, and breeze block walls.

Technical Specifications
| Display Compatibility | 22" to 43" |
| Max Load Capacity | 80 lb |
| Mount Weight | 4.50 lb |
| VESA Patterns | 100x100, 200x100, or 200x200mm |
| Extension / Retraction | 14.90" extended / 2.80" retracted |
| Tilt / Roll / Pivot | +15°/-5° tilt, ±5° roll, ±90° pivot |
| Dimensions | 8.74"H x 9.40"W x 14.90"D |
| Finish | Gloss black fused epoxy |
| Certifications | RoHS, TAA, VESA, UL, OSHPD |
| Warranty | 5-year limited |
