Peerless-AV OWMAM – Neptune Outdoor Articulating Wall Mount 42-75in

What is the Peerless-AV OWMAM outdoor articulating wall mount?

The Peerless-AV OWMAM, part of the Neptune series, is an outdoor-rated articulating wall mount for 42" to 75" outdoor TVs and displays. Built with corrosion-resistant materials and an anti-corrosive e-coating, it is engineered for exterior, all-season installation rather than an indoor mount repurposed for a covered patio. Integrators spec the OWMAM for outdoor TV mount projects at restaurants, sports bars, hospitality patios, and stadium concourses where the mount itself — not just the display — has to withstand year-round weather exposure. It extends up to 22.72" from the wall, tilts -5° to +15°, and carries a 150 lb (68.04kg) weight capacity.

What does the Peerless-AV OWMAM do?

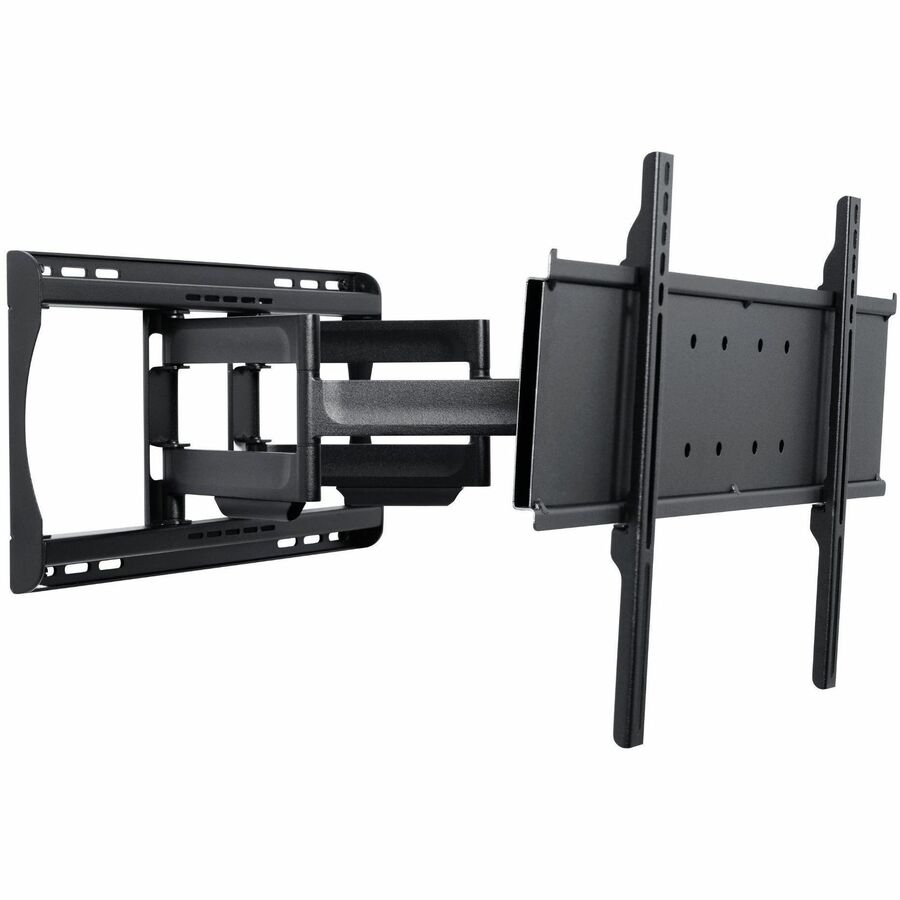

The OWMAM's articulating arm extends an outdoor display up to 22.72" from the wall and fully retracts to 4.50" for a lower-profile installed position, giving venues a full-motion outdoor TV mount rather than a fixed exterior bracket. IncreLok tilt runs from -5° to +15°, letting installers angle the display for overhead glare or elevated mounting positions common on patios and building exteriors. The mount's corrosion-resistant materials and anti-corrosive e-coating are built for continuous outdoor exposure, distinguishing it from an indoor articulating mount that would rust or degrade under sun and moisture over a single season. Integrated cable management protects, contains, and conceals cabling between the wall and display, which matters for an outdoor install where exposed cable runs are both an eyesore and a weatherproofing liability. VESA support covers both the 600 x 400mm standard pattern and the 730 x 405mm pattern used on several outdoor-rated display models, and the 150 lb capacity covers large-format outdoor LCD panels intended for direct sun and weather exposure. Installation supports wood stud, concrete, cinder block, and breeze block surfaces, giving integrators flexibility across masonry building exteriors and framed patio structures. The OWMAM carries a 5-year limited warranty and RoHS compliance.

Key Features

• Corrosion-resistant outdoor construction — anti-corrosive e-coating and weather-resistant materials built for continuous exterior exposure.
• 22.72" extension with -5° to +15° IncreLok tilt — full-motion positioning to manage glare and elevated mounting angles outdoors.
• 150 lb weight capacity — rated for large-format 42"-75" outdoor displays.
• Dual VESA support — compatible with both 600 x 400mm and 730 x 405mm outdoor display patterns.
• Integrated cable management — protects and conceals cabling from weather exposure between the wall and display.
• Multi-surface installation — mounts to wood stud, concrete, cinder block, or breeze block exteriors.
• 5-year limited warranty — with RoHS compliance for outdoor commercial deployment.

Typical Applications

• Retail storefront
• QSR/drive-thru
• Stadium/venue
• Hospitality spaces
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

Is the OWMAM rated for permanent outdoor installation, or is it an indoor mount used outside?
It is purpose-built for permanent outdoor, all-season installation, using corrosion-resistant materials and an anti-corrosive e-coating rather than being an indoor mount adapted for exterior use.

What outdoor display sizes and weights does the OWMAM support?
42" to 75" outdoor displays up to 150 lb (68.04kg), with VESA compatibility at both 600 x 400mm and 730 x 405mm.

Does the mount have an IP rating?
Peerless-AV's published documentation for the OWMAM does not list a specific IP rating; the mount's outdoor suitability is based on its corrosion-resistant materials and e-coating. Confirm environmental requirements with Creation Networks for spec-critical projects.

How far can the display be pulled out from the wall?
Up to 22.72" from the wall, retracting to 4.50" for a lower-profile position when full extension isn't needed.

What wall surfaces can the OWMAM be installed on?
Wood stud, concrete, cinder block, and breeze block, covering most exterior building construction types.

What is the warranty on the OWMAM?
Peerless-AV backs the OWMAM with a 5-year limited warranty.

Does Creation Networks pair outdoor displays with this mount for a full turnkey installation?
Yes, Creation Networks supplies and installs complete outdoor AV systems including weatherproof displays and outdoor-rated mounting hardware for retail, QSR, and venue projects nationwide.
