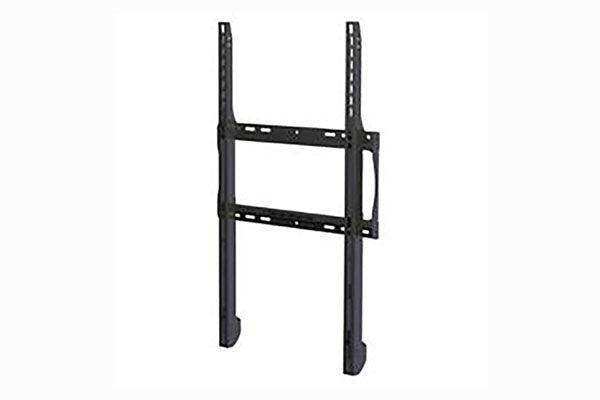

Peerless-AV ESF655P – Outdoor Universal Flat Wall Mount for 42"-80" Portrait Displays

ESF655P – Peerless-AV Outdoor Universal Flat Wall Mount for 42" to 80" Portrait Displays

The Peerless-AV ESF655P is an outdoor-rated universal flat wall mount designed for portrait-orientation displays from 42 to 80 inches in permanent exterior commercial AV installations requiring corrosion resistance and tamper deterrence.

Product Description

Mounting a display outdoors introduces corrosion, weathering, and physical security challenges that standard indoor mounts are not built to address. The ESF655P is engineered specifically for exterior environments with an E-Coat corrosion-resistant finish and fully plated hardware, providing long-term protection against the oxidation and surface degradation that outdoor exposure causes on untreated steel mounting hardware.

The portrait orientation design positions the display vertically, which is the standard orientation for outdoor digital signage applications including wayfinding pillars, menu boards, promotional displays at building entries, and high-visibility advertising panels in public spaces. Mounting patterns up to 450 x 745mm (17.73 x 29.31 inches) and VESA compliance up to 400 x 600mm ensure compatibility with the portrait-oriented commercial displays commonly specified in outdoor signage projects.

The open wall plate design keeps the display only 1.77 inches from the wall while providing full wall access for electrical connections and cable management. Universal adaptor plates hook onto the wall plate for fast installation, and a safety latch ensures the display remains securely attached once seated. Tamper-resistant hardware deters unauthorized removal in high-traffic public locations. Available from Creation Networks at creationnetworks.net.

Key Features

• E-Coat corrosion-resistant finish — An electrocoating process applied to the mount body provides corrosion protection appropriate for permanent outdoor exposure in commercial AV installations.
• Fully plated hardware — All fasteners and hardware are plated to resist the corrosion that standard hardware experiences in outdoor environments over time.
• Portrait orientation — Designed for vertical display positioning, matching the standard orientation used in outdoor wayfinding, menu board, and digital signage applications.
• 150 lb maximum load capacity — Supports commercial-grade outdoor displays up to 150 lbs for the supported size range.
• VESA compliance up to 400 x 600mm — Covers standard portrait VESA patterns; mounts displays with patterns up to 450 x 745mm total.
• Open wall plate design — Maintains only 1.77-inch display-to-wall clearance while providing complete access to the wall surface for electrical rough-in and cable management.
• Hook-and-Hang installation — Universal adaptor plates hook onto the wall plate for straightforward installation without requiring a second person to hold the display during mounting.
• Tamper-resistant hardware and safety latch — Deters theft and unauthorized removal in unsupervised outdoor locations; safety latch ensures the display stays on the wall plate after installation.

Typical Applications

The ESF655P is specified for permanent exterior digital signage installations including outdoor wayfinding pillars, building-entry menu boards, sports venue perimeter displays, transit hub information panels, and outdoor retail promotional signage where a portrait-format display requires a weatherproof, corrosion-resistant mounting solution with tamper deterrence.

Technical Specifications

Frequently Asked Questions

Is the ESF655P suitable for year-round outdoor use in climates with rain and humidity?

Yes. The E-Coat finish and fully plated hardware are specifically designed to resist corrosion from outdoor exposure including rain, humidity, and salt air. For the most demanding coastal or industrial outdoor environments, confirm the specific environmental rating with the Creation Networks team at creationnetworks.net.

Can the ESF655P mount a 55-inch portrait display?

Yes. The ESF655P supports displays from 42 to 80 inches in portrait orientation. A 55-inch display will be within the supported size and weight range provided the display's VESA pattern does not exceed 450 x 745mm and the display weight does not exceed 150 lbs.

What prevents the display from being removed by unauthorized individuals?

The ESF655P includes tamper-resistant hardware that requires a specific tool for removal, deterring opportunistic theft in public spaces. A safety latch also ensures the display cannot be lifted off the wall plate without releasing the latch mechanism first.
