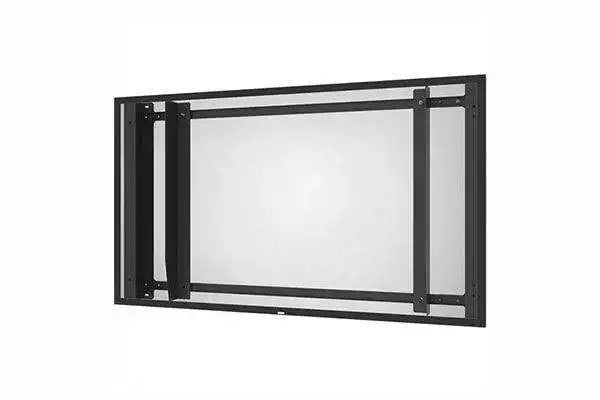

Peerless-AV EWL-OH46F – Outdoor Tilt Mount for Samsung OH46F Landscape

Product Overview

The Peerless-AV EWL-OH46F is an outdoor landscape tilt wall mount designed exclusively for the Samsung 46" OH46F Smart Signage outdoor display. Built entirely from weatherproof and corrosion-resistant materials, the EWL-OH46F is engineered for permanent exterior installation in demanding environments including retail storefronts, mass transit platforms, quick-service restaurant drive-throughs, stadium concourses, and campus wayfinding deployments. The mount's integrated air baffles separate exhaust from intake airflow, maintaining the Samsung OH46F's required thermal operating conditions without modification to the display's native cooling architecture. Security hardware deters tampering and unauthorized removal, while the enclosed wall plate conceals all cabling and mounting hardware for a finished exterior appearance.

Product Description

The EWL-OH46F was developed as a purpose-specific mount for the Samsung OH46F outdoor display — not a generic outdoor bracket — which means the adaptor hook geometry, wall plate dimensions, and air baffle positions are matched precisely to the OH46F's form factor and thermal requirements. The adapter hooks onto the wall channel to simplify the installation process and allow the display to be hung and positioned by a single technician before final securing, reducing the need for lift equipment in elevated exterior mounting scenarios. Air baffles integral to the mount design physically separate the display's exhaust air path from its intake, preventing the recirculation of hot air that would reduce the OH46F's operating life in warm climates or high solar load environments. All structural components are constructed from corrosion-resistant materials rated for continuous outdoor exposure, including UV, moisture, and temperature cycling across the full range of North American and tropical climates. A tilt mechanism allows the display angle to be set for glare reduction from direct sunlight or overhead lighting in covered exterior areas. All cables and mount hardware are routed through the enclosed wall plate, eliminating exposed wiring that would be subject to weather damage and providing a finished appearance consistent with permanent architectural signage installations.

Key Features

• Exclusive Samsung OH46F Compatibility — Designed specifically for the Samsung 46" OH46F outdoor display, with geometry matched to its mounting pattern, weight, and form factor.
• Weatherproof and Corrosion-Resistant Construction — All structural components are rated for permanent outdoor installation in UV, moisture, and temperature-cycling environments.
• Integrated Air Baffles — Physically separate the display's exhaust and intake air paths to prevent hot-air recirculation and maintain proper thermal management of the Samsung OH46F.
• Adaptor Hook Wall Channel System — Simplifies installation by allowing the mount and display to be positioned on the wall channel before final securing, reducing lift equipment requirements.
• Tilt Adjustment — Adjustable tilt angle reduces glare from direct sunlight and optimizes viewing angle for pedestrian sight lines in landscape orientation.
• Security Hardware — Anti-tamper fasteners deter unauthorized access, removal, or repositioning of the display in public-facing exterior locations.
• Concealed Cable Routing — Enclosed wall plate hides all signal, power, and network cabling behind the mount face for a clean exterior installation appearance.
• Small Footprint Wall Plate — Minimized wall plate reduces the chance of interference with wall-run conduit, cable trays, or structural elements behind the mounting surface.
• Display Spaced Off Wall — Proper standoff distance maintains the OH46F's rear ventilation clearances and prevents heat buildup between the display and mounting surface.

Typical Applications

• Retail storefront and drive-through digital signage
• Mass transit platform and station information displays
• Stadium concourse and outdoor venue event information boards
• Quick-service restaurant outdoor menu and promotional boards
• Campus and corporate exterior wayfinding and directory displays
• Hospitality pool area and outdoor entertainment display mounting

Technical Specifications

Frequently Asked Questions

Q: Will the EWL-OH46F work with other 46" outdoor displays from Samsung or other brands?

A: No. The EWL-OH46F is designed exclusively for the Samsung OH46F outdoor display. The mount geometry, air baffle positions, and adaptor hook system are matched to the OH46F's specific form factor and ventilation architecture. Using it with a different display model is not recommended and may void the Peerless-AV warranty.

Q: How does the mount manage heat from the Samsung OH46F?

A: The EWL-OH46F includes integral air baffles that physically separate the Samsung OH46F's exhaust air from its intake air path. This prevents hot exhaust air from recirculating back into the display's intake, maintaining proper thermal management during extended outdoor operation in warm environments.

Q: What type of wall or surface is required for installation?

A: The mount installs to a solid wall surface capable of supporting the combined weight of the mount and the Samsung OH46F display. Concrete, masonry, and steel-framed exterior walls are typical mounting surfaces. Follow Peerless-AV's installation guide for anchor and fastener requirements specific to your wall substrate.

Q: Is the mount resistant to corrosion from saltwater environments?

A: The EWL-OH46F is constructed from weatherproof and corrosion-resistant materials rated for outdoor use. For installations within close proximity to saltwater environments (coastal signage, marine facilities), confirm the specific corrosion rating with Peerless-AV technical support before specifying.

Q: How is the display secured against tampering or theft?

A: The EWL-OH46F includes security hardware with anti-tamper fasteners that require specialized tools to remove, deterring unauthorized access or theft in public-facing outdoor locations.

Q: Does this mount support portrait orientation?

A: No. The EWL-OH46F is designed for landscape orientation only. For portrait-oriented outdoor mounting of the Samsung OH46F, consult Peerless-AV or contact us at creationnetworks.net for alternative mounting options.
