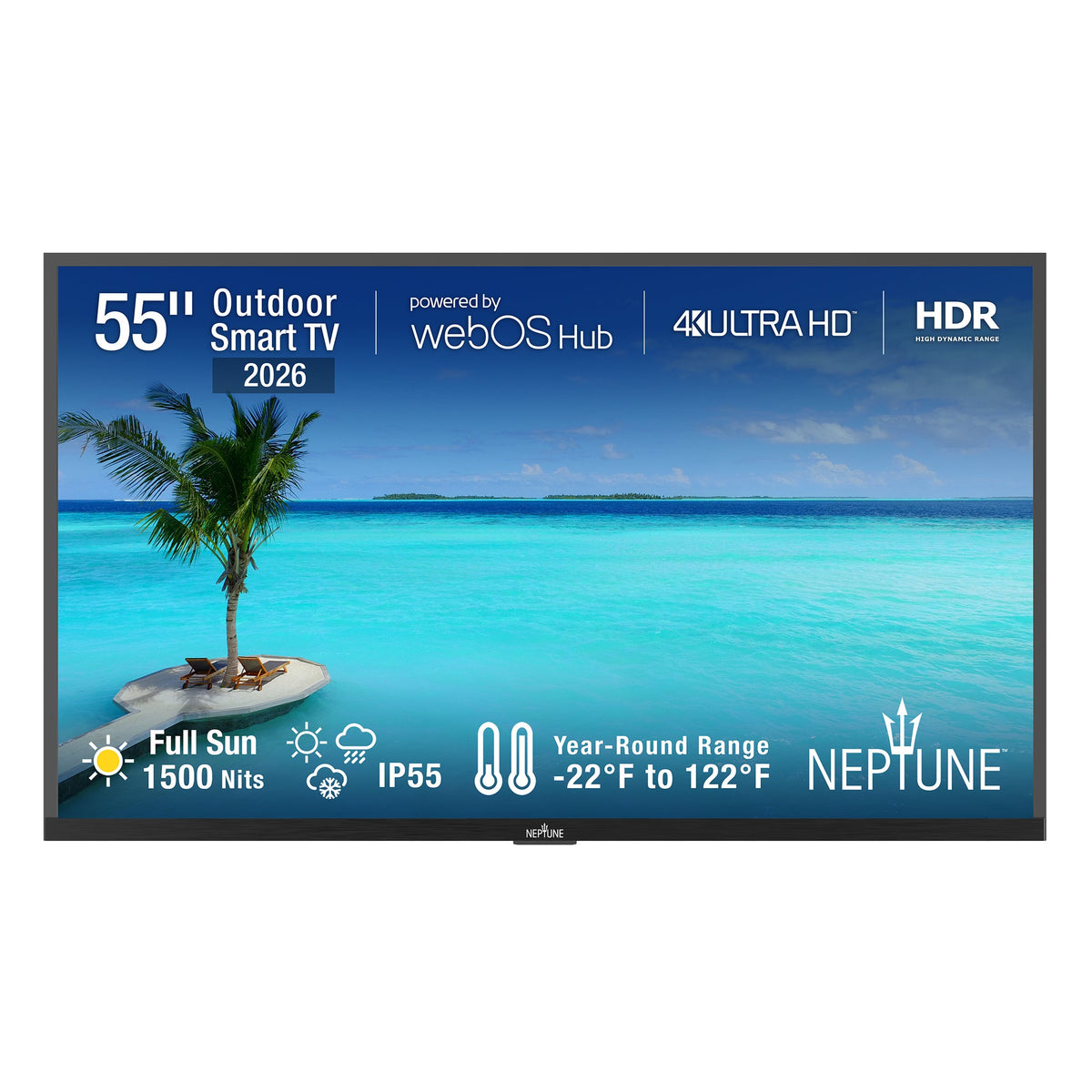

Peerless-AV ODTV5504 – 55" Full Sun Outdoor Smart TV with Tilting Wall Mount

What is the Peerless-AV ODTV5504?

The Peerless-AV ODTV5504 is a 55-inch full sun outdoor smart TV bundled with an outdoor tilting wall mount, giving integrators a complete outdoor TV with mount package under one SKU. It is built on Peerless-AV's Neptune Full Sun display platform, engineered for direct sunlight readability in permanent outdoor installations rather than adapted from an indoor television. This is a common fit for patio bars, pool decks, and outdoor dining areas that need a 4K outdoor smart TV running unattended in real weather. Because the tilting wall mount is included, procurement and install for this outdoor TV mount combination is handled in a single order rather than pairing separate display and mount SKUs.

What does the Peerless-AV ODTV5504 do?

The display produces a 3840 x 2160 4K UHD image on an IPS LCD panel with a 178° viewing angle and HDR10 with 10-bit color support, keeping image quality consistent across the range of seating angles typical in outdoor dining and lounge layouts. It carries the Neptune Full Sun family's IP55 ingress rating and -22°F to 122°F operating range, so the panel is designed to run 24/7 outdoors through both summer heat and winter cold without a supplemental enclosure. A built-in webOS smart platform provides native streaming app access without requiring an external signage player, simplifying the equipment stack for a straightforward outdoor TV install. The included tilting wall mount is weatherized to match the display's environmental rating and lets installers set downward viewing angle for elevated mounting positions common on covered patios. Connectivity spans 3x HDMI 2.1, coax, RCA, optical audio, USB 2.0, Ethernet, and RS-232, giving integrators both AV switching and hardwired control integration options. Dual-band 802.11ac Wi-Fi supports content management and casting where a hardwired network run is impractical. Integrated 2x 8W speakers cover ambient background audio for casual outdoor viewing.

What are the key features of the Peerless-AV ODTV5504?

• Outdoor tilting wall mount included — one SKU covers display and weatherized mount.
• Full Sun display class — built for direct sunlight legibility, not adapted indoor hardware.
• IP55 weatherization — sealed for continuous outdoor operation.
• -22°F to 122°F operating range — handles seasonal temperature extremes.
• HDR10 with 10-bit color — accurate, high-contrast 4K outdoor image reproduction.
• Built-in webOS smart platform — native streaming without a separate player.
• RS-232/Ethernet control — integrates with commercial AV control systems.
• 3-year manufacturer warranty — outdoor-duty coverage on the display.

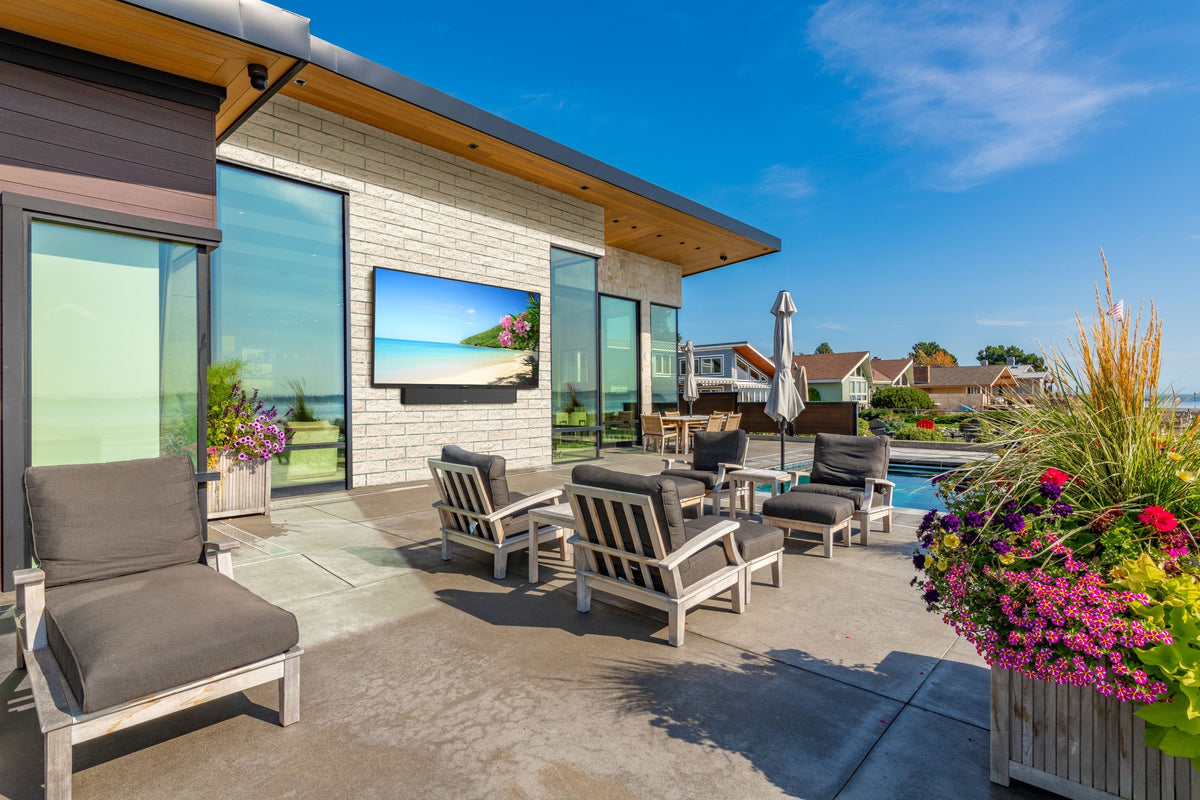

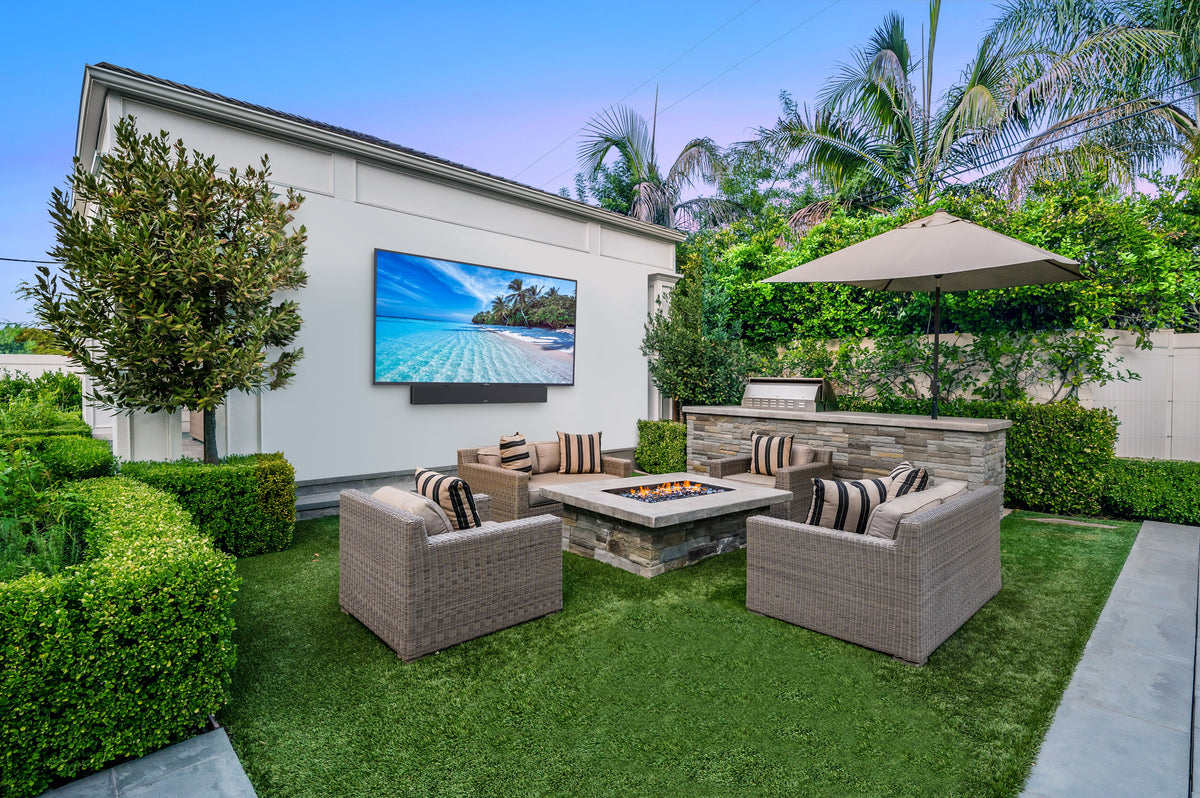

Where is the Peerless-AV ODTV5504 typically used?

• Resort and hospitality pool decks
• QSR and restaurant patio dining areas
• Retail storefront and outdoor display areas
• Stadium and venue concourses

Technical Specifications

Frequently Asked Questions

Does the mount ship attached to the TV?
No, the display and outdoor tilting wall mount ship as separate components in the same order and are assembled during installation.

Is the included mount rated for outdoor use?
Yes, the bundled tilting wall mount is weatherized to match the display's IP55 environmental rating.

Can this display integrate with a commercial AV control system?
Yes. RS-232 and Ethernet control ports allow integration with standard commercial control processors and AV-over-IP switching.

How does the ODTV5504 differ from the ODTV5504-1500?
Both are 55" Neptune Full Sun panels bundled with an outdoor tilting wall mount. Confirm current brightness spec and bundle configuration with Creation Networks for a specific project, as Peerless-AV markets these under separate retail SKUs.

What is the warranty on this display?
The display carries a 3-year manufacturer warranty. Creation Networks manages warranty coordination and provides installation and ongoing support.

Does Creation Networks install this TV?
Yes, Creation Networks provides design, installation, and commissioning services for outdoor smart TV deployments nationwide.
