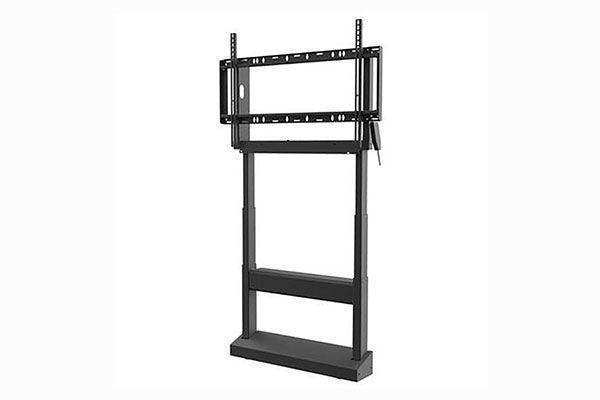

Peerless-AV SS598ML3 – Motorized Height Adjustable Display Stand

Product Overview

The Peerless-AV SS598ML3 is a motorized height adjustable stand and wall mount built for 42" to 86" interactive displays. With UL recognized actuators that raise or lower a display up to 25.6" at the touch of a button, it gives standing, seated, and ADA users comfortable access to a single touchscreen. This motorized display stand is purpose-built for education, training rooms, and collaborative commercial spaces where an interactive flat panel is shared across many users.

Product Description

The SS598ML3 SmartMount Motorized Height Adjustable Stand/Wall Mount was designed to safely mount, raise, and lower an interactive display in active commercial environments. The highly stable, pre-assembled base can rest freestanding on the floor or be bolted directly to the floor or wall, giving integrators flexibility on how to deploy each room. A safety limit switch automatically reverses direction and stops when a collision is detected from an upward, downward, or lateral force, protecting both users and hardware during motorized travel. The textured black powder coat finish helps hide fingerprints and dust in high-touch settings.

A universal display adaptor accommodates mounting patterns from 200 x 200 up to 800 x 600 mm, covering the full 42" to 86" range of interactive panels. The rear wall plate provides access to mount a Peerless-AV surge protector or a mini PC such as a Dell OptiPlex Micro or Intel NUC, while a support cover hides hardware and doubles as a shelf for digital pens and erasers. Leveling legs let installers true up the stand on uneven floors. For comparable display mounting solutions, browse the full Peerless-AV collection at Creation Networks.

Key Features

• Motorized height adjustment — UL recognized actuators raise or lower the display up to 25.6" (650 mm) at the touch of a button.
• Wide display compatibility — Supports 42" to 86" interactive displays with mounting patterns up to 800 x 600 mm.
• 280 lb load capacity — The mount safely carries displays weighing up to 280 lb (127 kg).
• ADA compliant — Complies with the ADA Standards for Accessible Design, Section 308, for inclusive access.
• Collision safety limit switch — Travel automatically reverses and stops when an upward, downward, or lateral obstruction is detected.
• Floor or wall installation — The stable base can stand freely or bolt directly to the floor or wall.
• Integrated device storage — The rear plate accommodates a mini PC or surge protector, with up to 29"W x 13.5"H x 4"D of space.
• Leveling legs — Adjustable legs position the stand correctly even on uneven surfaces.

Typical Applications

• Education classrooms and lecture halls
• Corporate training rooms
• Huddle rooms and collaboration spaces
• Conference and meeting rooms
• Government and municipal meeting spaces
• Healthcare consultation and briefing areas

Technical Specifications

Frequently Asked Questions

What display sizes does the SS598ML3 support?
It is designed for 42" to 86" interactive displays with mounting patterns up to 800 x 600 mm.

How far does the display travel vertically?
The motorized actuators raise or lower the display up to 25.6" (650 mm), positioning the display center between 34" and 60" from the floor.

Can it be installed without bolting it down?
Yes. The stable, pre-assembled base can stand freely on the floor, or be bolted to the floor or wall for added security.

Is it safe for shared, high-traffic use?
A safety limit switch automatically reverses and stops travel when a collision is detected from an upward, downward, or lateral force.

Does it accommodate a mini PC?
Yes. The rear wall plate provides up to 29"W x 13.5"H x 4"D of space for a mini PC or surge protector.

Is the stand ADA compliant?
Yes. It complies with the ADA Standards for Accessible Design, Section 308.

What warranty is included?
The SS598ML3 carries a Peerless-AV limited 5-year warranty.
