Peerless-AV SR598ML3E – Motorized Display Cart 42-86"

Product Overview

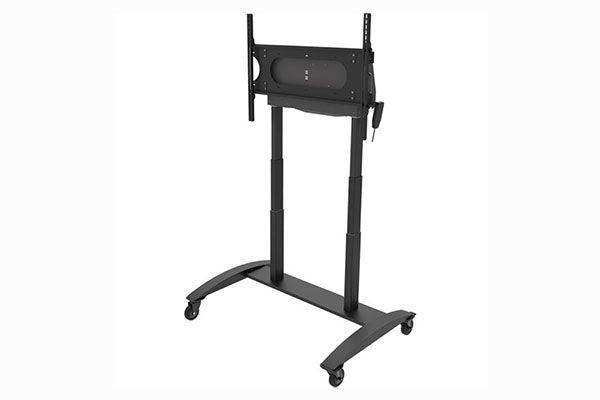

The Peerless-AV SR598ML3E is a SmartMount motorized height adjustable flat panel cart built to mount, move, and store 42" to 86" interactive displays. Push-button electric lift raises or lowers the screen up to 25.6" (650mm), making a single touchscreen serviceable for seated and standing users across conference rooms, classrooms, and training spaces. This commercial-grade mobile cart pairs UL-recognized actuators with a 280 lb load rating and locking casters, giving integrators a stable, ADA-conscious platform for interactive collaboration.

Product Description

The SR598ML3E is designed for interactive flat panels that move between rooms and serve mixed audiences. UL-recognized actuators adjust the center of the display from 34" to 60" from the floor at the touch of a button, and a safety limit switch automatically reverses and stops travel when it detects a collision in the upward, downward, or lateral direction. The welded base with pre-assembled 4" swivel casters, two of which lock, provides a stable foundation for touch applications, while integrated handles and corner bumpers make it easy to move the cart through a facility without damaging walls or doorways.

A rear enclosure provides roughly 10"W x 8"H x 4"D of secure storage for a mini PC such as a Dell OptiPlex Micro, HP 260 G2, Lenovo M600 Tiny, or Intel NUC, with mounting locations for external Wi-Fi antennas and a cord wrap for cable management. The universal display adaptor fits VESA patterns from 200 x 200 up to 800 x 600mm, and the included Peerless-AV PVP1200-CPL6 six-outlet surge protector supplies clean power to the display and connected gear. The cart complies with the ADA Standards for Accessible Design, Section 308, and carries UL 962 listing with complementary UL1678 listing. For comparable carts, stands, and interactive mounting hardware, browse the full Peerless-AV collection at Creation Networks.

Key Features

• Push-Button Motorized Lift — UL-recognized actuators raise or lower the display up to 25.6" (650mm) at the touch of a button.
• 34"-60" Viewing Range — The center of the display adjusts from 34" to 60" from the floor to serve seated and standing users.
• 280 lb Load Capacity — Supports interactive flat panels from 42" to 86" weighing up to 280 lb (127 kg).
• Collision Safety Switch — A safety limit switch automatically reverses direction and stops when it detects an upward, downward, or lateral force.
• Universal Display Adaptor — Fits VESA mounting patterns from 200 x 200 up to 800 x 600mm with an open frame that helps prevent input port interference.
• Integrated PC Storage — The rear enclosure offers about 10"W x 8"H x 4"D of secure space for a mini PC plus mounting points for external Wi-Fi antennas.
• Included Surge Protector — Ships with the Peerless-AV PVP1200-CPL6 six-outlet surge protector (15 ft cord, 2160 joule, 15A/120V/1800W).
• Mobile and Stable — 4" (102mm) swivel casters with two locking, a welded base, integrated handles, and corner bumpers allow safe room-to-room moves.
• Plumb Adjustment — +2 degrees / -4 degrees of plumb adjustment keeps even the heaviest displays level.
• ADA and UL Compliance — Complies with ADA Standards Section 308 and carries UL 962 listing with complementary UL1678 listing.

Typical Applications

• Conference rooms and huddle rooms
• Training rooms and all-hands rooms
• Classrooms and education spaces
• Corporate and commercial meeting spaces
• Multi-purpose and collaboration rooms
• Healthcare and government training facilities

Technical Specifications

Frequently Asked Questions

What display sizes and weights does the SR598ML3E support?
It mounts 42" to 86" interactive displays up to 280 lb (127 kg) using VESA patterns from 200 x 200 up to 800 x 600mm.

How far does the cart raise and lower the display?
Push-button UL-recognized actuators move the display up to 25.6" (650mm), adjusting the screen center from 34" to 60" from the floor.

Is it safe to operate around people?
A safety limit switch automatically reverses and stops travel when it detects an upward, downward, or lateral collision force.

Can I store a mini PC and power equipment on the cart?
Yes. The rear enclosure holds a mini PC in roughly 10"W x 8"H x 4"D of space, and the included PVP1200-CPL6 six-outlet surge protector powers connected gear.

Is the cart easy to move between rooms?
4" swivel casters with two locking, integrated handles, a welded base, and corner bumpers allow safe, stable transport without damaging walls or doorways.

Does it meet accessibility and safety standards?
The cart complies with ADA Standards for Accessible Design, Section 308, and carries UL 962 listing with a complementary UL1678 listing.

What warranty applies?
Peerless-AV provides a limited 5-year warranty on the cart.
