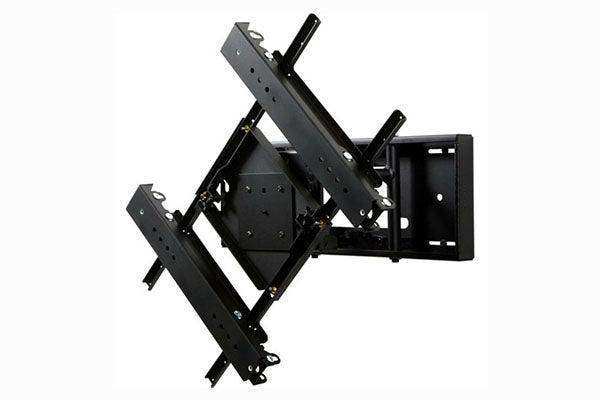

Peerless-AV DS-VWM770 – Mosaic Video Wall Mount 46-70"

Product Overview

The Peerless-AV DS-VWM770 is a special purpose video wall mount built for 46" to 70" displays in commercial digital signage deployments. This pop-out video wall mount gives integrators a serviceable solution with ten points of micro-adjustment to align adjacent screens into a flush, gap-free array. It is engineered for menu boards, lobby walls, and control-room canvases where alignment precision and rear access matter.

Product Description

The DS-VWM770 lets designers attach each display to the mount in 15-degree increments, opening a wide range of landscape and portrait video wall configurations from a single SKU. Ten points of micro-adjustment deliver the fine tuning needed to true up each panel against its neighbors, eliminating the misalignment that breaks the illusion of a continuous video wall. For maintenance, the mount extends from the wall and pivots, giving technicians direct rear access to cabling and connections; once service is complete, the display pushes back and clips securely into its home position.

This commercial-grade video wall mount installs on wood stud, solid concrete, or cinder block walls using the included hardware, making it suitable for retail, corporate, and public-venue digital signage. It supports VESA patterns from 300 x 300 up to 600 x 400mm, covering the bulk of professional flat panels in the 46" to 70" class. Integrators planning larger arrays can pair multiple units across a wall grid; browse the full Peerless-AV collection at Creation Networks for complementary mounts and accessories.

Key Features

• 15-Degree Incremental Mounting — Displays attach to the mount in 15-degree increments, giving designers a wide array of layout possibilities for both landscape and portrait video walls.
• Ten-Point Micro-Adjustment — Ten independent adjustment points deliver the precise fine tuning required to align adjacent panels into a flush, continuous video wall surface.
• Pop-Out Rear Access — The mount extends from the wall and pivots so technicians can reach the rear of each display for cabling and servicing without removing the panel.
• Secure Home Position — After servicing, the display pushes back into place and clips securely into its home position for a tight, uniform wall.
• Wide VESA Range — Supports VESA mounting patterns from 300 x 300 up to 600 x 400mm to fit the majority of commercial 46" to 70" displays.
• Multi-Surface Installation — Ships with hardware for wood stud, solid concrete, and cinder block walls, covering most commercial construction.

Typical Applications

• Retail menu boards and storefront digital signage
• Corporate lobby and reception video walls
• Conference room and all-hands room display arrays
• Broadcast studio and control room canvases
• Transportation hubs and hospitality wayfinding

Technical Specifications

Frequently Asked Questions

What display sizes does the DS-VWM770 support?
It is designed for 46" to 70" displays. Larger displays may still work if they fall within the supported VESA patterns and the 125 lb load capacity.

Which VESA patterns are compatible?
The mount accommodates 300 x 300, 400 x 200, 400 x 300, 400 x 400, 500 x 400, and 600 x 400mm patterns.

How does servicing work on a finished video wall?
Each mount extends from the wall and pivots, exposing the rear of the display for cabling and maintenance. After service, the display pushes back and clips into its home position.

What wall types can it be installed on?
The DS-VWM770 ships with hardware for wood stud, solid concrete, and cinder block walls. Confirm the wall can support the combined load of the mount and display.

Can I build a larger video wall with multiple units?
Yes. Integrators commonly array multiple DS-VWM770 units across a wall grid; plan stud spacing and power/data routing for the full canvas during design.

Is it covered by a warranty?
Yes. Peerless-AV backs the DS-VWM770 with a limited 5-year warranty.
