Peerless-AV DS-S555-3X2 – Modular Video Wall Pedestal, 3x2

Product Overview

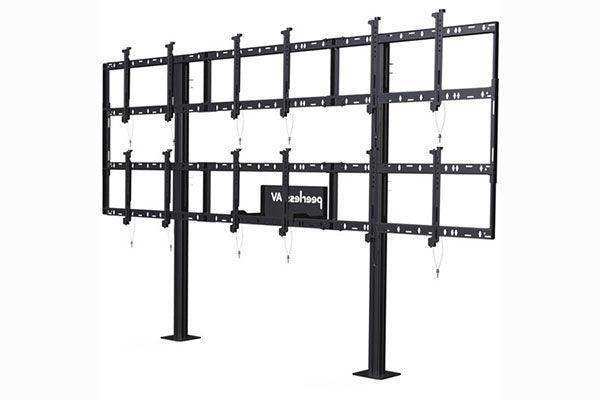

The Peerless-AV DS-S555-3X2 is a modular video wall pedestal that supports a 3x2, six-display video wall built from 46" to 55" panels as a free-standing floor structure. This video wall pedestal mount suits permanent commercial installations in retail, transit, and other high-traffic public locations. Tool-less micro-adjustment delivers precise display alignment, while built-in cable management and media storage keep the installation clean for AV integrators. It can be anchored to concrete without additional wall or ceiling support.

Product Description

The DS-S555-3X2 builds a 3-wide by 2-high, six-display video wall on a free-standing pedestal, supporting displays from 46" to 55" up to a 272 kg (about 600 lb) load. Tool-less micro-adjustment lets installers bring the array into precise alignment without extra hardware, producing a clean, even canvas. Built-in cable management and a central media storage area give integrators a safe, concealed home for media players and cabling, supporting a clutter-free finished appearance. For added stability, the pedestal can be anchored to concrete structures without additional wall or ceiling supports, which makes it well suited to retail, public transportation, and other high-traffic environments. The powder-coated aluminum frame keeps weight manageable relative to steel structures of similar capacity. For mobile applications, the matching DS-C555 cart range offers a portable alternative on casters. Explore related video wall solutions in our Peerless-AV collection.

Key Features

• 3x2 modular configuration — Supports a six-display free-standing video wall.
• 272 kg (approx. 600 lb) load capacity — Carries 46" to 55" displays within the rated VESA pattern and weight.
• Tool-less micro-adjustment — Aligns the array precisely without extra hardware.
• Built-in cable management and media storage — Central, concealed space for players and cabling.
• Concrete-anchorable — Mounts to concrete without additional wall or ceiling supports.
• Powder-coated aluminum frame — Manageable weight for a structure of this capacity.
• High-traffic ready — Suited to retail, transit, and other demanding public locations.

Typical Applications

• Auditorium — Free-standing large-format video walls for staged events.
• All-hands room — Permanent large display for company-wide briefings.
• Multi-purpose room — Floor-standing video wall for flexible programming.
• Broadcast studio — Fixed on-set video wall.
• Government space — Public information and briefing displays.
• Commercial meeting space — Large-format content for high-traffic environments.

Technical Specifications

Frequently Asked Questions

What configuration does the DS-S555-3X2 support?
It supports a 3 by 2, six-display free-standing video wall using 46" to 55" displays, up to a 272 kg (about 600 lb) load.

Does it require wall or ceiling support?
No. The pedestal is free-standing and can be anchored to concrete without additional wall or ceiling supports.

How are displays aligned?
Tool-less micro-adjustment lets installers bring the array into precise alignment without extra hardware.

Where do media players and cables go?
Built-in cable management and a central media storage area keep players and cabling concealed and organized.

Will my displays fit?
Displays from 46" to 55" are supported within the pedestal's rated VESA pattern and maximum weight. Confirm your display's VESA and weight before ordering.

What warranty and support apply?
The pedestal is backed by a Peerless-AV limited warranty. Contact Creation Networks to confirm the current warranty term and support options.
