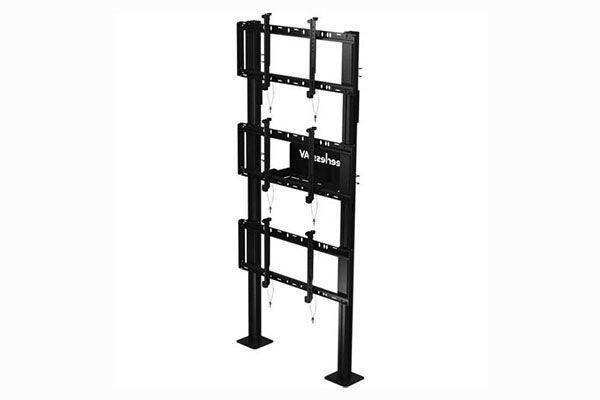

Peerless-AV DS-S560-1X3 – 1x3 Modular Video Wall Pedestal Mount

Product Overview

The Peerless-AV DS-S560-1X3 is a SmartMount modular video wall pedestal mount that holds three 46-inch to 60-inch displays in a 1x3 configuration. This freestanding video wall mount gives AV integrators a self-supporting structure for digital signage in open floor spaces, with no wall or ceiling attachment required when secured to a concrete floor. Tool-less micro adjustment and built-in cable management speed up commercial video wall installation in high-traffic environments.

Product Description

The DS-S560-1X3 is part of the SmartMount modular video wall pedestal system, supporting a 1x3 array of three displays from 46 to 60 inches with a total load capacity of 375 lb. The aluminum structure is designed to mount to a concrete floor structure without additional wall or ceiling supports, making it suited to open retail floors, transportation terminals, and other freestanding signage locations. Compatibility with VESA patterns from 200 x 200 mm up to 600 x 400 mm covers a wide range of commercial displays.

Tool-less micro adjustment lets integrators align each display precisely for a uniform, gap-free video wall surface, and built-in cable management plus media storage keep media players and wiring concealed for a clean, professional finish. The modular design supports quick setup and serviceable access in demanding commercial deployments. For comparable mounts and video wall hardware, browse the Peerless-AV collection at Creation Networks.

Key Features

• 1x3 Three-Display Configuration — Holds three displays from 46 to 60 inches in a 1x3 video wall array on a single freestanding pedestal.
• 375 lb Load Capacity — Supports a total display load of up to 375 lb for commercial-grade video wall builds.
• Freestanding Pedestal Design — Mounts to a concrete floor structure without requiring additional wall or ceiling supports.
• Wide VESA Compatibility — Accommodates VESA mounting patterns from 200 x 200 mm up to 600 x 400 mm.
• Tool-less Micro Adjustment — Aligns each display precisely without tools for a uniform, gap-free video wall surface.
• Built-in Cable Management — Integrated cable management routes wiring cleanly behind the displays.
• Integrated Media Storage — Built-in media storage conceals media players and components for a professional finish.
• Aluminum Construction — Lightweight aluminum structure for a strong yet manageable freestanding assembly.

Typical Applications

• Retail showrooms and storefront signage
• Transportation terminals and wayfinding
• Corporate lobbies and reception areas
• Broadcast studios and command spaces
• Entertainment venues and auditoriums

Technical Specifications

Frequently Asked Questions

How many displays does the DS-S560-1X3 support?
It supports three displays in a 1x3 configuration, sized from 46 to 60 inches.

What is the load capacity?
The pedestal mount supports a total display load of up to 375 lb.

Does it need to be attached to a wall?
No. It is a freestanding pedestal that mounts to a concrete floor structure without additional wall or ceiling supports.

Which VESA patterns are compatible?
It accommodates VESA mounting patterns from 200 x 200 mm up to 600 x 400 mm.

How are the displays aligned?
Tool-less micro adjustment lets integrators align each display precisely for a uniform, gap-free video wall.

How is cabling and media equipment handled?
Built-in cable management routes wiring cleanly, and integrated media storage conceals media players and components.
