Peerless-AV DS-C555-4X2 – Modular Video Wall Cart, 4x2

Product Overview

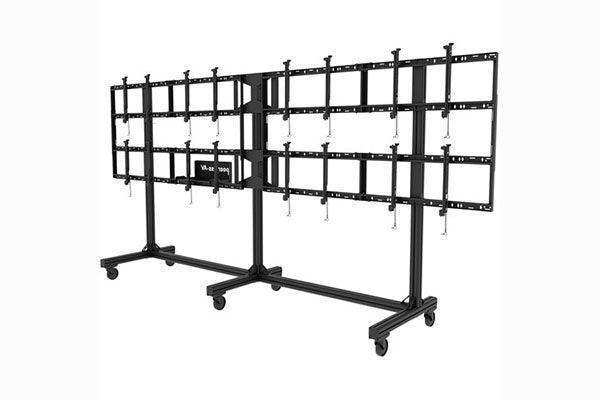

The Peerless-AV DS-C555-4X2 is a modular video wall cart that supports a 4x2, eight-display video wall built from 46" to 55" panels on a single rolling base. This portable video wall cart suits commercial deployments where the wall needs to move between rooms or events without permanent wall mounting. Tool-less micro-adjustment and a quick-connect adaptor latch speed setup and teardown for AV integrators. It is a flexible floor solution for high-traffic and temporary installations.

Product Description

The DS-C555-4X2 builds a 4-wide by 2-high, eight-display video wall from a single modular SKU, supporting displays from 46" to 55" up to an 800 lb total load. An 8-point micro-adjustment system lets installers align the array precisely without tools, producing a tight, even canvas. Four lockable five-inch casters allow safe, controlled movement across various flooring surfaces, then lock the cart in place once positioned. A quick-connect latch automatically engages the display adaptors with the mounting rails, which speeds repeated set-up and tear-down for events and rentals. Built-in cable management and a media storage area give integrators a central, concealed location for media players and cabling. The powder-coated, textured aluminum frame keeps weight and shipping cost down relative to steel carts of similar capacity. For permanent installations, the matching DS-S555 pedestal range offers a fixed-floor alternative. Explore related video wall solutions in our Peerless-AV collection.

Key Features

• 4x2 modular configuration — Builds an eight-display video wall from a single SKU.
• 800 lb load capacity — Supports 46" to 55" displays within the rated VESA pattern and weight.
• 8-point tool-less micro-adjustment — Aligns the array precisely without additional tools.
• Lockable 5-inch casters — Four casters allow controlled movement, then lock the cart in place.
• Quick-connect adaptor latch — Automatically engages display adaptors with the mounting rails for fast set-up and tear-down.
• Built-in cable management and media storage — Central, concealed space for players and cabling.
• Powder-coated aluminum frame — Lighter handling and shipping than comparable steel carts.

Typical Applications

• Broadcast studio — Movable video wall for sets and productions.
• All-hands room — Reconfigurable large-format display for company meetings.
• Training room — Shared high-impact content that can relocate between spaces.
• Multi-purpose room — Portable video wall for events and presentations.
• Auditorium — Temporary large-format displays for staged events.
• Conference room — Flexible collaboration display without permanent mounting.

Technical Specifications

Frequently Asked Questions

What configuration does the DS-C555-4X2 support?
It builds a 4 by 2, eight-display video wall from a single modular SKU, using 46" to 55" displays up to an 800 lb total load.

Is it portable?
Yes. It rides on four lockable five-inch casters for controlled movement across flooring, and locks in place once positioned.

How are displays aligned?
An 8-point micro-adjustment system aligns the array precisely without tools, and a quick-connect latch engages the display adaptors with the mounting rails.

Where do media players and cables go?
Built-in cable management and a media storage area provide a central, concealed location for players and cabling.

Will my displays fit?
Displays from 46" to 55" are supported within the cart's rated VESA pattern and 800 lb maximum load. Confirm your display's VESA and weight before ordering.

What warranty and support apply?
The cart is backed by a Peerless-AV limited warranty. Contact Creation Networks to confirm the current warranty term and support options.
