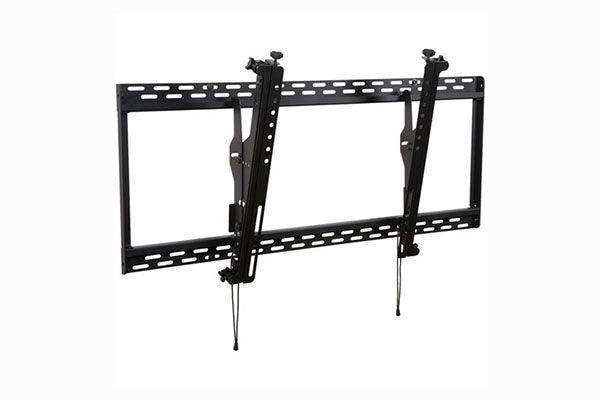

Peerless-AV DS-MBZ647L – QSR Menu Board Landscape Wall Mount for 46"–48" Displays

DS-MBZ647L – QSR Menu Board Landscape Wall Mount for 46" to 48" Displays

The Peerless-AV DS-MBZ647L is a landscape-orientation QSR menu board wall mount for 46" to 48" commercial displays, featuring connecting wall plates, IncreLock tilt, and tool-less height and depth adjustment for precise multi-panel menu board alignment.

Product Description

The DS-MBZ647L is the landscape-orientation counterpart to the DS-MBZ647P, and together they form Peerless-AV's complete QSR Menu Board Mount family for 46" to 48" displays. The landscape configuration is commonly used as the primary display in a horizontal menu board row, paired with portrait-oriented panels flanking the sides. Connecting wall plates link adjacent mounts together into a continuous mounting surface, keeping display alignment consistent and reducing the measurement and adjustment time required during installation.

Tool-less height adjustment and four-corner depth adjustment are standard features. These allow an installer to compensate for wall imperfections and fine-tune the position of each display after it is hung, without returning to the toolbox. The eight-point adjustment capability provides an above-average degree of precision for multi-display arrays where uniform depth and level are critical to the finished appearance. A kickstand holds the bottom of the display clear of the wall during cable connection, making it easier for a single installer to manage the display while terminating cables.

IncreLock tilt is available in both continuous and fixed configurations, ensuring that every panel in the menu board array is tilted at the same angle — an important detail in food service environments where displays are viewed from below at varying distances. Anti-theft and tamper-resistant security hardware is included. Maximum load capacity is 100.31 lb, covering the full weight range of commercial display panels in this size class.

Key Features

• Landscape orientation for 46" to 48" commercial displays in QSR and food service menu board arrays.
• Maximum load capacity of 100.31 lb covers the full weight range of commercial panels in this class.
• Connecting wall plates create a continuous mounting surface for consistent multi-panel alignment.
• Eight-point adjustment provides precise depth and level control across the display array.
• Tool-less adjustable height and leveling adjustment on each universal display adapter bracket.
• Tool-less four-corner depth adjustment aligns displays on the same plane despite wall imperfections.
• IncreLock tilt available in continuous and fixed options to match angle uniformly across the array.
• Kickstand holds display bottom away from wall for single-person cable management during installation.
• Anti-theft and tamper-resistant security hardware included as standard.
• VESA mount compatible; black finish; dimensions 19.5" H x 38.8" W x 3.1" D; weight 11.02 lb.
