Peerless-AV KOP55XHB2-SA – Dual-Sided 55" Kiosk with Speakers
Peerless-AV KOP55XHB2-SA – Dual-Sided 55" Kiosk with Speakers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
What is the Peerless-AV KOP55XHB2-SA dual-sided smart city kiosk with speakers?

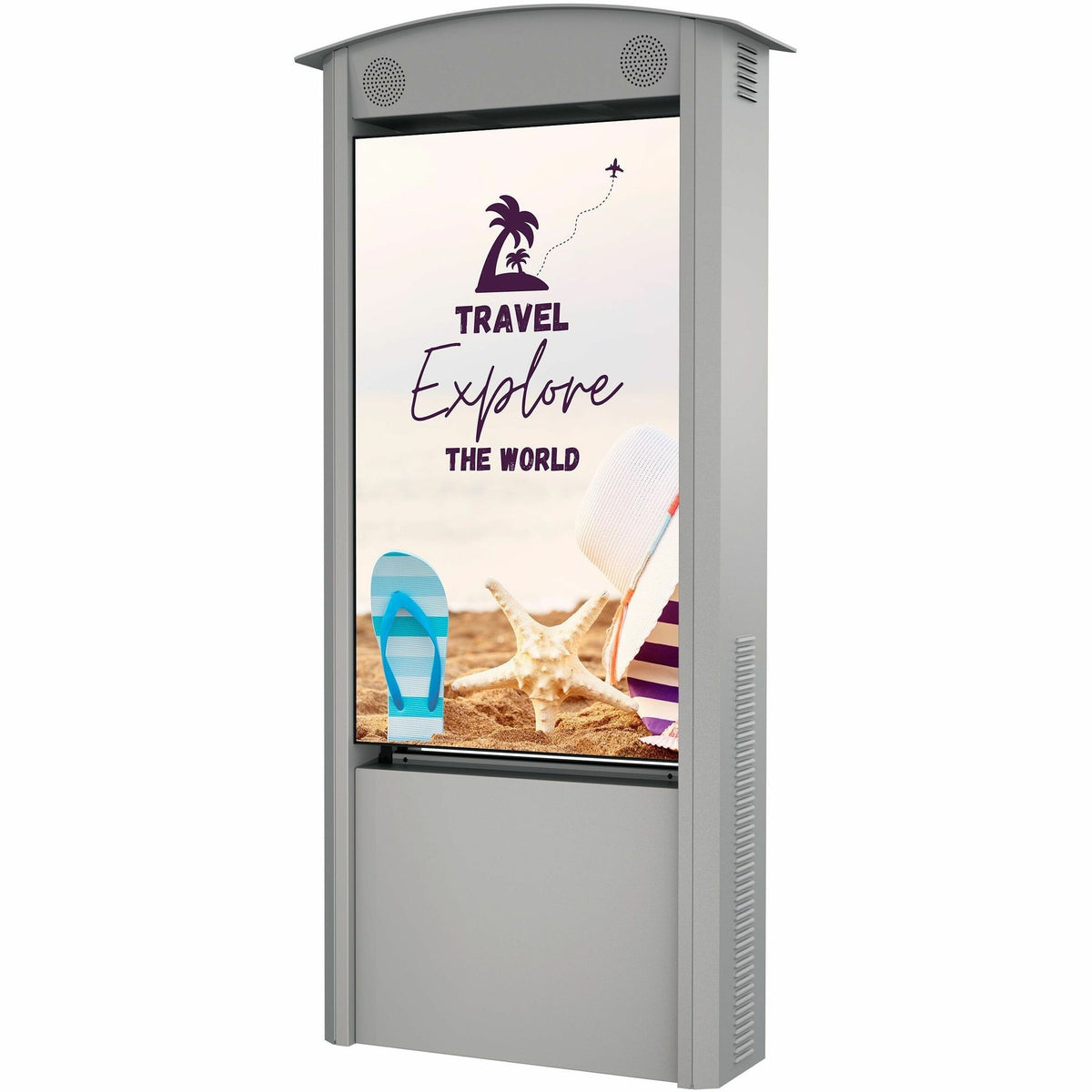

The Peerless-AV KOP55XHB2-SA is an outdoor digital signage kiosk with two back-to-back 55-inch Xtreme High Bright outdoor displays and an integrated waterproof speaker package, giving a single installation both readable content and audio in two directions. It targets municipal wayfinding, transit announcements, and outdoor advertising deployments where audio messaging matters alongside the video display. As a dual-sided smart city kiosk with built-in audio, the KOP55XHB2-SA lets integrators deliver a complete outdoor digital signage and public-address point without running separate speaker infrastructure to the same location.

What does the Peerless-AV KOP55XHB2-SA do?
The KOP55XHB2-SA houses two 55-inch Xtreme High Bright outdoor displays back-to-back inside a stainless steel and aluminum enclosure with an outdoor-rated powder coat finish, and adds four 4-inch, 100-watt waterproof speakers with integrated amplifiers for on-site audio. The IP66-rated display bays keep water, dust, and moisture out of the panels, while the IP55-rated media cabinet gives integrators ventilated, louvered space for media players, amplifiers, and network switching behind a lockable panel. The enclosure is wind-tested to 135 mph and rated for continuous operation from -31°F to 140°F, covering deployment in nearly every US climate zone Creation Networks installs in. Because the speaker package is factory-integrated rather than field-added, wiring, amplification, and weatherproofing for the audio system are already engineered into the kiosk before it ships. Integrators can specify black or silver smooth powder coat finishes to match a municipal streetscape, transit authority standard, or corporate campus palette. The dual-facing orientation with audio makes the KOP55XHB2-SA well suited to transit plazas, event venues, and pedestrian corridors where announcements need to reach people approaching from either direction. An optional KIRP-XHB4 IR touch overlay can be added for interactive wayfinding on either display face, including a heated variant for cold-climate installations.

Key Features
- Dual 55-inch Xtreme High Bright displays — back-to-back Full HD outdoor panels deliver readable content in both directions from one kiosk.
- Integrated waterproof speaker package — four 4-inch, 100-watt speakers with amplifiers add on-site audio without separate infrastructure.
- IP66-rated display bays — sealed construction prevents water, dust, and moisture ingress in the display compartments.
- IP55-rated media cabinet — ventilated, louvered compartment secures media players, amplifiers, and network equipment.
- Stainless steel and aluminum construction — outdoor-rated powder coat finish resists corrosion in coastal and urban environments.
- 135 mph wind rating — engineered for permanent outdoor installation in exposed plaza and streetscape locations.
- -31°F to 140°F operating range — supports unattended year-round operation across nearly every US climate.
- Optional IR touch overlay — the KIRP-XHB4 accessory adds 10-point touch interactivity, including a heated variant.

Where is the Peerless-AV KOP55XHB2-SA typically used?
- Municipal and smart-city space
- Transportation hub
- Stadium/venue
- Retail storefront
- Government space

Technical Specifications
| Displays | (2) 55" Xtreme High Bright outdoor displays, Full HD |
| Audio | (4) 4" waterproof speakers, 100W with amplifiers |
| Dimensions | 35.38"W x 84.13"H x 14.75"D (899 x 2137 x 375mm) |
| Weight | 314 lbs (142kg) with speakers |
| Display IP Rating | IP66 |
| Media Cabinet Rating | IP55 |
| Operating Temperature | -31°F to 140°F (-35°C to 60°C) |
| Wind Rating | Tested to 135 mph |
| Construction | Stainless steel and aluminum, outdoor-rated powder coat |
| Finishes | Black or silver smooth powder coat |
| Warranty | 5 years enclosure / 2 years display |

Frequently Asked Questions
How does the KOP55XHB2-SA differ from the KOP55XHB2-A?
The -SA adds a factory-integrated four-speaker, 100-watt waterproof audio package to the same dual-sided display and enclosure used on the KOP55XHB2-A.
Can the built-in speakers handle both background audio and paging/announcements?
The integrated speaker and amplifier package is designed for on-site audio such as announcements and ambient signage audio; confirm signal routing and amplifier compatibility with your AV system design with a Creation Networks engineer for paging-specific applications.
What network and media equipment does the media cabinet support?
The IP55-rated media cabinet provides ventilated, louvered space for digital signage media players, amplifiers, and network switching; exact equipment clearances are confirmed during project engineering.
Does Creation Networks handle installation and foundation anchoring?
Yes. Creation Networks provides nationwide design, procurement, and installation services for outdoor kiosk deployments, including foundation and anchoring coordination for this weight class.
What is the warranty on the KOP55XHB2-SA?
The kiosk enclosure carries a 5-year warranty and the Xtreme High Bright outdoor display carries a 2-year warranty from Peerless-AV.
Is touch interactivity available on this model?
Yes, the optional KIRP-XHB4 IR touch overlay can be added to either display face, with a heated version available for subzero climates.
