Peerless-AV KOP55XHB2 – Dual-Sided 55" Outdoor Smart City Kiosk
Product Overview

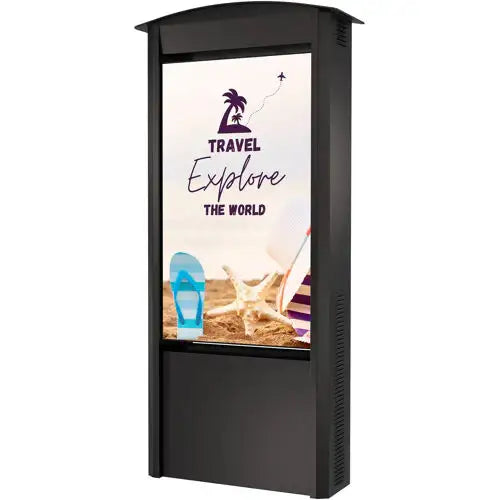

The Peerless-AV KOP55XHB2 is a dual-sided outdoor Smart City Kiosk that pairs a weatherproof enclosure with two 55" Xtreme High Bright outdoor displays for two-way digital signage in public spaces. Built for year-round outdoor digital signage, it lets operators replace static posters with remotely managed, dynamic content on both faces. Each IP66-rated, 2,500-nit Full HD screen stays daylight-readable in direct sun, while the all-metal body resists corrosion in demanding environments. It is a turnkey weatherproof outdoor kiosk for streetscapes, transit hubs, campuses, and retail exteriors.
Product Description
The KOP55XHB2 houses two Peerless-AV XHB554 Xtreme High Bright Outdoor Displays back-to-back, delivering full HD 1080p content to viewers on both sides. Each display is rated to 2,500 nits and carries a fully sealed IP66 design that blocks water, dust, moisture, and insects, while an ambient light sensor adjusts brightness to match conditions through the day. The kiosk is engineered for harsh outdoor service, with an operating range of -31°F to 140°F and wind testing up to 135 mph. A stainless steel and aluminum body with an outdoor-rated paint finish provides corrosion resistance for long-term street-level deployment. An IP55-rated media cabinet gives integrators a dedicated, ventilated space for media players and AV components, with active cooling fans to protect electronics. Installation is simplified, with no cranes or forklifts required, and secure rear doors provide quick access for service. For interactive applications, an optional 10-point IR touch overlay (KIRP-XHB4) can be added to one or both sides. Power and data routing is consolidated for a clean install, making this a strong fit for outdoor wayfinding kiosk and public information programs. Compare other outdoor signage options in our Peerless-AV collection.
Key Features
- Dual-sided viewing — Two 55" displays mounted back-to-back reach pedestrian traffic from both directions.
- 2,500-nit Xtreme High Bright displays — Full HD 1080p screens stay readable in direct sunlight.
- IP66-rated displays — Fully sealed against water, dust, moisture, and insects for outdoor service.
- IP55 media cabinet — Ventilated, fan-cooled component bay protects media players and AV gear.
- Wide operating range — Rated from -31°F to 140°F and wind tested to 135 mph.
- Corrosion-resistant body — Stainless steel and aluminum with an outdoor-rated paint finish.
- Ambient light sensor — Automatically tunes brightness to ambient conditions.
- Service-friendly design — Secure rear doors and no-crane installation simplify deployment and maintenance.
- Optional 10-point touch — Add the KIRP-XHB4 IR overlay to one or both sides for interactivity.
Typical Applications
- Government space — Municipal Smart City and civic campus deployments for public information and wayfinding.
Technical Specifications
| Displays | Two 55" Peerless-AV XHB554 Xtreme High Bright Outdoor Displays |
| Resolution | 1080p Full HD |
| Brightness | 2,500 nits |
| Display rating | IP66 (fully sealed) |
| Media cabinet rating | IP55 with active cooling fans |
| Operating temperature | -31°F to 140°F |
| Brightness control | Ambient light sensor (auto-adjust) |
| Wind rating | Tested up to 135 mph |
| Construction | Stainless steel and aluminum, outdoor-rated paint |
| Viewing | Dual-sided (back-to-back) |
| Optional touch | 10-point IR touch overlay (KIRP-XHB4), one or both sides |
| Installation / access | No crane or forklift required; secure rear service doors |
Frequently Asked Questions
What displays come with the KOP55XHB2?
It includes two Peerless-AV XHB554 55" Xtreme High Bright outdoor displays, mounted back-to-back for dual-sided viewing, each at 2,500 nits and 1080p Full HD.
Is it suitable for permanent outdoor installation?
Yes. The displays are IP66-rated and the media cabinet is IP55-rated, with an operating range of -31°F to 140°F and wind testing to 135 mph for year-round outdoor service.
Can it be made interactive?
Yes. An optional 10-point IR touch overlay (KIRP-XHB4) can be added to one or both sides, detecting touch from a finger, gloved hand, or stylus.
Where do media players and AV components go?
An IP55-rated, fan-cooled media cabinet provides dedicated internal space for media players and AV components, with consolidated power and data routing.
How is it installed and serviced?
The kiosk is designed for installation without cranes or forklifts, and secure rear doors give technicians quick access to the displays and components for maintenance.
Does this model include speakers?
This KOP55XHB2 configuration ships without speakers. Speaker-equipped versions (KOP55XHB2-A and -SA) add four 4-inch, 100-watt waterproof speakers with an amplifier.
What warranty and support apply?
The kiosk is backed by a Peerless-AV limited warranty. Contact Creation Networks to confirm the current warranty term and available support options.
