Peerless-AV IB40 – In-Wall Box for SA730P/SA740P & LCS-KLA Mounts

IB40 – In-Wall Box for SA730P/SA740P & LCS-KLA Series Mounts

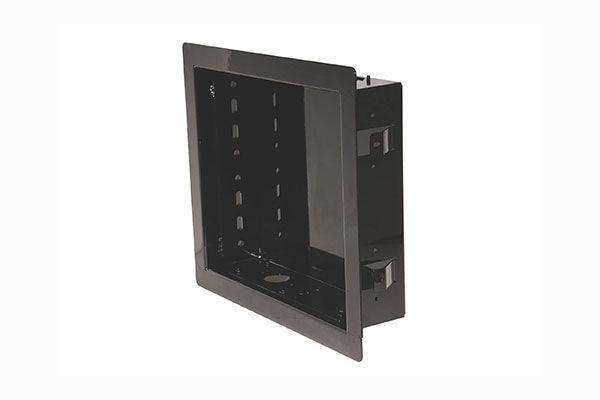

The Peerless-AV IB40 is a recessed in-wall box designed to work with SA730P, SA740P, and LCS-KLA series pivot and articulating wall mounts, enabling displays to sit flush with the wall while routing power and A/V cables cleanly inside the wall cavity.

Product Description

The IB40 in-wall box gives professional AV installers a practical solution for eliminating visible mounting hardware and surface-run cabling. By recessing the compatible Peerless-AV pivot or articulating mount into the wall cavity, the display appears to sit directly against the wall surface — an installation standard that clients in corporate, retail, and hospitality environments consistently require.

Inside the recessed area, removable outlet receptacles and cable access plates allow power and A/V connections to be made without any additional wall openings. The flexible stud-locating tabs adjust a quarter inch in either direction, accommodating minor discrepancies between planned and actual stud placement — a common challenge on retrofit and renovation projects. Multiple height adjustment points built into the mount interface allow the display to be positioned vertically within the wall opening after the box is secured.

The IB40 is the standard version of this in-wall box, complementing the white-finish IB40-W for installations where the wall finish does not require a color-matched box. Both versions deliver the same structural performance and installation versatility for small and medium Peerless-AV wall mount configurations.

Key Features

• Recesses compatible SA730P, SA740P, and LCS-KLA series pivot and articulating mounts fully behind the wall plane.
• Allows displays to mount completely flush with the wall surface for a clean, finished appearance.
• Removable outlet receptacles inside the recessed area enable in-wall power connections without additional cuts.
• Cable access plates inside the box provide organized routing for A/V signal and power cabling.
• Flexible stud-locating tabs adjust ¼ inch to compensate for minor variations in framing placement.
• Multiple mount height adjustment points allow precise vertical positioning of the display after installation.
• Designed for professional AV installations in commercial and residential environments.
• Works as a system with compatible Peerless-AV small and medium pivot and articulating wall mounts.

Technical Specifications
