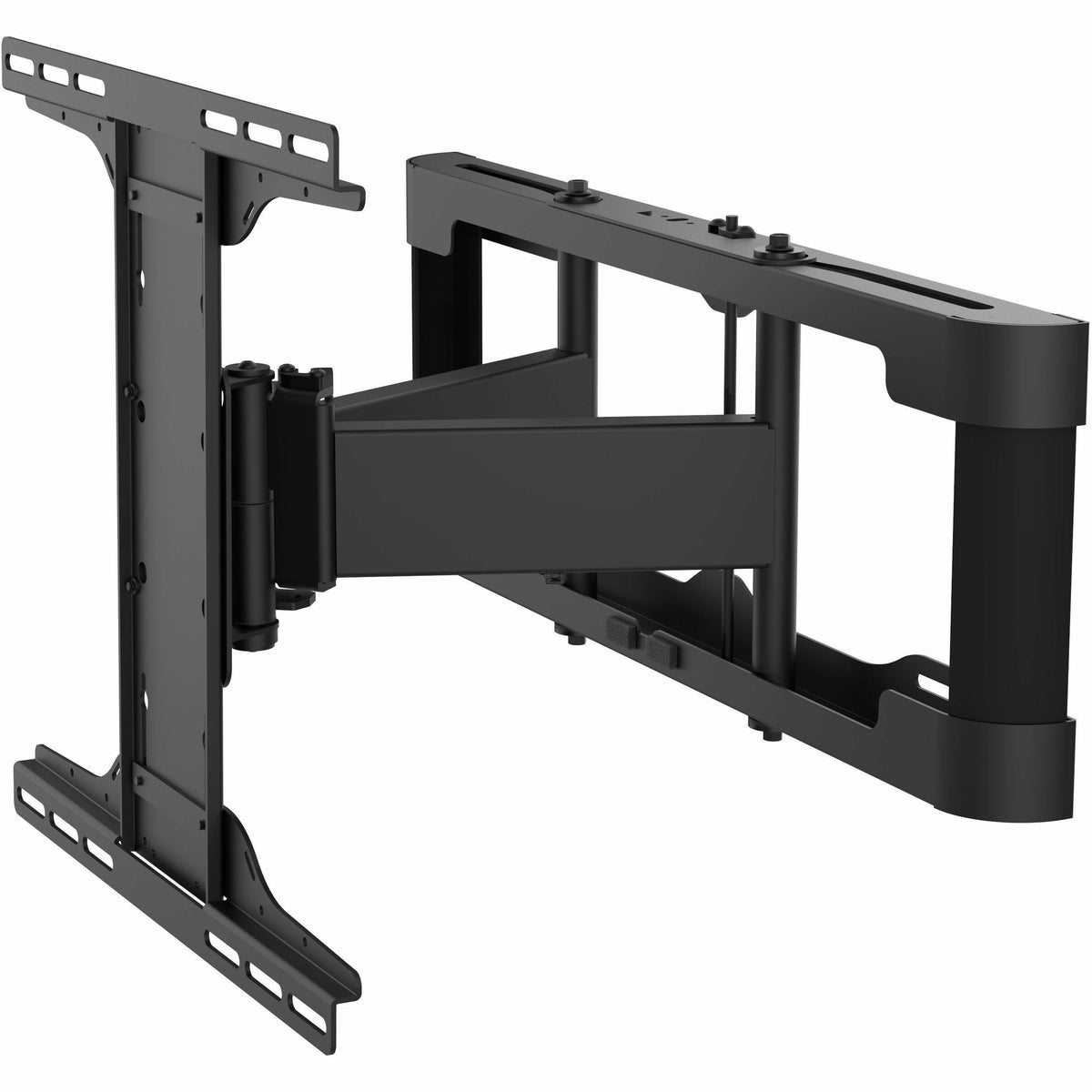

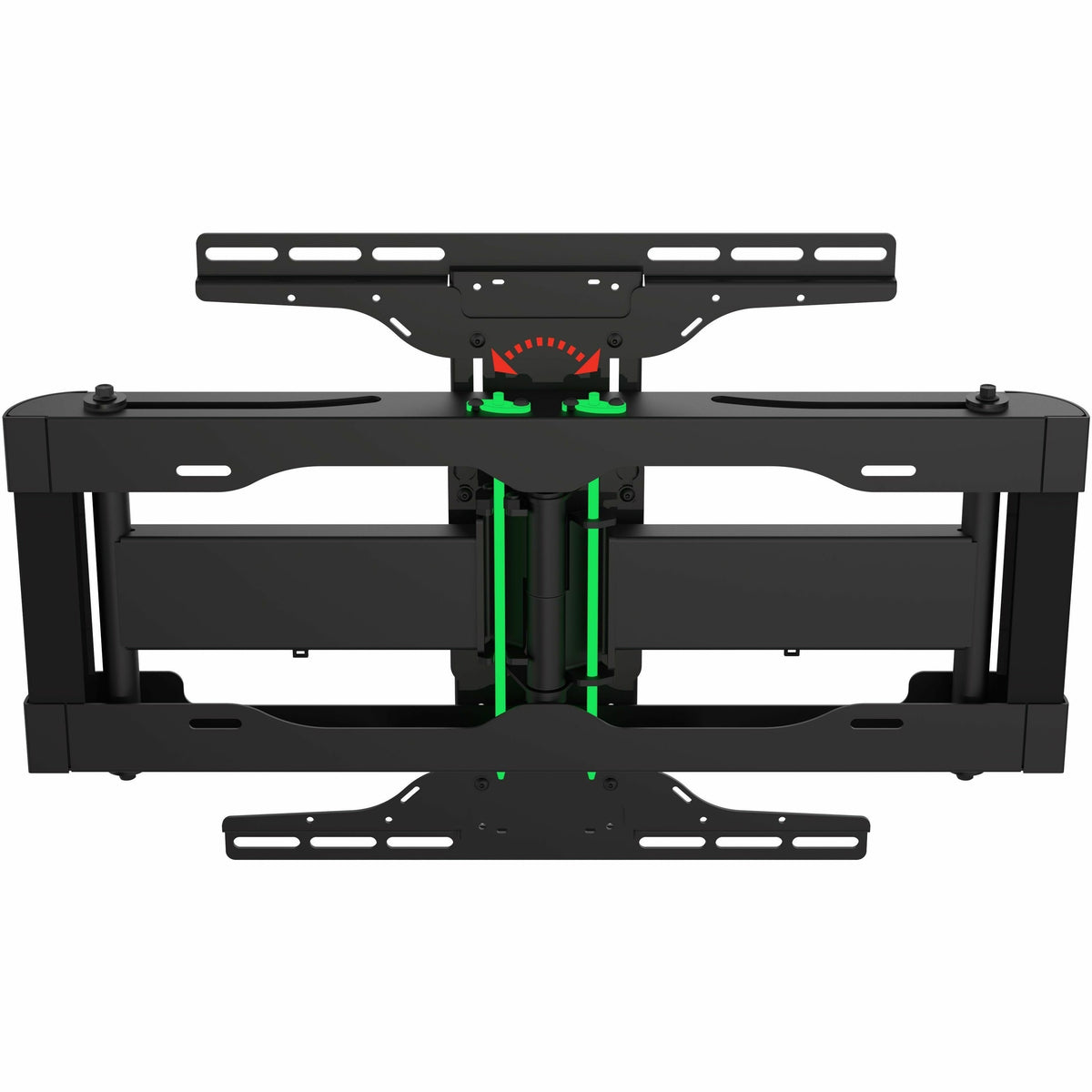

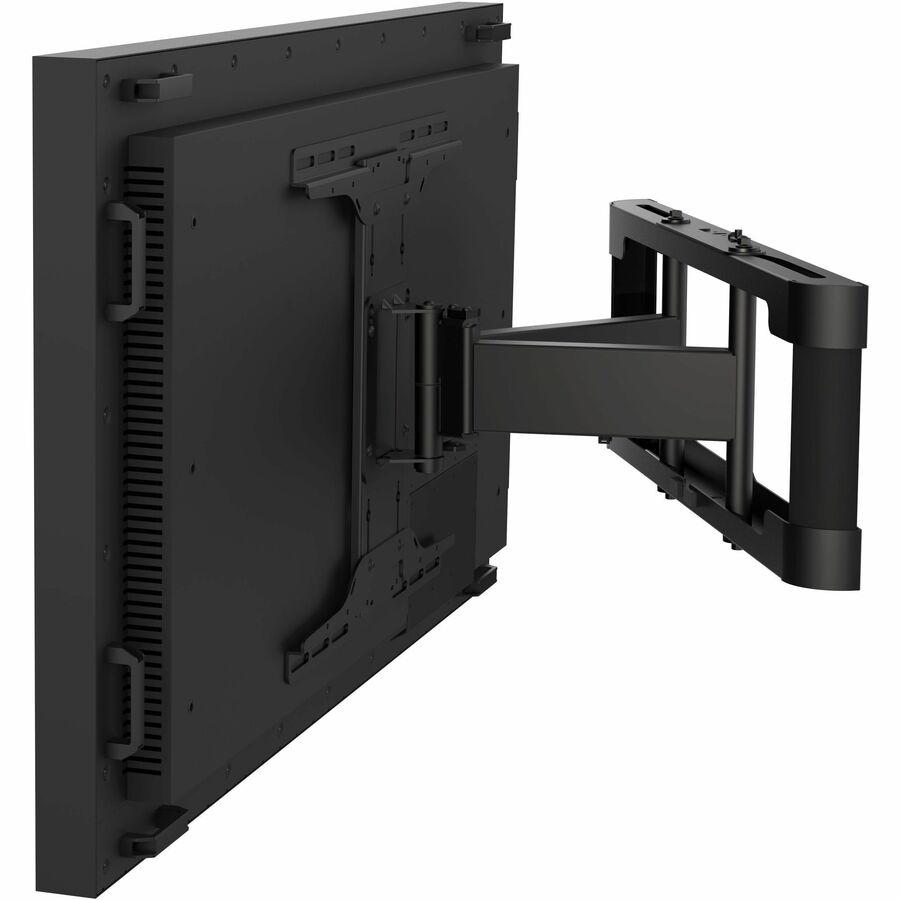

Peerless-AV HPF675 – Large Pull-Out Pivot Wall Mount 55-75in

What is the Peerless-AV HPF675 pull-out pivot wall mount?

The Peerless-AV HPF675 is a large pull-out pivot wall mount built for 55" to 75" commercial and hospitality displays. It sits nearly flat against the wall in its closed position and pulls out to 12.95" with pivot adjustment for rear panel access and viewing angle correction, without the display ever leaving the wall. This pull-out pivot TV wall mount is a standard spec for hotel guest rooms and lobby displays where a low-profile mount is required but installers still need quick access to HDMI and power connections. It supports VESA patterns from 200 x 200mm to 400 x 400mm and is rated to 80 lb.

What does the Peerless-AV HPF675 do?

The HPF675 extends from 2.83" off the wall to 12.95", giving technicians room to work behind a large-format display without unmounting it. Built-in swivel provides up to ±30° of pivot for 55" displays and up to ±22° for 75" models, accounting for the way pivot arc changes with panel width on a large-format flat mount. The powder-coated black finish and security screws add tamper resistance, which is a common requirement in hotel guest rooms and other semi-public spaces where the display and mount are accessible to guests. Installation is designed for dual 16" stud spacing on metal or wood framing, as well as concrete or cinder block, covering the range of wall construction found across hospitality renovation and new-build projects. Because the HPF675 supports both 200 x 200mm and up to 400 x 400mm VESA patterns, one SKU can standardize hardware across a range of 55"-75" display models on a multi-room hospitality rollout. The mount carries a 5-year limited warranty.

Key Features

• Near-flat pull-out design — extends from 2.83" to 12.95" from the wall for rear panel access without dismounting the display.
• Size-adjusted pivot range — up to ±30° for 55" displays and up to ±22° for 75" displays, accounting for panel width in the pivot arc.
• 80 lb weight capacity — rated for large-format 55"-75" commercial displays.
• Security screws — add tamper resistance for hotel guest rooms and semi-public spaces.
• Universal VESA compatibility — supports 200 x 200mm to 400 x 400mm patterns for hardware standardization across a rollout.
• Dual 16" stud installation — mounts to metal or wood studs, concrete, or cinder block.
• 5-year limited warranty — standard Peerless-AV commercial coverage.

Typical Applications

• Hospitality spaces
• Conference rooms
• Multi-purpose rooms
• Commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What display sizes and weights does the HPF675 support?
55" to 75" commercial displays up to 80 lb, with VESA compatibility from 200 x 200mm to 400 x 400mm.

How much does the pivot range change between a 55" and 75" display?
The mount provides up to ±30° of pivot for 55" displays and up to ±22° for 75" displays, since a wider panel has a shorter arc before it contacts the wall or adjacent surfaces.

How far does the display pull out for rear cable access?
From a closed position of 2.83" to a fully extended 12.95" from the wall.

Does the HPF675 include security hardware for guest-accessible spaces?
Yes, it includes tamper-resistant security screws, which is a standard requirement for hotel guest room installs.

What wall types does the HPF675 support?
Dual 16" metal or wood studs, poured concrete, or cinder block.

What is the warranty on the HPF675?
Peerless-AV backs the HPF675 with a 5-year limited warranty.
