Peerless-AV HPF650 – Pull-Out Pivot Wall Mount for 43-55" Displays

What is the Peerless-AV HPF650?

The Peerless-AV HPF650 is a pull-out pivot wall mount built for 43" to 55" flat panel displays in commercial spaces where the display needs to swing out and pivot for viewing from an angle. It is a common choice for corner installations and rooms where the screen has to serve two sight lines from one wall position, such as a nurses' station, retail counter, or reception desk. The mount's low-profile design lets the display sit flush to the wall when not in use, then pull out and pivot when a wider viewing angle is needed. It's a purpose-built solution for commercial AV integrators specifying a pull-out pivot TV mount rather than a standard fixed or tilt mount.

What does the Peerless-AV HPF650 do?

The HPF650 combines a flush wall-mount profile with a pull-out arm and built-in swivel, giving the display up to 11.29" of extension from the wall and roughly ±30° of swivel once extended. This lets integrators position a display flat against the wall for a clean, low-profile look, then pull it out and pivot it toward a customer, patient, or visitor when the sight line calls for it — a pattern common in retail checkout counters, hospital nurse stations, reception desks, and transaction windows. The mount uses an I-shaped adaptor plate that accommodates VESA patterns from 200x200mm up to 400x400mm, covering most 43" to 55" commercial displays on the market. Powder-coated steel construction and a 60 lb weight rating give it the load capacity for commercial-grade panels, not just consumer TVs. Installation is designed around both wood and metal stud spacing, either 16" on-center or single-stud mounting, and the adjustable latch tension mechanism lets installers fine-tune how easily the display pulls out and locks back to the wall. Security screws are included for tamper resistance, which matters in public-facing installations where the display is accessible to foot traffic. The mount is UL Listed, RoHS compliant, and manufactured in the United States, and it carries Peerless-AV's 5-year limited warranty. For AV integrators speccing pull-out wall mounts for transaction counters, nurse call stations, or any application where a display needs to flip between flush and angled positions, the HPF650 is a direct-fit solution rather than a workaround built from a standard tilt mount.

Key Features

• Pull-out and pivot motion — extends up to 11.29" from the wall with roughly ±30° of swivel, letting one display serve multiple sight lines.

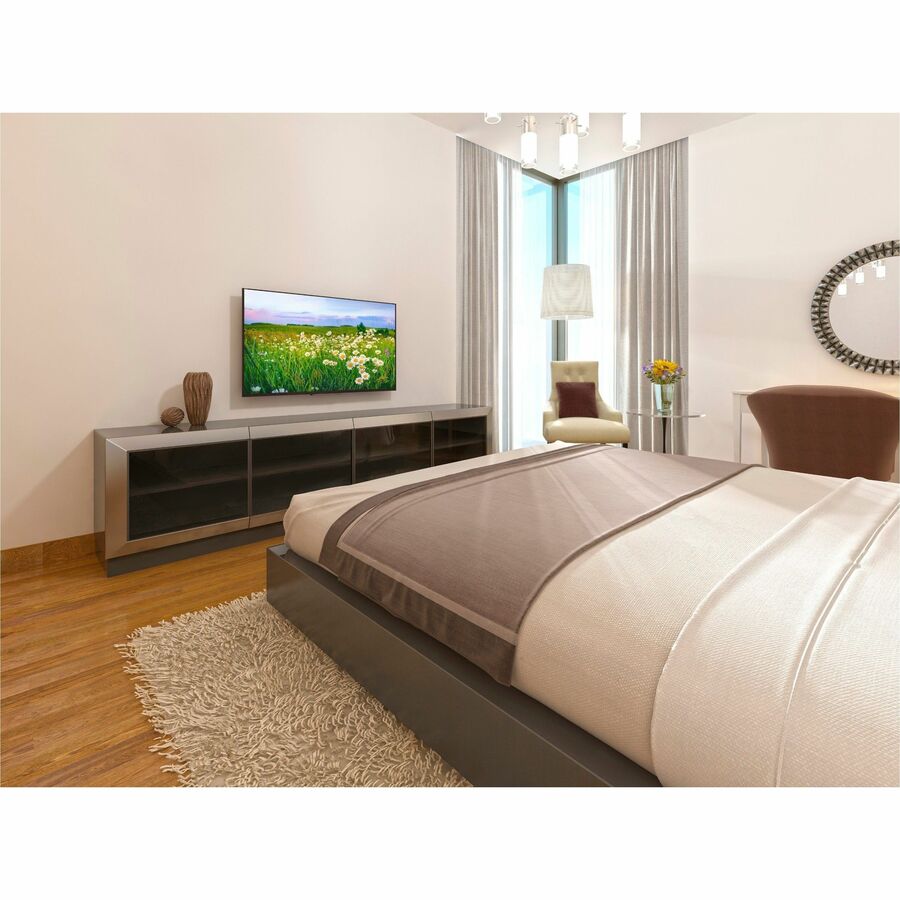

• Flush recessed profile — sits close to the wall when retracted, keeping a low-profile look for in-furniture or tight-clearance applications.

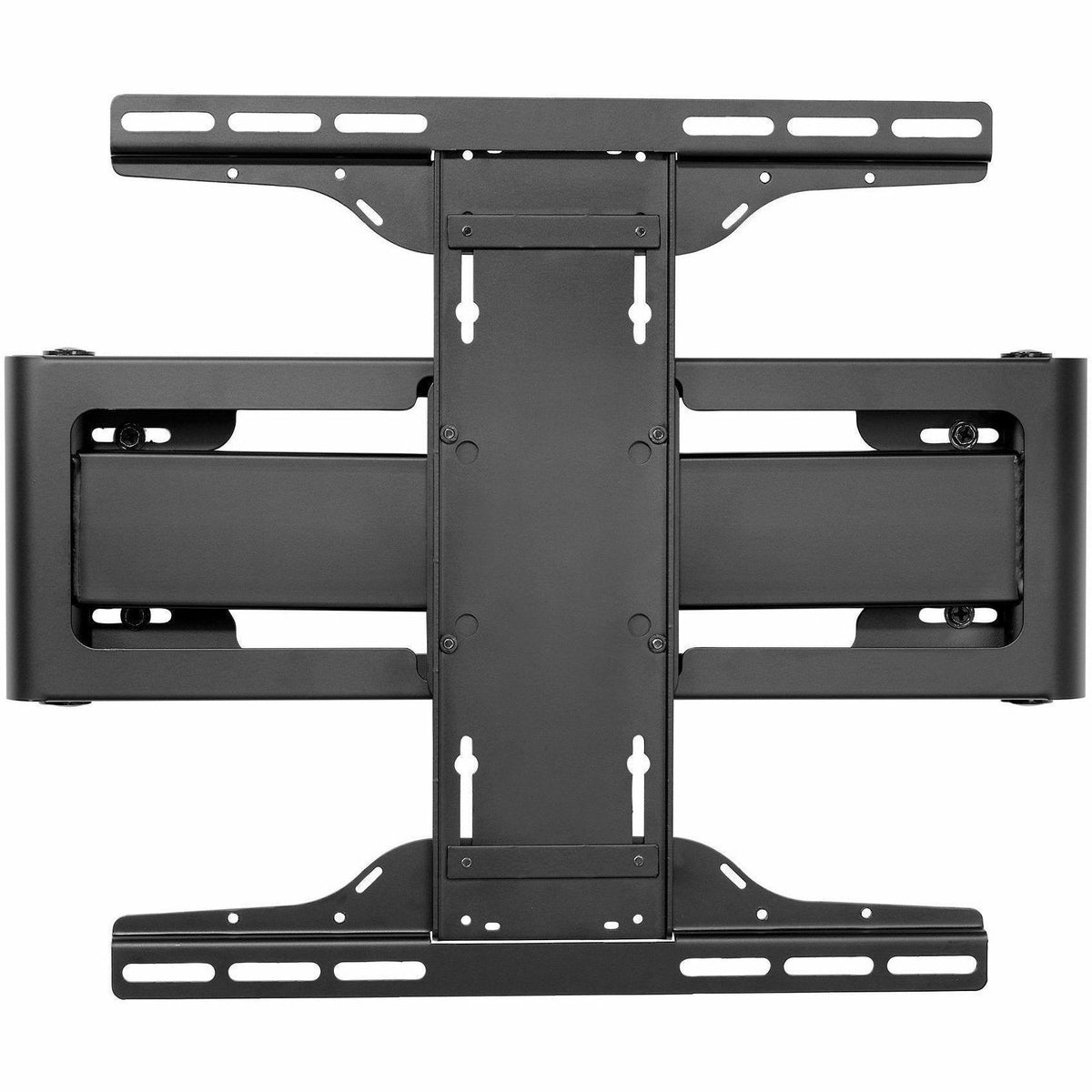

• VESA 200x200 to 400x400mm compatibility — covers the majority of 43" to 55" commercial flat panel displays.
• 60 lb weight capacity — powder-coated steel construction rated for commercial-grade display panels.

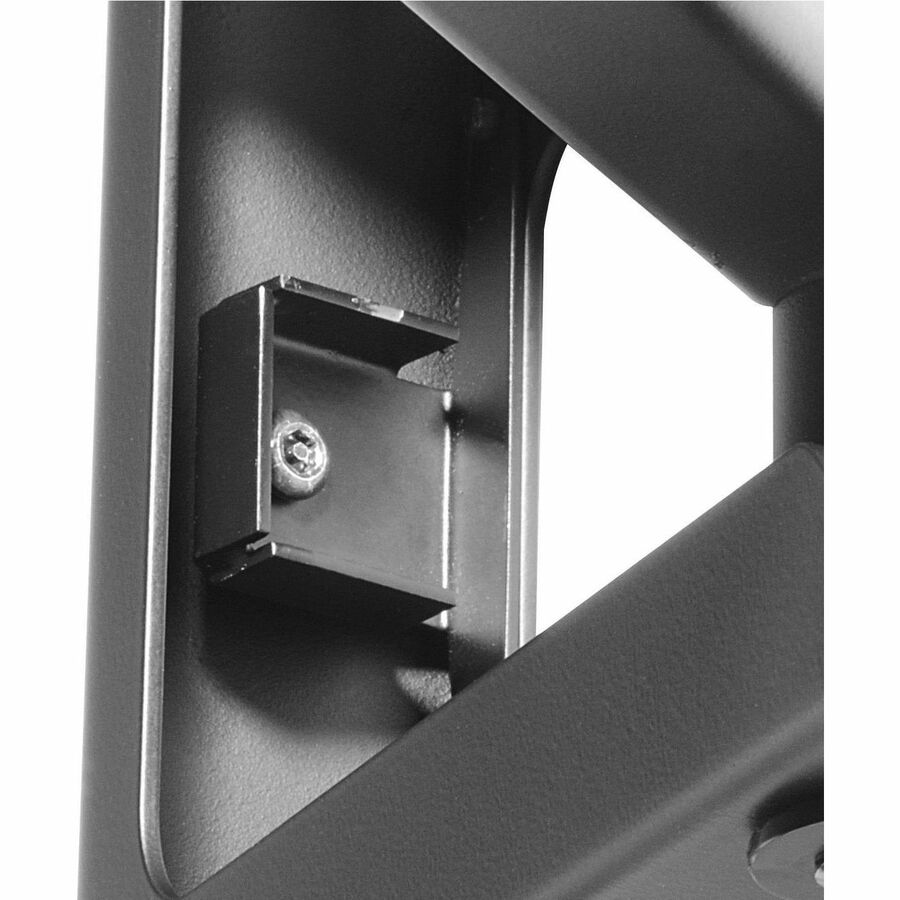

• Adjustable latch tension — lets installers set how easily the pull-out arm extends and locks flush.
• Wood and metal stud compatibility — mounts to 16" on-center studs or a single stud, with security screws included for public-facing installs.

Technical Specifications
