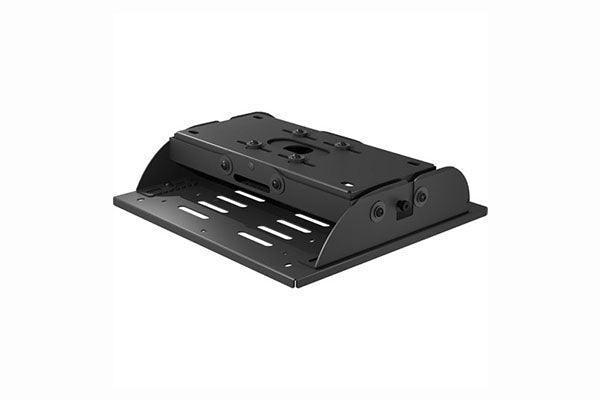

Peerless-AV PJR250 Heavy Duty Projector Mount for Large Venue Projectors up to 250 lb

PJR250 – Peerless-AV Heavy Duty Projector Mount for Large Venue Projectors

The Peerless-AV PJR250 Heavy Duty Projector Mount is engineered for large venue projectors weighing up to 250 lb, offering Hook-and-Hang installation, locking tilt and swivel, and dedicated OEM adaptor plate compatibility for precise image alignment in auditoriums, houses of worship, and large-format projection environments.

Product Description

Mounting a large venue projector presents challenges that universal mounts are not designed to address. The weight, size, and center-of-gravity variability of high-lumen laser and lamp projectors used in auditoriums and large presentation spaces demand a mount that can be precisely balanced and reliably locked. The PJR250 is purpose-built for this application, with a load capacity of 250 lb and a mounting interface designed around dedicated OEM adaptor plates that position each projector model at its correct center of gravity.

The Hook-and-Hang installation system provides a large, stable landing area that allows a heavy projector to be positioned on the mount safely during installation, reducing the risk of injury or equipment damage that can occur when attempting to thread a heavy projector onto a small mounting interface. Once hung, the projector is secured with fasteners and the alignment process begins.

Tilt (+15° / -5°), roll (±5°), and swivel (360°) are all independently adjustable and individually lockable, preventing image drift over time from vibration or environmental factors. A built-in ±1.5" lateral shift accommodates minor horizontal offset corrections. The pre-assembled design reduces on-site installation time, and a safety cable is included as a secondary retention measure.

Key Features

• 250 lb Maximum Load Capacity — Rated for the heaviest large venue projectors, including high-lumen laser and lamp-based models used in auditoriums, arenas, and houses of worship.
• Hook-and-Hang Installation — Large landing area allows heavy projectors to be placed on the mount safely during installation, reducing the physical risk of single-person and two-person lift scenarios.
• Dedicated OEM Adaptor Plates (sold separately) — Manufacturer-specific adaptor plates position each projector model at its designed center of gravity, eliminating the balance problems and long-term sag associated with universal adaptor use on heavy projectors.
• Locking Tilt, Roll, and Swivel — All three adjustment axes lock independently, preventing image shift from vibration or settling after final alignment is complete.
• ±1.5" Lateral Shift — Built-in horizontal adjustment accommodates minor offset corrections without moving the ceiling attachment point or the extension column.
• 360° Swivel — Full rotation allows the projector to be oriented toward the screen at any angle relative to the ceiling attachment point.
• Safety Cable Included — A secondary retention cable is included as a redundant safety measure, meeting the requirements of many commercial installation codes for overhead equipment.
• Compatible with Peerless-AV Extension Columns — Works with ADD%, AEC%, EXT%, and MOD% series extension columns for custom drop heights in high-ceiling venues.

Typical Applications

The PJR250 is the correct mount for permanent large venue projection installations where projector weight, long-term alignment stability, and installation safety are primary concerns. It is deployed in auditoriums, performance venues, houses of worship, large corporate conference and training centers, university lecture halls, and sports facilities where high-lumen projectors are ceiling-mounted above or behind the primary audience seating area. The dedicated adaptor plate system also makes the PJR250 appropriate for installations where the projector may be replaced with a different model over the system’s lifecycle, as new adaptor plates can be substituted without changing the mount body.

Technical Specifications

Frequently Asked Questions

Why are dedicated OEM adaptor plates recommended instead of a universal adaptor for the PJR250?

Universal adaptor plates do not account for the specific center of gravity of each projector model. On heavy projectors, an off-center load causes the mount to work harder against the locking mechanisms, leading to gradual sag and image misalignment over time. Dedicated OEM plates are designed to place the load at the correct balance point, making adjustments easier and maintaining alignment long-term.

Does the PJR250 include an extension column?

No. Extension columns are sold separately. The PJR250 is compatible with Peerless-AV ADD%, AEC%, EXT%, and MOD% series columns. Contact Creation Networks at creationnetworks.net to specify the correct column length for your ceiling height and installation geometry.

Is the safety cable required by installation codes?

Many commercial AV installation standards and local building codes require a secondary retention device for overhead-mounted equipment. The included safety cable satisfies this requirement in most jurisdictions. Verify applicable local codes with your AV system designer or general contractor before finalizing the installation plan.
