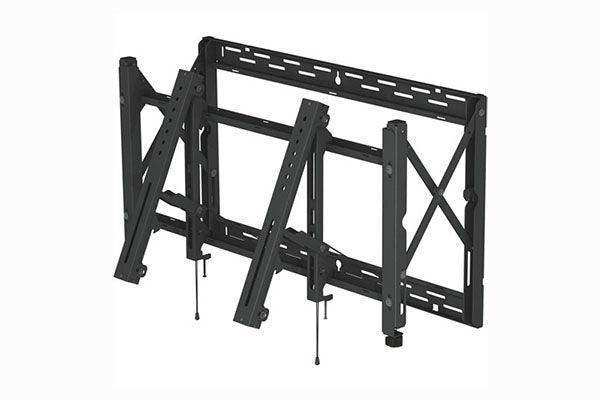

Peerless-AV EDS-VW765-LAND – Outdoor Landscape Video Wall Mount

Product Overview

The Peerless-AV EDS-VW765-LAND is an outdoor video wall mount engineered for landscape displays from 40" to 65" in exterior and harsh-environment installations. As part of the SmartMount full-service line, it provides a modular mounting platform for building outdoor video walls in any configuration, with environmentally treated hardware that resists corrosion. This full-service video wall mount targets integrators deploying digital signage in stadiums, transportation hubs, and other demanding commercial settings.

Product Description

The EDS-VW765-LAND is built for fast configuration, quick installation, and simple maintenance in outdoor video wall deployments. Its modular design lets an integrator scale to virtually any array size, and displays sit flush against the wall for a clean side profile. Tool-less micro-adjustment at eight points aligns adjacent displays precisely, while the pull-out, prop-open service mechanism provides full-service access to any screen in the array without dismantling neighboring units. Integrated cable management tie-backs keep display-to-display cabling organized across the wall.

The mount supports adjustable VESA patterns from 200 x 200mm up to 700 x 400mm in 100mm increments, with additional patterns available through adaptor plates, and carries a load capacity of 125 lb (56.8 kg) per display position. A spring-loaded mechanism clicks displays securely into place, and included security hardware prevents the mount from being extended out from the wall in public areas. The environmentally coated, scratch-resistant finish suits outdoor and high-moisture commercial environments. For comparable mounting hardware and outdoor AV solutions, browse the Peerless-AV collection at Creation Networks.

Key Features

• Outdoor-Rated Construction — Environmentally treated, corrosion-resistant hardware is built for exterior and harsh-environment video wall installations.
• Modular Configuration — Builds outdoor video walls in virtually any array size for flexible digital signage layouts.
• Tool-Less Micro-Adjustment — Eight-point, no-tool adjustment aligns adjacent displays quickly and precisely.
• Full-Service Access — A pull-out, prop-open mechanism allows service to any display without removing surrounding units.
• Flush Mounting — Displays and mounts sit flush against the wall for a clean side appearance.
• Integrated Cable Management — Tie-backs simplify display-to-display cabling across the array.
• Wide VESA Range — Supports 200 x 200mm up to 700 x 400mm in 100mm increments, with adaptor plates for additional patterns.
• Security Hardware — Included hardware prevents the mount from being extended out from the wall in public spaces.

Typical Applications

• Stadiums and outdoor entertainment venues
• Transportation hubs and passenger information walls
• Outdoor retail and quick-service restaurant signage
• Hospitality patios and exterior guest areas
• Government and commercial outdoor displays

Technical Specifications

Frequently Asked Questions

What display sizes does the EDS-VW765-LAND support?
It is designed for 40" to 65" displays mounted in landscape orientation within a video wall array.

Is this mount suitable for outdoor use?
Yes. The EDS-VW765-LAND uses environmentally treated, corrosion-resistant hardware intended for outdoor and harsh-environment installations.

What VESA patterns are supported?
The mount adjusts in 100mm increments from 200 x 200mm up to 700 x 400mm, with additional patterns available using adaptor plates.

How much weight does each position hold?
Each display position supports up to 125 lb (56.8 kg).

How is a display serviced once installed in the wall?
A tool-less pull-out, prop-open mechanism provides full-service access to any display without removing the surrounding units in the array.

Can it build large video wall configurations?
Yes. The modular design supports virtually any array configuration, and reusable wall plate spacers (sold separately) eliminate on-site alignment calculations.

What is the warranty?
The mount carries a Limited 5-year warranty from Peerless-AV.
