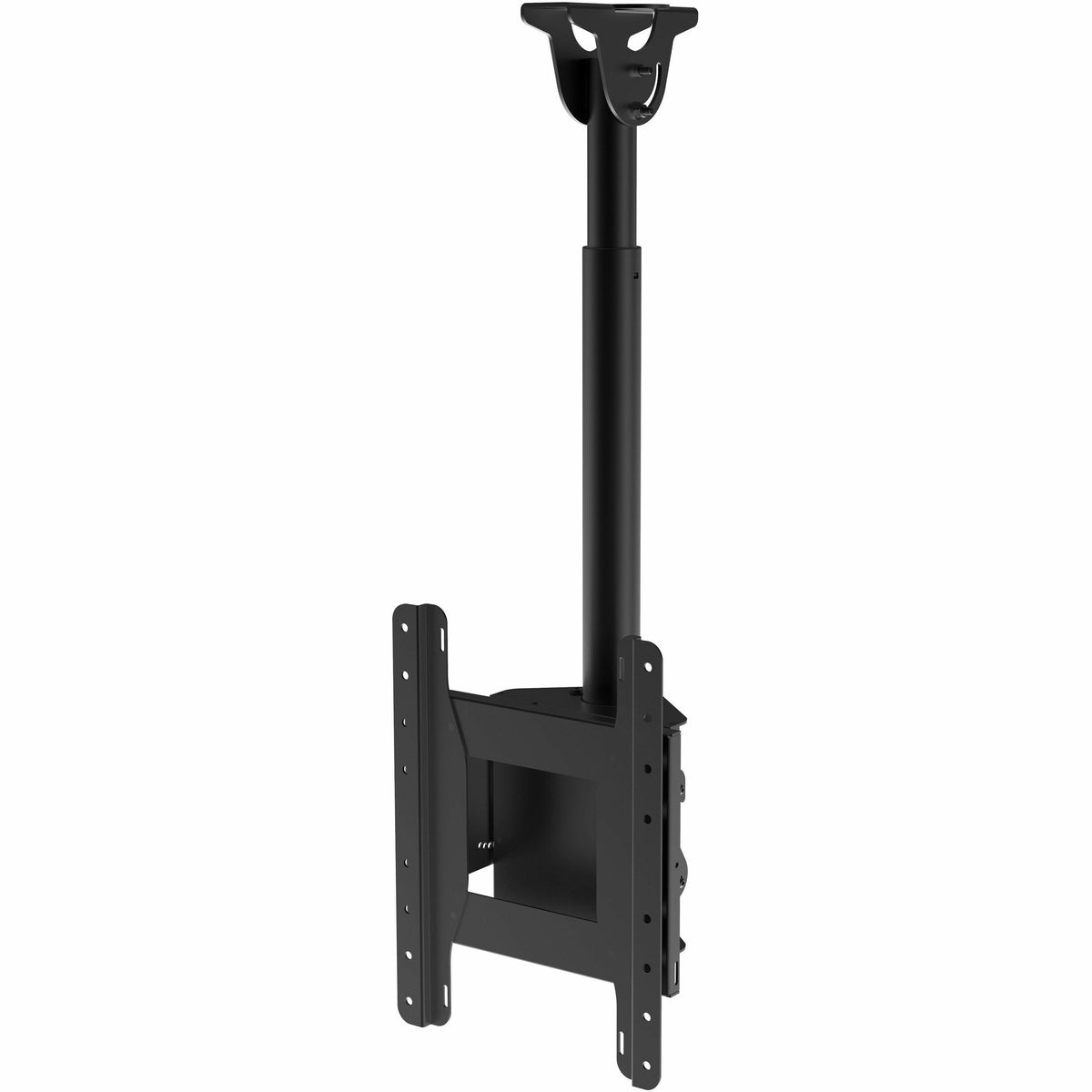

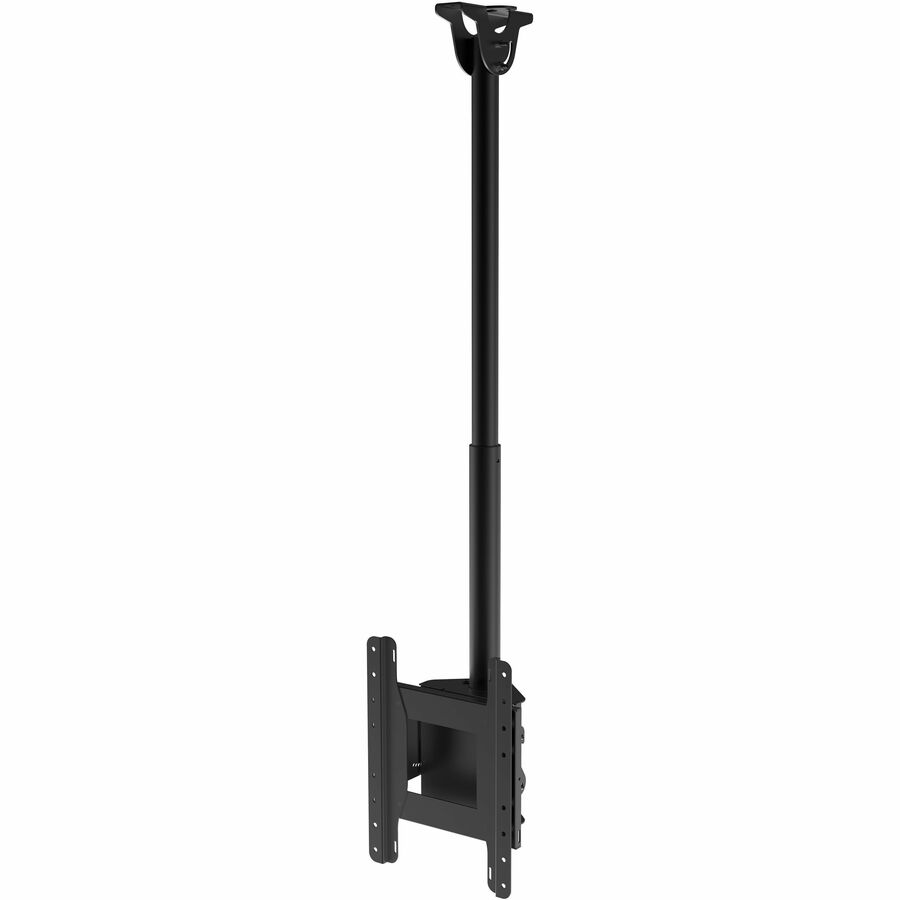

Peerless-AV ECMUA – Outdoor TV Ceiling Mount, 43-75" Displays

What is the Peerless-AV ECMUA outdoor TV ceiling mount?

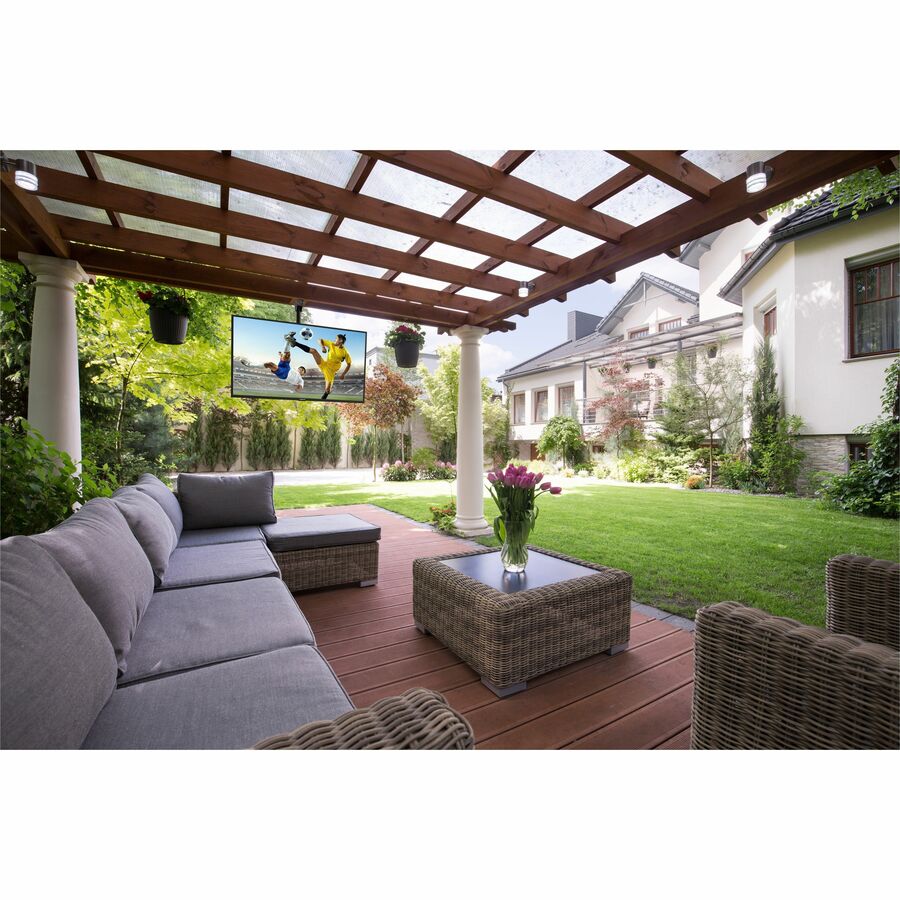

The Peerless-AV ECMUA is an outdoor TV ceiling mount for 43" to 75" displays, built with corrosion-resistant construction and stainless steel hardware for wind-protected exterior installations. It's designed for locations like covered patios, outdoor bar overhangs, and porch ceilings where a display needs to hang overhead rather than mount to a wall. For integrators specifying an outdoor digital signage ceiling mount or an overhead-mounted outdoor entertainment TV, the ECMUA is purpose-built to work with Peerless-AV's Xtreme High Bright outdoor displays as well as other 43"-75" commercial panels within its VESA range.

What does the Peerless-AV ECMUA do?

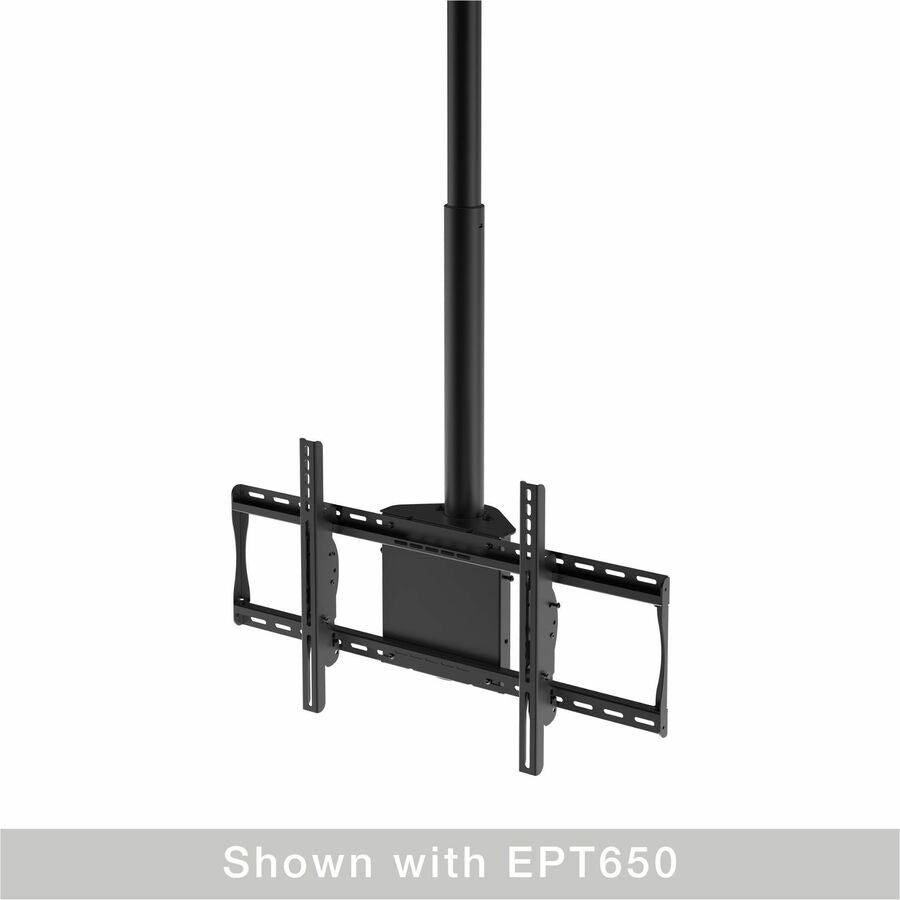

The ECMUA suspends a 43" to 75" display from a covered outdoor ceiling or soffit using a cathedral ceiling plate paired with an adjustable extension column that routes cabling through its center, keeping wiring concealed rather than exposed to the elements. The mount supports up to 175 lb, covering the majority of commercial and outdoor-rated displays in this size range, with a wide VESA compatibility spanning 100x100mm up to 600x400mm to fit nearly any panel's mounting-hole pattern. IncreLok tilt technology adjusts from -5° to +20° in selectable positions, letting installers angle the display down toward seating or standing viewers below an overhead mount, and 360° swivel allows the display to be rotated to face any direction under the ceiling structure. Stainless steel hardware and a powder-coated corrosion-resistant finish are built specifically for wind-protected outdoor locations — covered patios, porches, and similar overhangs — rather than fully exposed, unsheltered installations. An extra 1-year corrosion warranty on top of the standard coverage reflects the mount's outdoor-specific construction standard. Because the ECMUA shares its VESA and weight specifications with common outdoor display models, it pairs directly with Peerless-AV's Xtreme High Bright series (XHB554, XHB653) as well as other outdoor-rated 43"-75" commercial displays, giving integrators a matched ceiling-mount solution for overhead outdoor digital signage and entertainment display installs.

What are the key features of the Peerless-AV ECMUA?

• 43" to 75" display compatibility — Supports up to 175 lb across the standard outdoor commercial display size range.
• Corrosion-resistant construction — Stainless steel hardware and powder-coated finish rated for wind-protected outdoor exposure.
• -5° to +20° tilt — Selectable IncreLok tilt positions angle the display toward viewers below.
• 360° swivel — Rotates the display to face any direction under an overhead structure.
• Concealed cable routing — Cabling runs through the center of the adjustable extension column for a clean install.
• Wide VESA compatibility — 100x100mm to 600x400mm covers most 43"-75" commercial and outdoor displays.
• 5-year warranty plus 1-year corrosion coverage — Extended protection specific to outdoor deployment.

Where is the Peerless-AV ECMUA typically used?

• Covered restaurant and QSR patios
• Outdoor bars and hospitality overhangs
• Poolside and resort covered common areas
• Stadium and venue covered concourse areas

Technical Specifications

Frequently Asked Questions

Is the ECMUA rated for fully exposed outdoor installation?
It's built for wind-protected outdoor locations such as covered patios and porches with corrosion-resistant hardware; confirm exposure requirements with Creation Networks for fully unsheltered installations.

What displays is the ECMUA designed to work with?
It's built to pair with Peerless-AV's Xtreme High Bright outdoor displays (XHB554, XHB653) as well as other 43"-75" commercial and outdoor displays within its 100x100mm to 600x400mm VESA range.

Can the display angle be adjusted after installation?
Yes, the IncreLok tilt system offers selectable positions from -5° to +20°, and the mount swivels a full 360° to face any direction.

How is cabling routed on the ECMUA?
Cabling runs through the center of the adjustable extension column, keeping wiring concealed and protected from weather exposure.

What's the warranty on the ECMUA?
A 5-year limited warranty plus an additional 1-year corrosion warranty specific to the outdoor-rated hardware and finish.

Does the ECMUA work with Peerless-AV's other outdoor mounting products for a consistent install standard?
Yes, it shares the same IncreLok tilt technology and outdoor-rated construction as Peerless-AV's other outdoor wall and ceiling mounts.

Can Creation Networks handle the structural assessment and installation?
Yes. Creation Networks evaluates ceiling and soffit structural capacity and provides full installation and commissioning for outdoor ceiling-mounted display projects nationwide.
