Peerless-AV WSP425 – Double Metal Stud Wall Plate, 16" Centers
WSP425 – Peerless-AV Double Metal Stud Wall Plate with Electrical Knockouts, 16" Centers

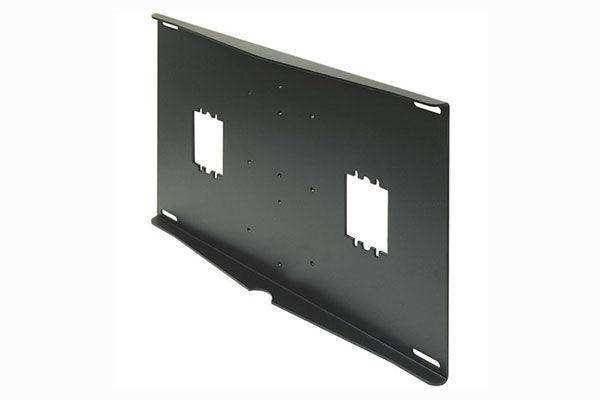

The WSP425 is a steel wall plate from Peerless-AV designed to span two metal studs at 16-inch centers, providing solid mounting support for TV wall mounts on metal stud, wood stud, and concrete block walls.
Product Description
Metal stud walls present a unique challenge for display mounting because the framing members are thinner and less rigid than wood studs, and standard wall mount plates may not align with both studs at once given standard 16-inch stud spacing. The WSP425 addresses this by spanning the full 16-inch center-to-center distance between metal studs, distributing the load across both framing members rather than relying on a single attachment point.
The plate is rated for use on 25-gauge or heavier metal studs, which covers the standard framing found in commercial drywall construction. In addition to metal stud walls, the WSP425 can also be used on wood studs, and its backup plate design makes it suitable for concrete block (cinder block) installations where it can be bolted through the wall for added structural support. Electrical knockouts are included to allow a conduit or wiring pass-through, which is useful in situations where cable routing behind the display needs to reach an in-wall electrical box.
Measuring 12.2 x 17.7 x 1.3 inches and weighing approximately 9.90 lb, the WSP425 is compatible with most Peerless-AV single wall arms. It is manufactured in the United States and carries a 5-year limited warranty.
Key Features
- Spans 16-inch center-to-center metal stud spacing to distribute display mount load across two studs.
- Rated for use on 25-gauge or heavier metal stud framing as found in commercial drywall construction.
- Can also be installed on wood studs for installations where framing type varies across a project.
- Backup plate design supports concrete block installations by bolting through the wall from the opposite side.
- Electrical knockouts included to allow cable or conduit routing through the plate during installation.
- Compatible with most Peerless-AV single wall arm mount models for consistent system integration.
- Manufactured in the United States with a 5-year limited warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | WSP425 |
| Stud Spacing | 16" Centers |
| Minimum Stud Gauge | 25-gauge metal |
| Compatible Wall Types | Metal Stud, Wood Stud, Concrete Block |
| Electrical Knockouts | Yes |
| Height | 12.2" |
| Width | 17.7" |
| Depth | 1.3" |
| Weight | 9.90 lb |
| Country of Origin | United States |
| Warranty | 5-Year Limited |
| Brand | Peerless-AV |
| Price | $89.00 |
