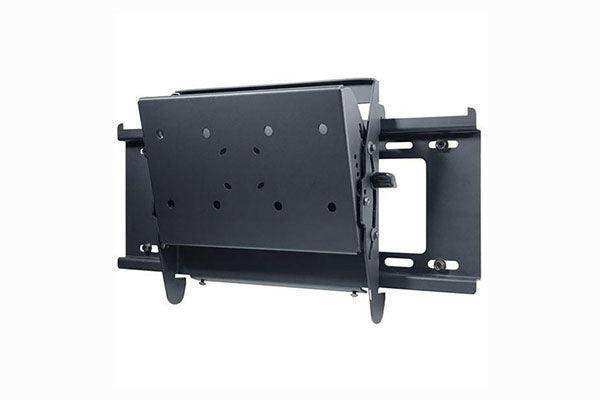

ST16D – Peerless-AV Display-Specific Tilt Wall Mount for up to 71" Displays
The Peerless-AV ST16D is a display-specific tilt wall mount for displays up to 71 inches, featuring tool-free tilt adjustment from +15° to -5°, up to 8 inches of horizontal positioning, and IncreLok fixed tilt locking in 5° increments.
Product Description
The ST16D is engineered for display-specific installations using Peerless-AV PLP or LC adapter plates, providing a tilt-adjustable wall mount platform that ships pre-assembled for fast deployment. The Easy-Glide design ensures the display attaches securely to the wall plate on the first attempt, eliminating alignment trial-and-error during installation — a practical advantage when working at height or in tight spaces.
Tilt adjustment of +15° to -5° is achieved without tools, allowing the installer or end user to fine-tune the viewing angle after the display is mounted. The IncreLok feature adds a fixed-locking option in 5-degree increments for installations where the tilt angle must remain consistent and tamper-resistant. Up to 8 inches of horizontal adjustment post-installation allows the display to be centered on the wall without moving the wall plate.
The ST16D ships with a 19.25-inch wide wall plate optimized for portrait-style installations — a configuration commonly specified for digital menu boards, way-finding signage, and vertical-format content displays. Wall plate knockouts provide access points for cable routing directly through the wall for a clean, cord-free finished appearance.
Key Features
- Easy-Glide design secures the display to the wall plate reliably on installation, reducing alignment time and on-site adjustments.
- Tool-free tilt adjustment from +15° forward to -5° backward provides flexible viewing angle optimization after mounting.
- IncreLok feature offers fixed tilt locking in 5° increments for installations requiring a consistent, tamper-resistant tilt angle.
- Up to 8 inches (203 mm) of horizontal display adjustment post-installation for precise centering without relocating the wall plate.
- Compatible with 16" (406 mm) stud centers via the included 19.25" wide wall plate, optimized for portrait-style display configurations.
- Accepts any display-specific PLP or LC adapter plate for compatibility across Peerless-AV's display-specific mounting ecosystem.
- Wall plate knockouts allow in-wall cable routing, supporting clean finished installations without visible cabling.
- Ships pre-assembled to reduce installation time on commercial and institutional projects.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | ST16D |
| Maximum Display Size | 71" |
| Tilt Range | +15° / -5° |
| Horizontal Adjustment | Up to 8" (203 mm) |
| Wall Plate Width | 19.25" (489 mm) |
| Stud Center Compatibility | 16" (406 mm) |
| Tilt Lock | IncreLok (5° increments) |
| Adapter Plate Compatibility | Peerless-AV PLP or LC series |
| Ships Pre-Assembled | Yes |
